Inspection Procedure 4

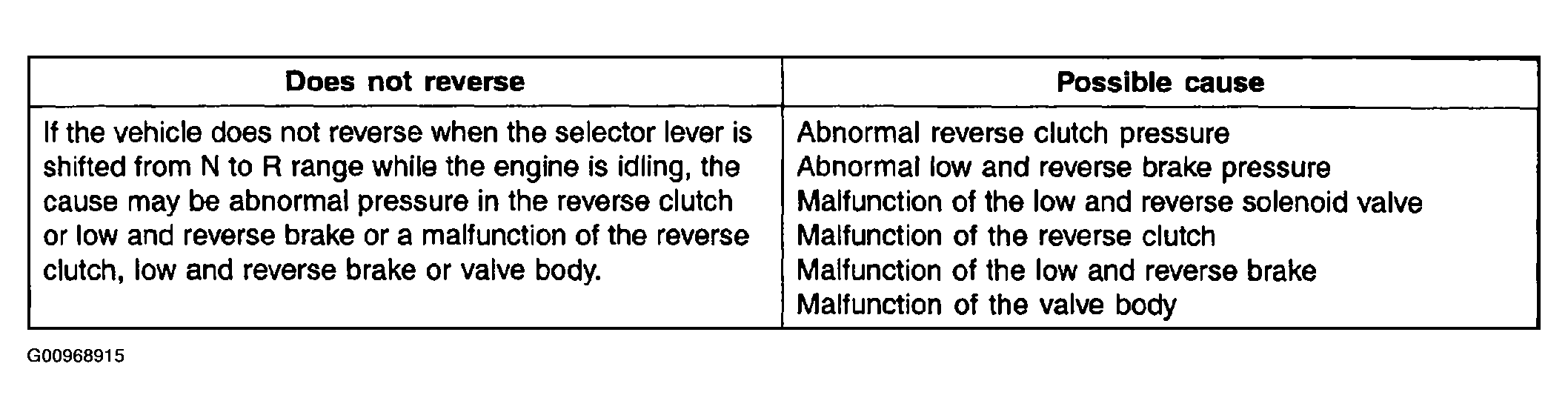

Fig 1: Vehicle Will Not Reverse Possible Causes Table
G00968915Courtesy of HYUNDAI MOTOR CO.

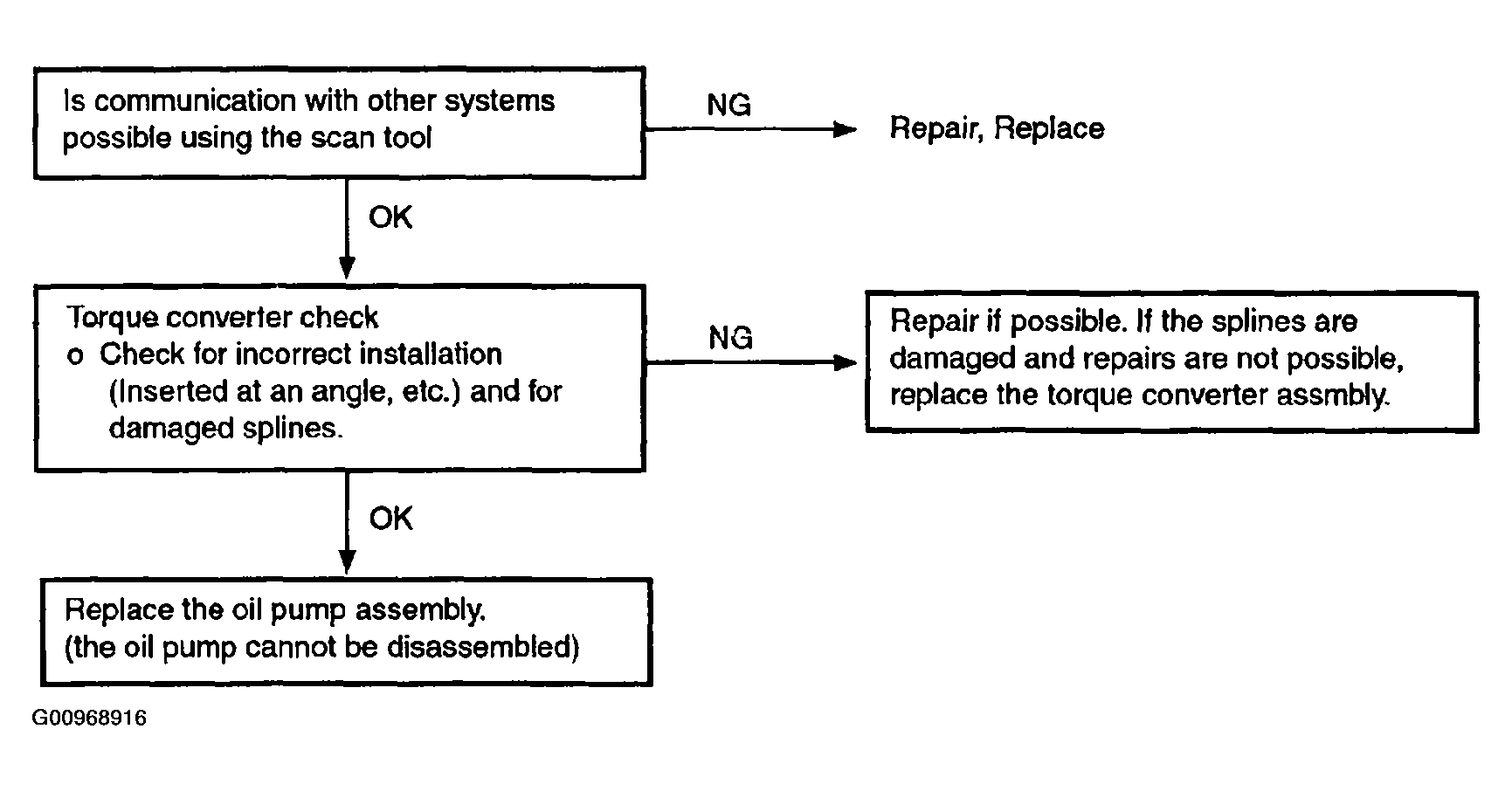

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
G00968916Courtesy of HYUNDAI MOTOR CO.
