DTC P0720: Output Shaft Sensor System

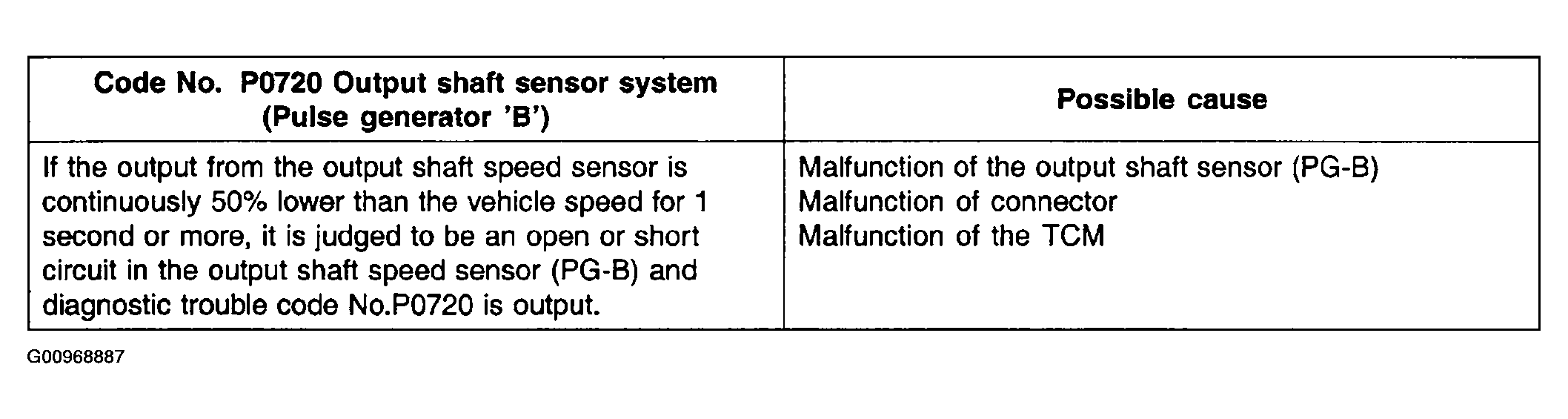

Fig 1: DTC P0720 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

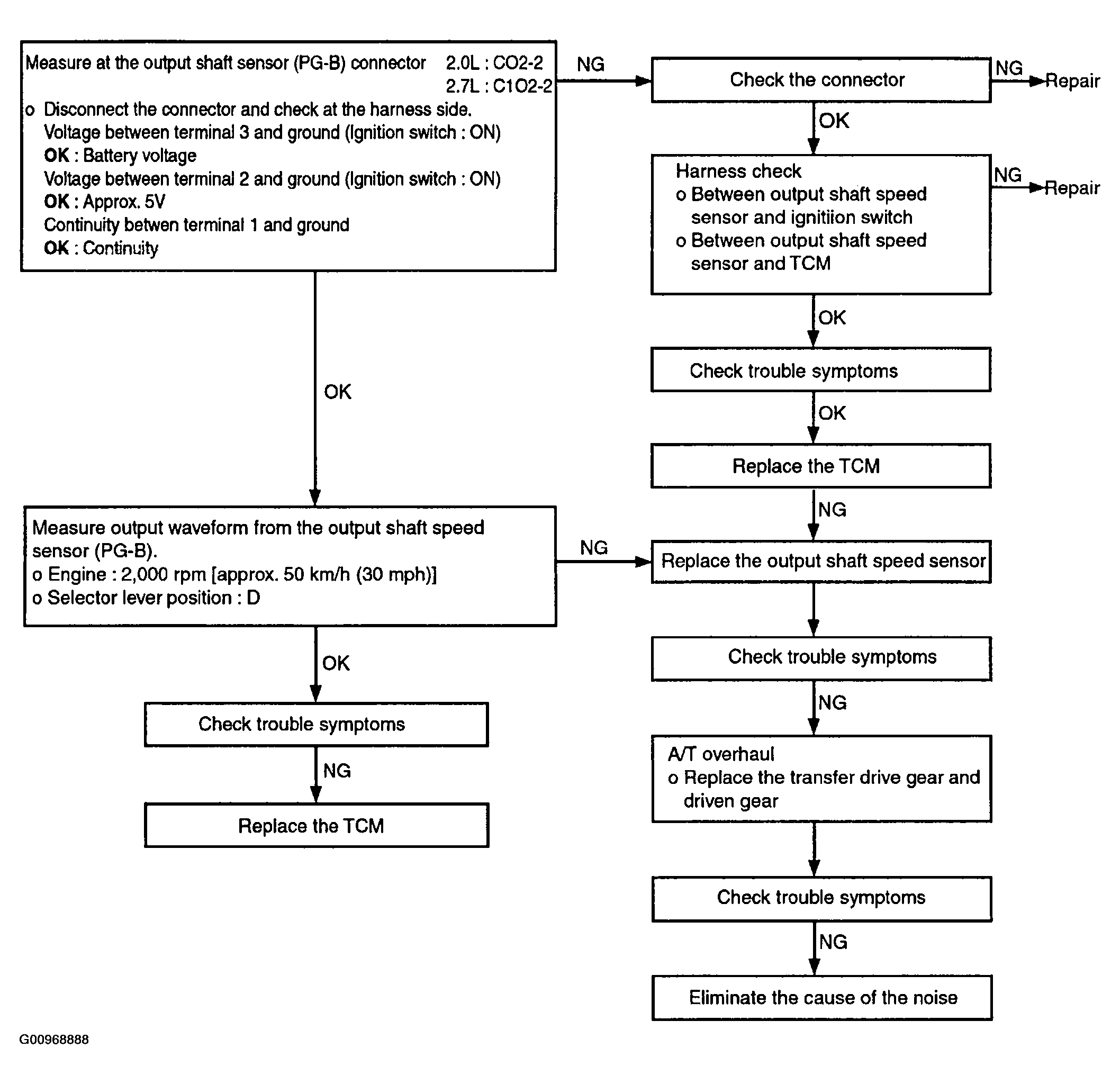

Fig 2: DTC P0720 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.

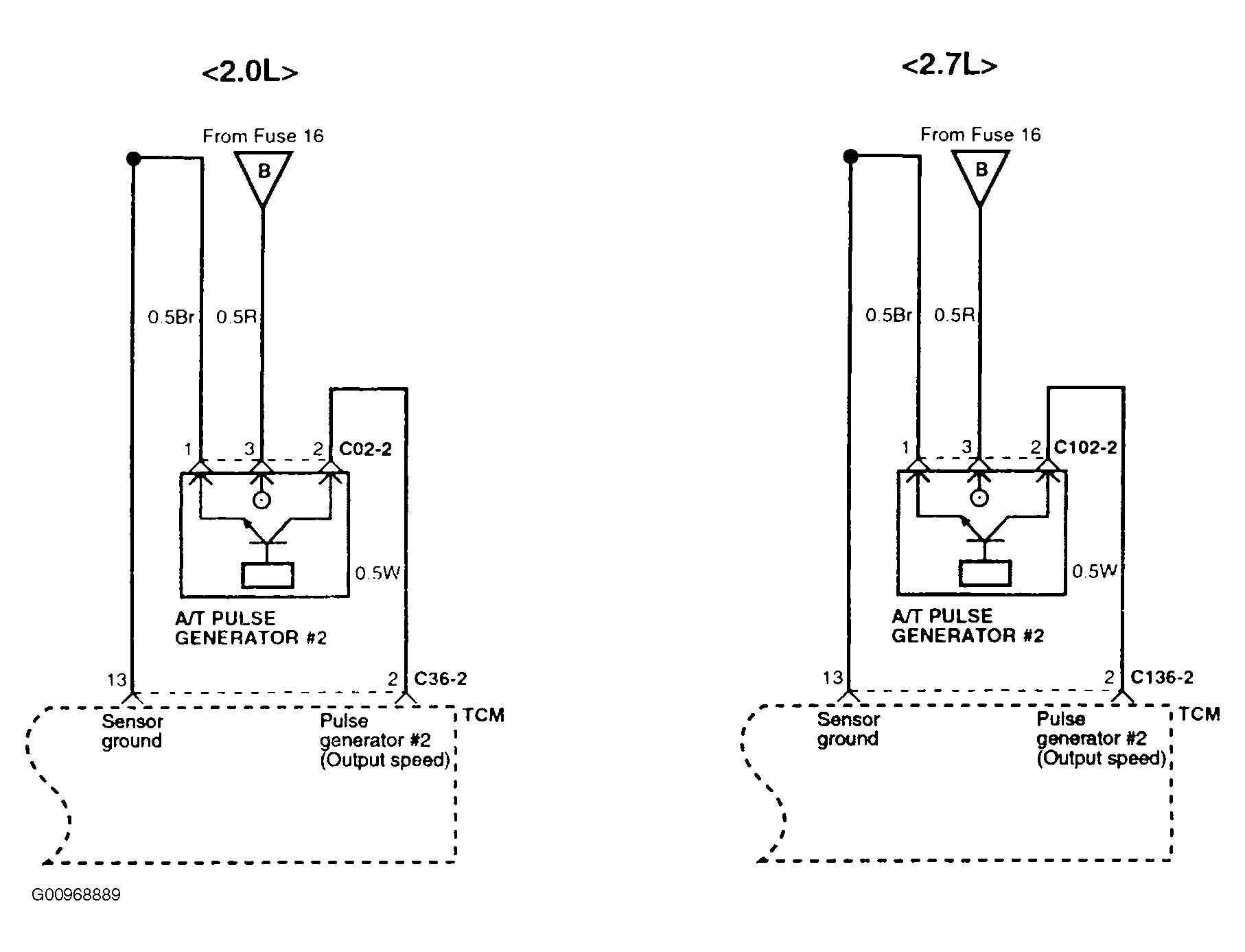

Fig 3: A/T Pulse Generator #2 Circuit
Courtesy of HYUNDAI MOTOR CO.
