Automatic Transaxle Hydraulic Circuit: Second

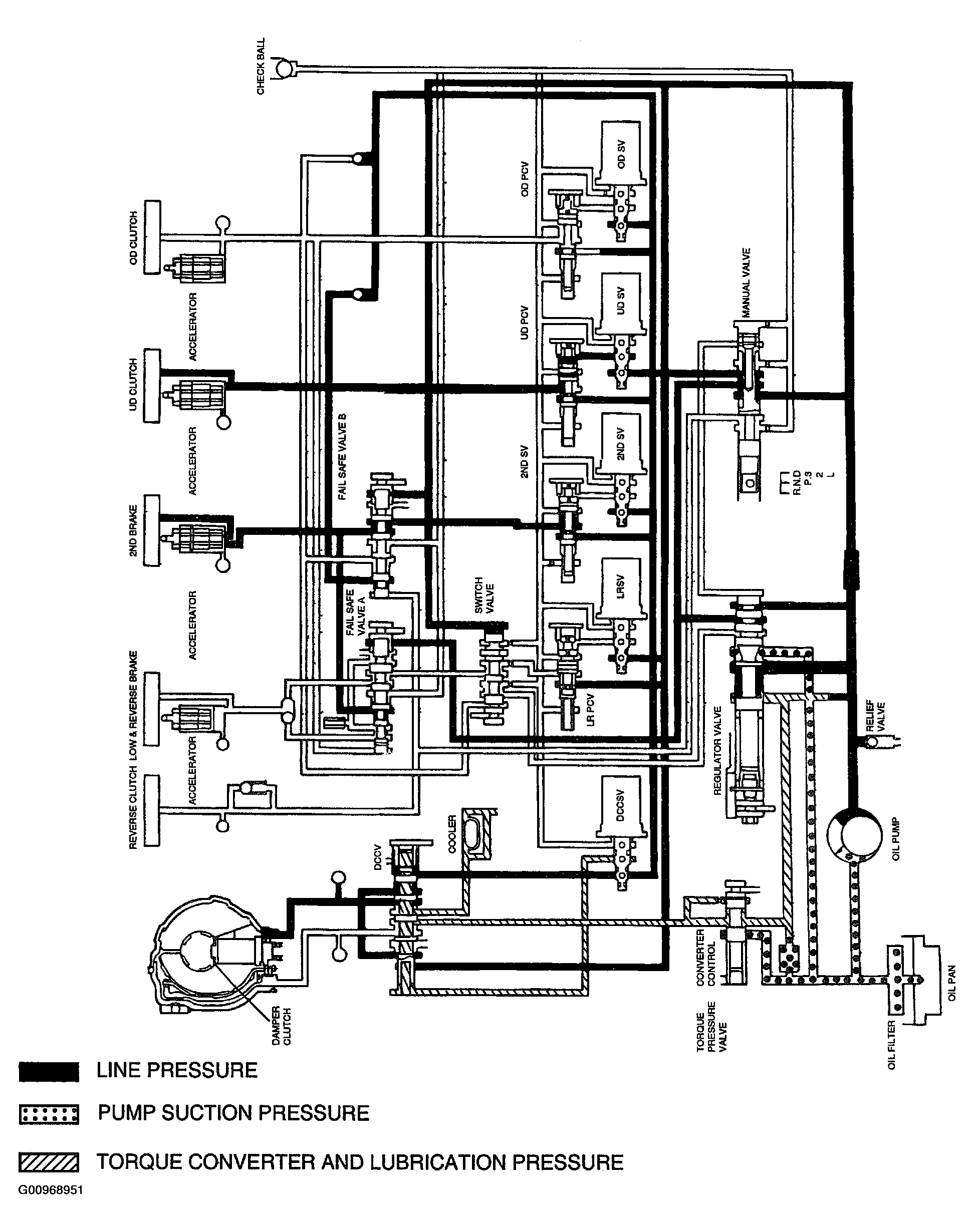

Fig 1: Identifying Hydraulic Circuit In Second Gear
G00968951Courtesy of HYUNDAI MOTOR CO.
