Fender: Service and Repair

Fender:

REMOVAL

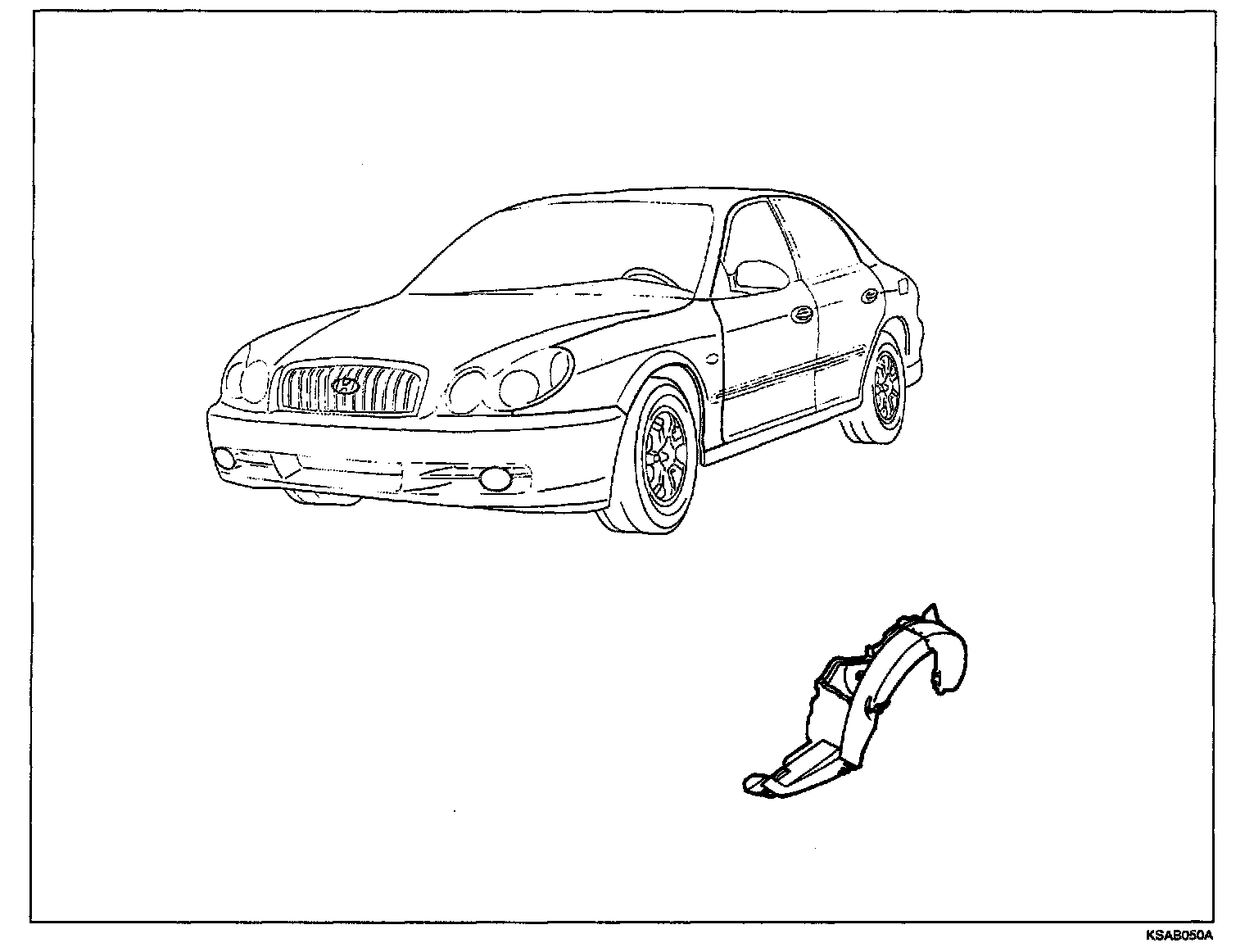

1. Remove the front wheel guard and mud guard.
2. Disconnect the head lamp and turn signal lamp wire connectors and remove the head lamp assembly.
3. Remove the front bumper.




4. Remove the fender mounting bolts.

CAUTION: Use care to avoid damaging the paint.

5. Installation is the reverse of removal.

NOTE: In order to prevent the fender mounting bolts area from forming rust, apply tape sealer between the fender and the body panel.
