Section 3 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Shift Lever
>>
Automatic Transaxle Control System
>>
Automatic Transaxle Shift Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transaxle Shift Control
WARNING:
This page is about a different variant/trim than selected.

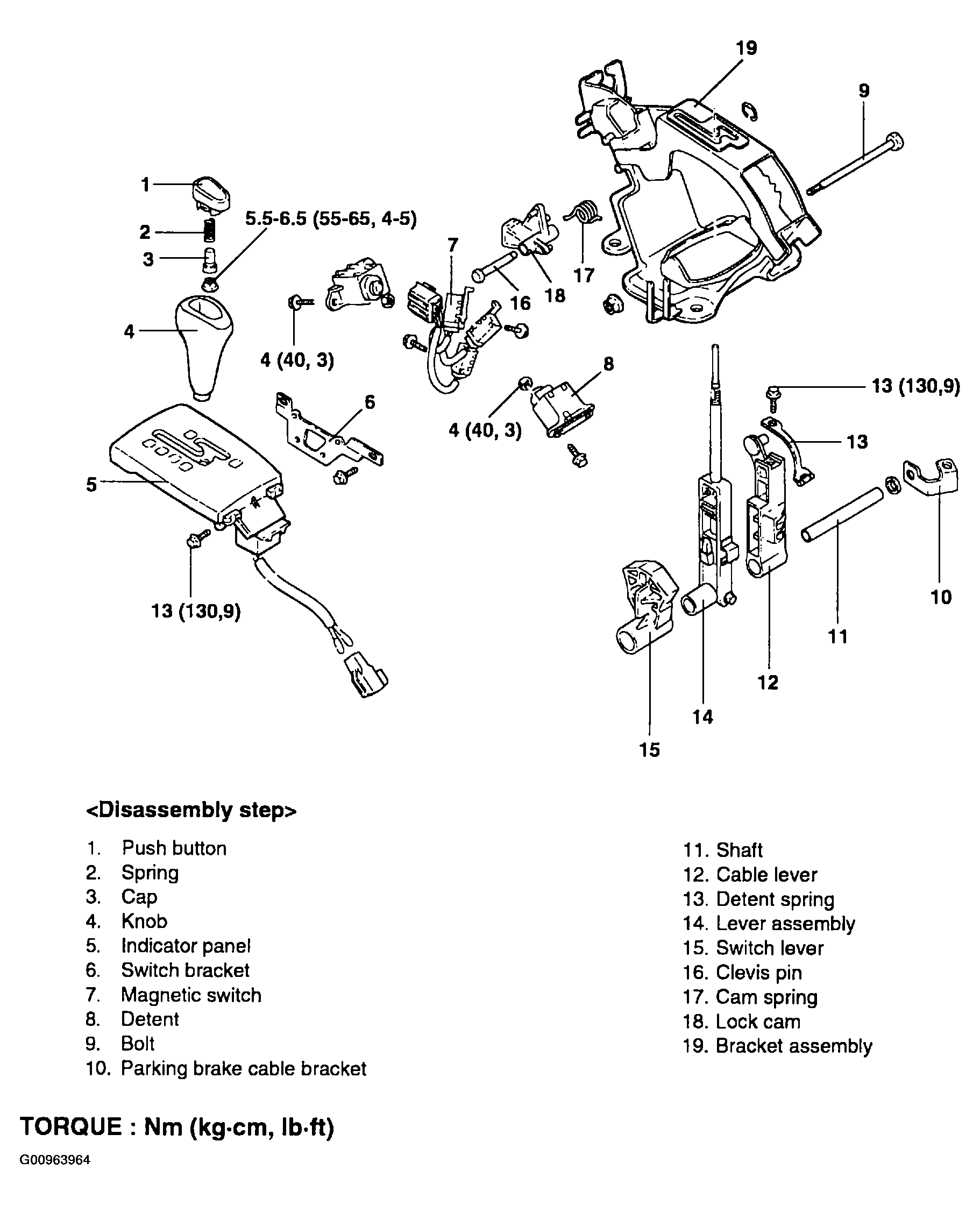

Fig 1: Automatic Transaxle Shift Control Components
Courtesy of HYUNDAI MOTOR CO.
