Inspection Chart For Diagnostic Trouble Codes (For 2.7L V6)

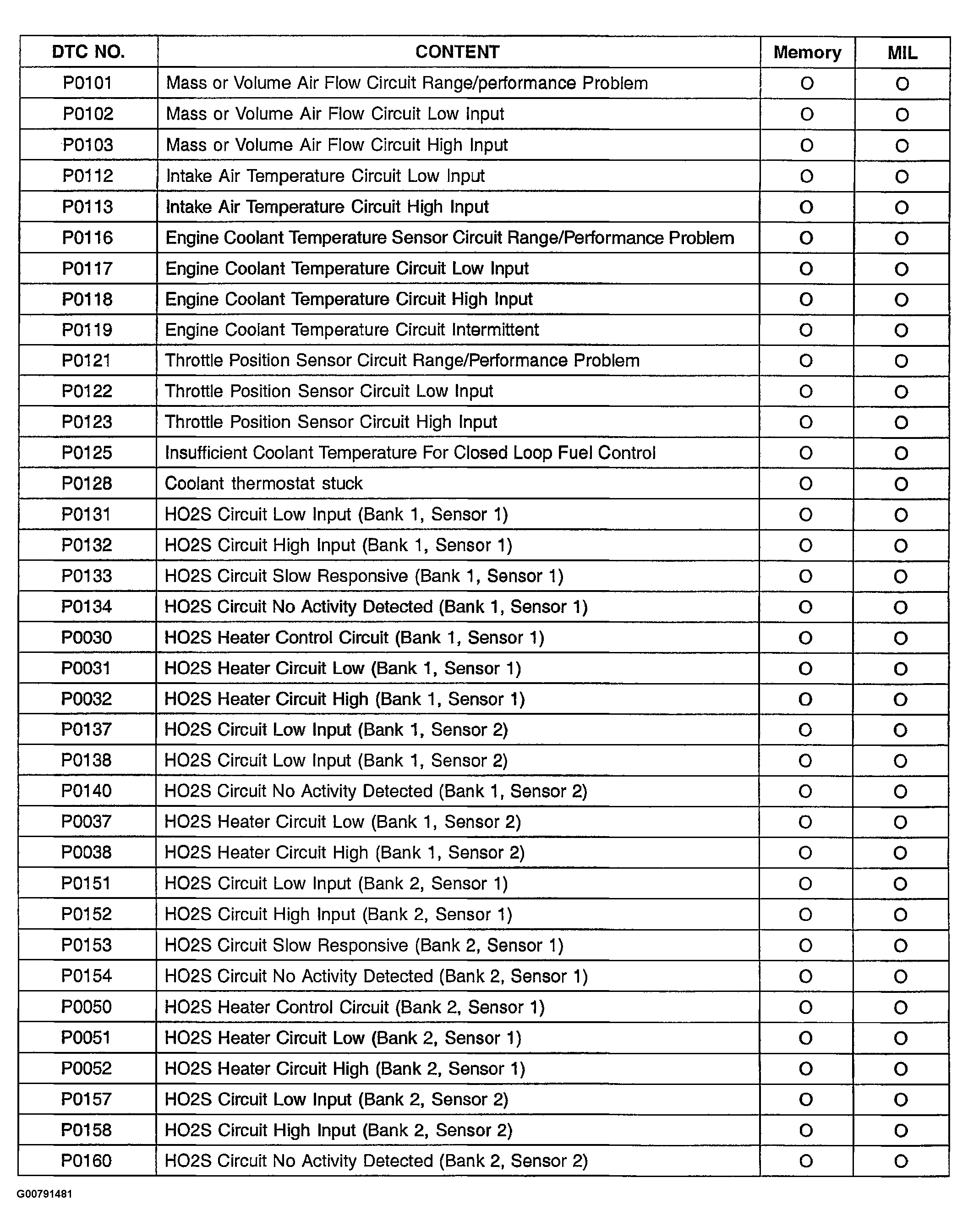

Fig 1: Inspection Chart For Diagnostic Trouble Codes (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

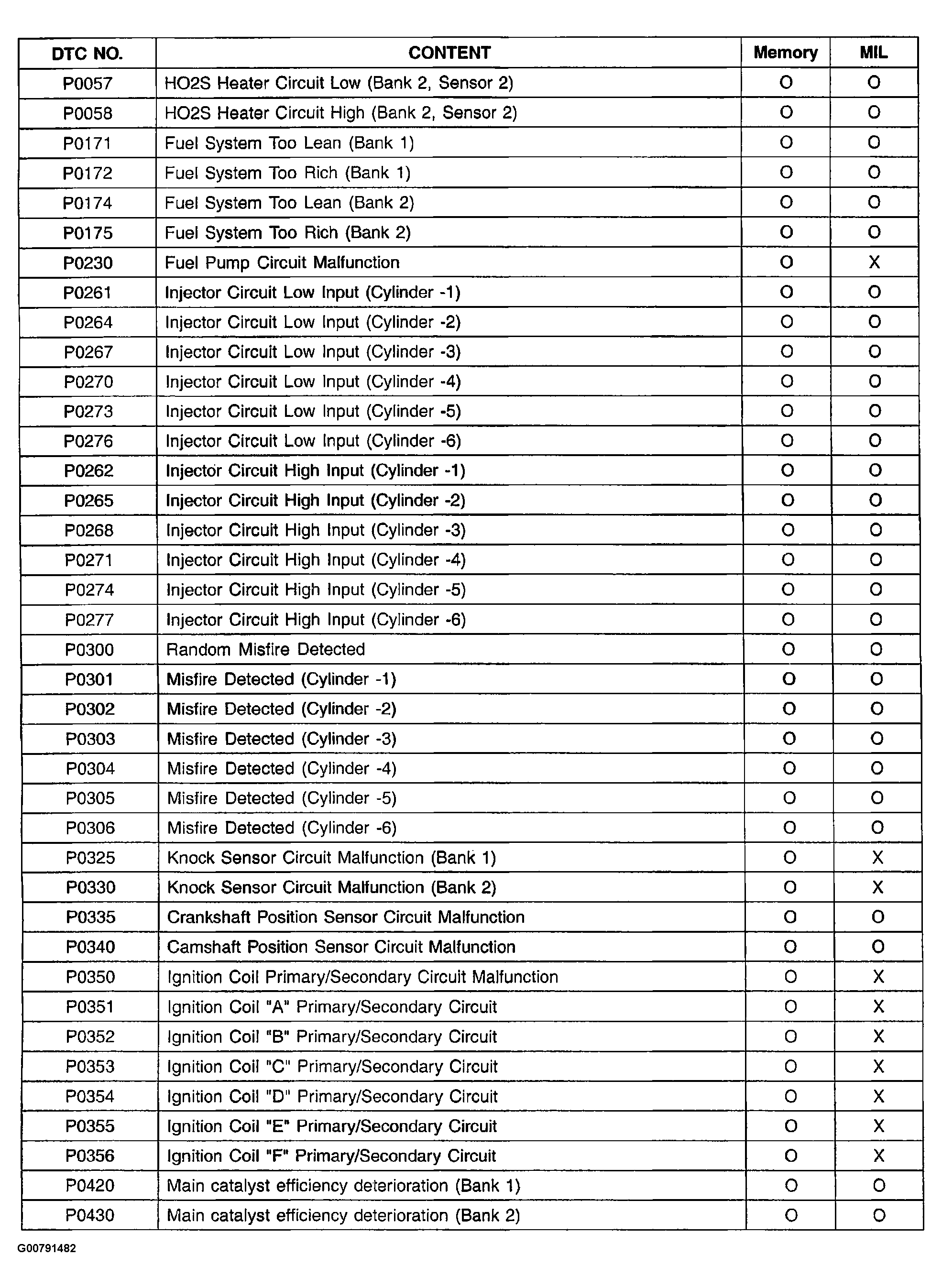

Fig 2: Inspection Chart For Diagnostic Trouble Codes (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

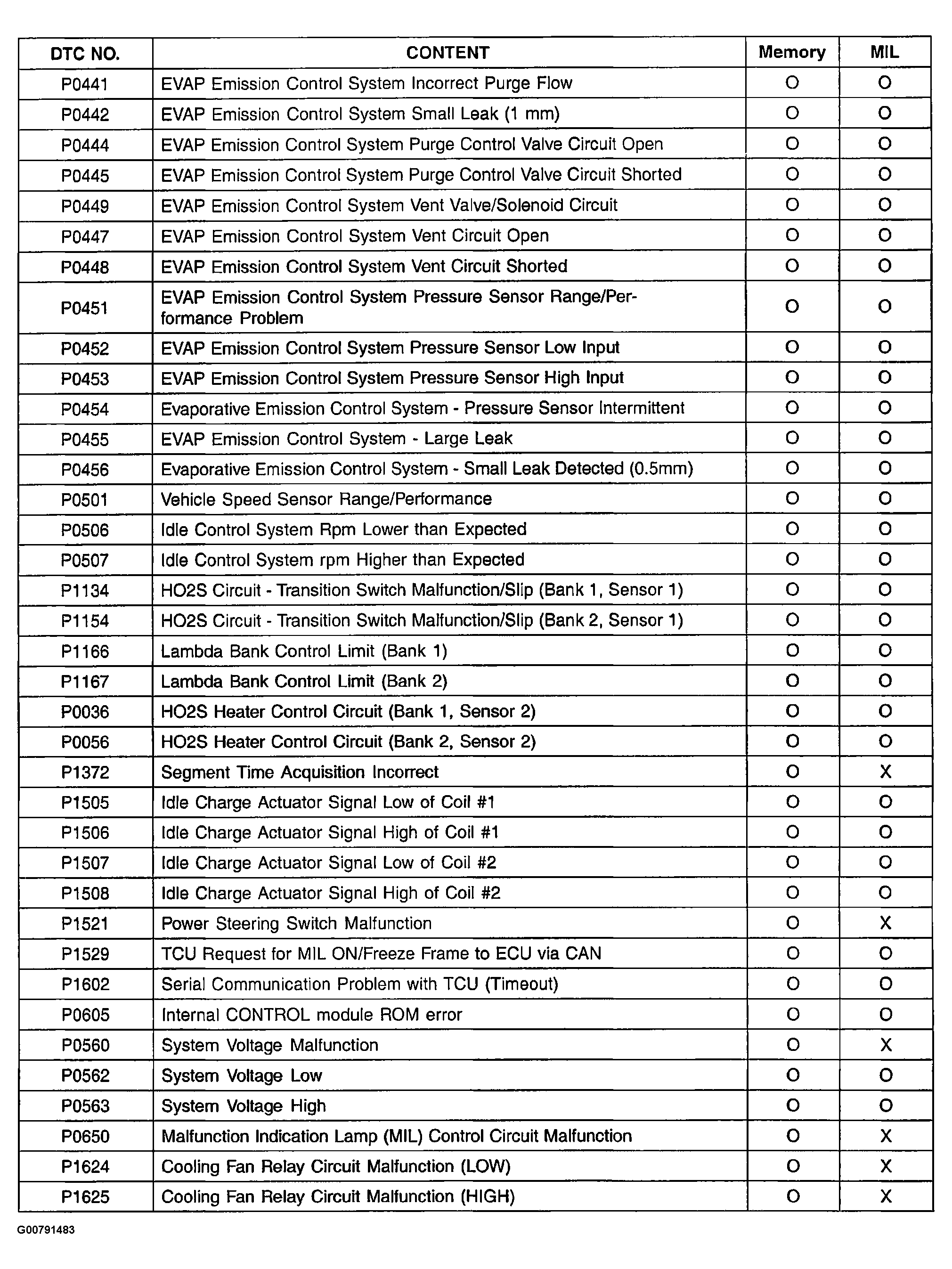

Fig 3: Inspection Chart For Diagnostic Trouble Codes (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
