Front Lower Arm: Components

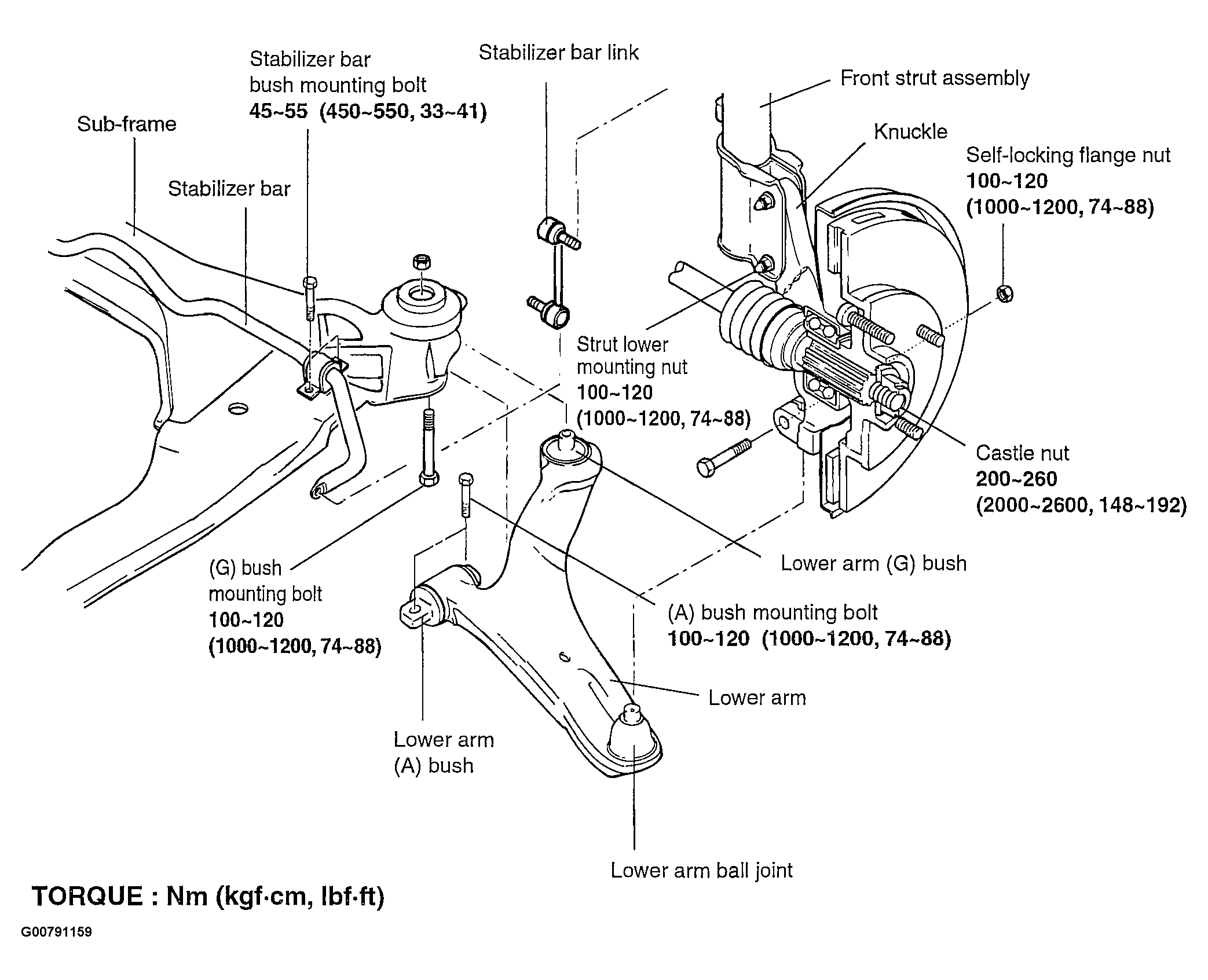

Fig 1: Front Lower Arm Components

G00791159

Courtesy of HYUNDAI MOTOR CO.
