Transaxle Mounting

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner. For additional information refer to AIR CLEANER (ACL) .
  2. Remove the transaxle mounting bolt.
  3. Remove the transaxle bracket.

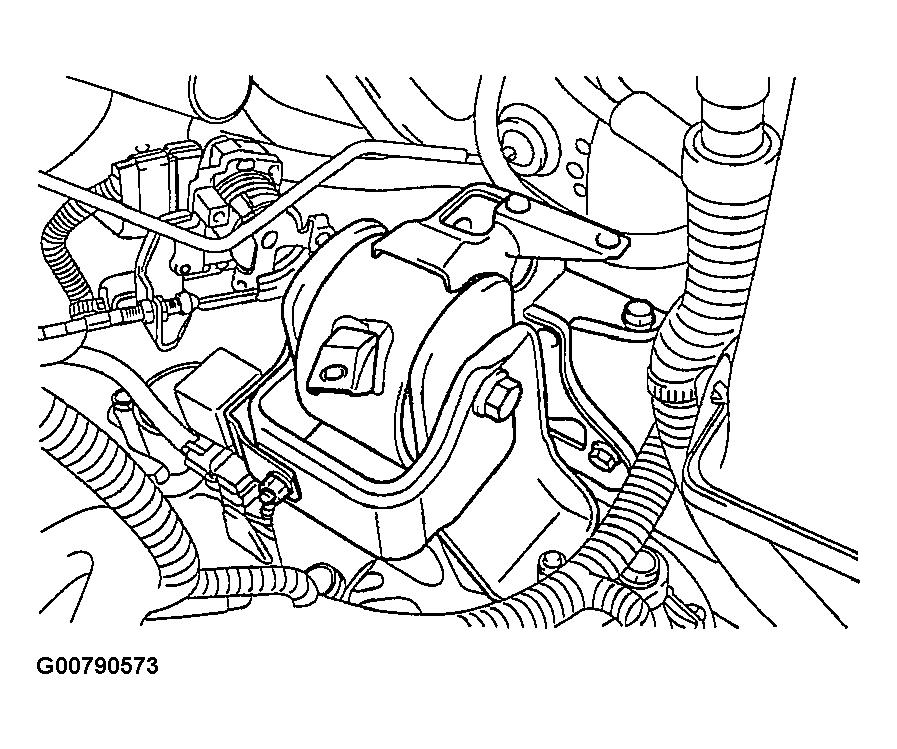

    Fig 1: Identifying Transaxle Bracket
    G00790573Courtesy of HYUNDAI MOTOR CO.
