Engine Mounts: Components

WARNING: This page is about a different variant/trim than selected.

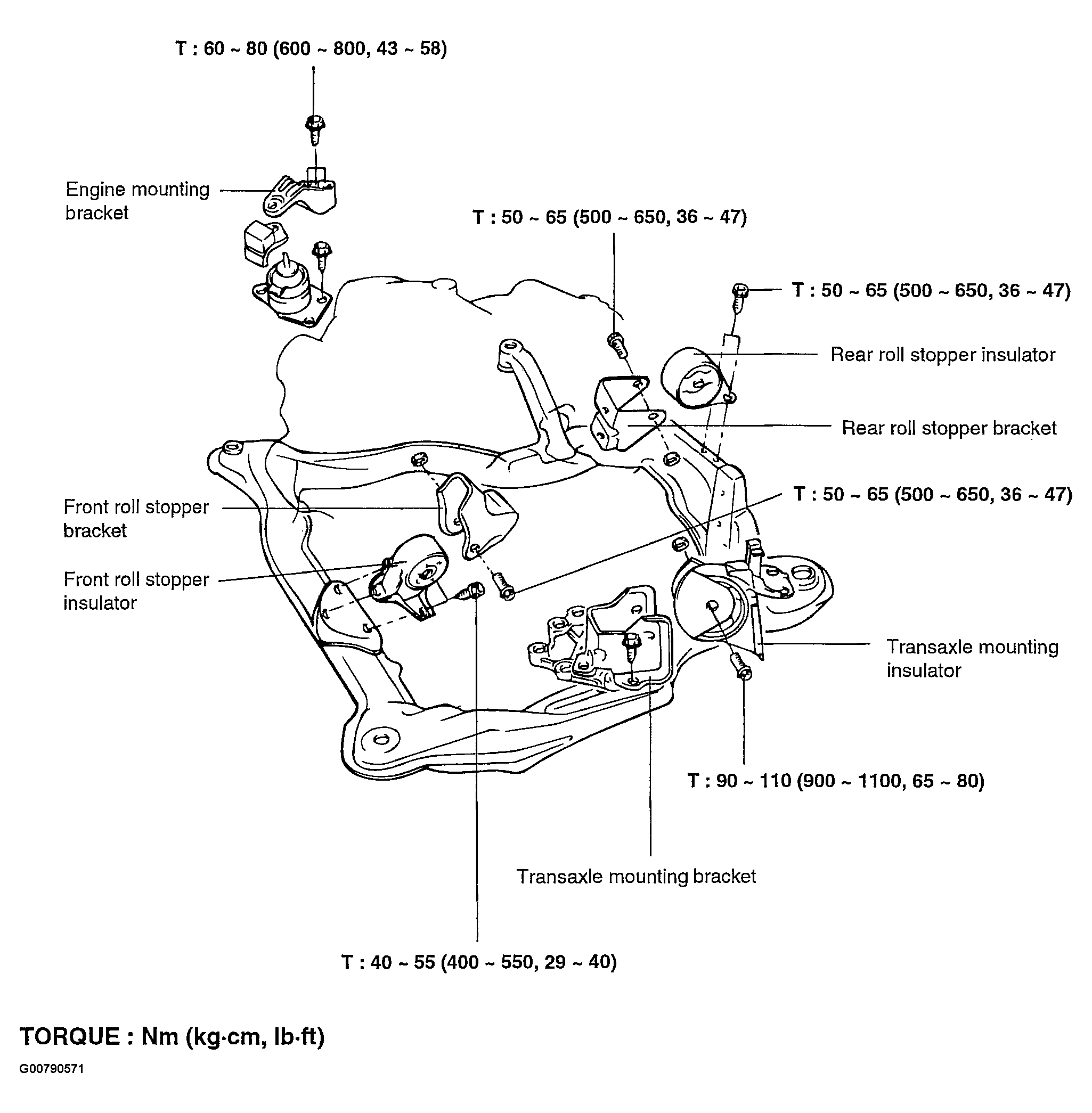

Fig 1: Engine Mount Components
G00790571Courtesy of HYUNDAI MOTOR CO.
