Special Tools

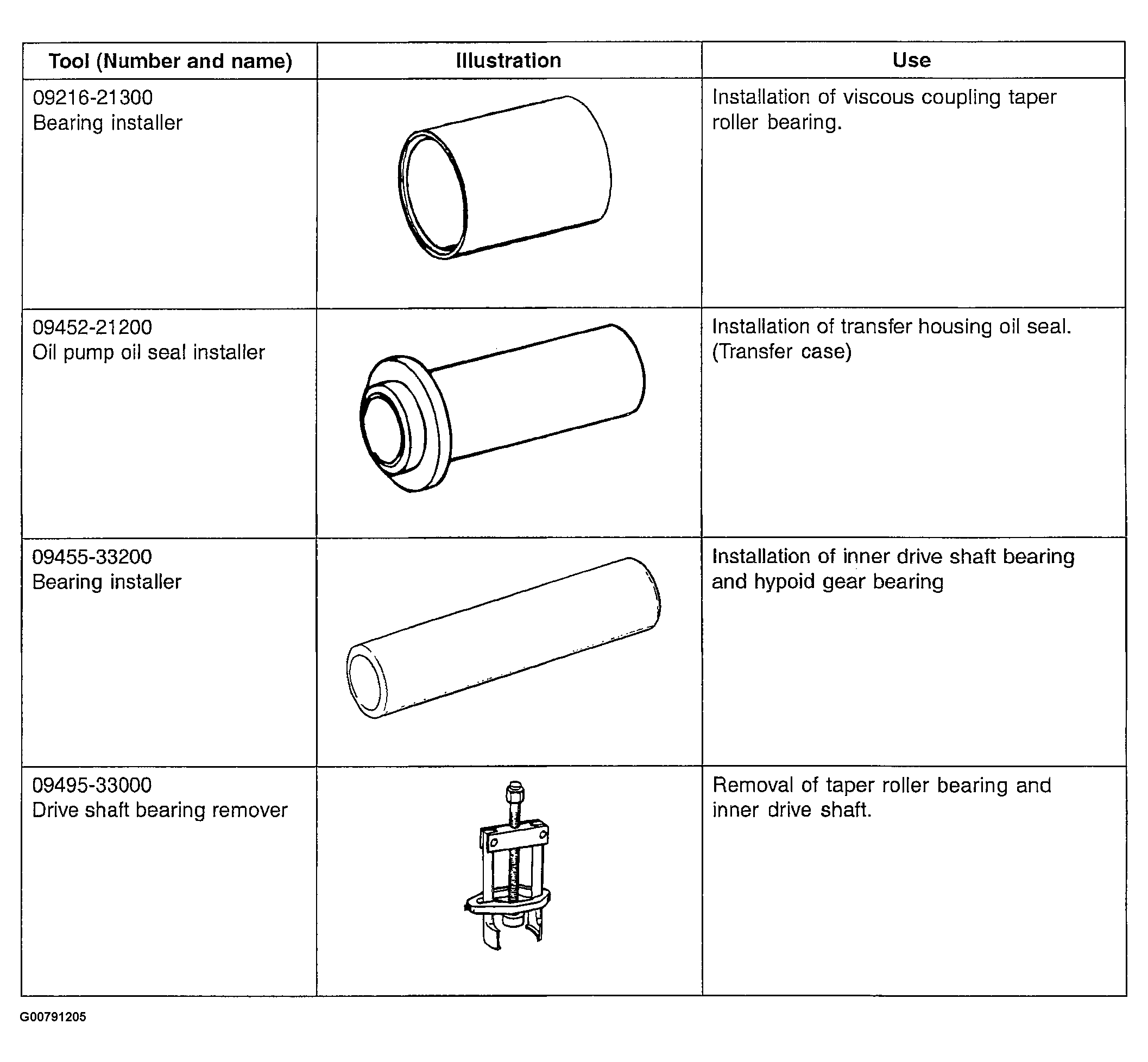

Fig 1: Special Tools
G00791205Courtesy of HYUNDAI MOTOR CO.

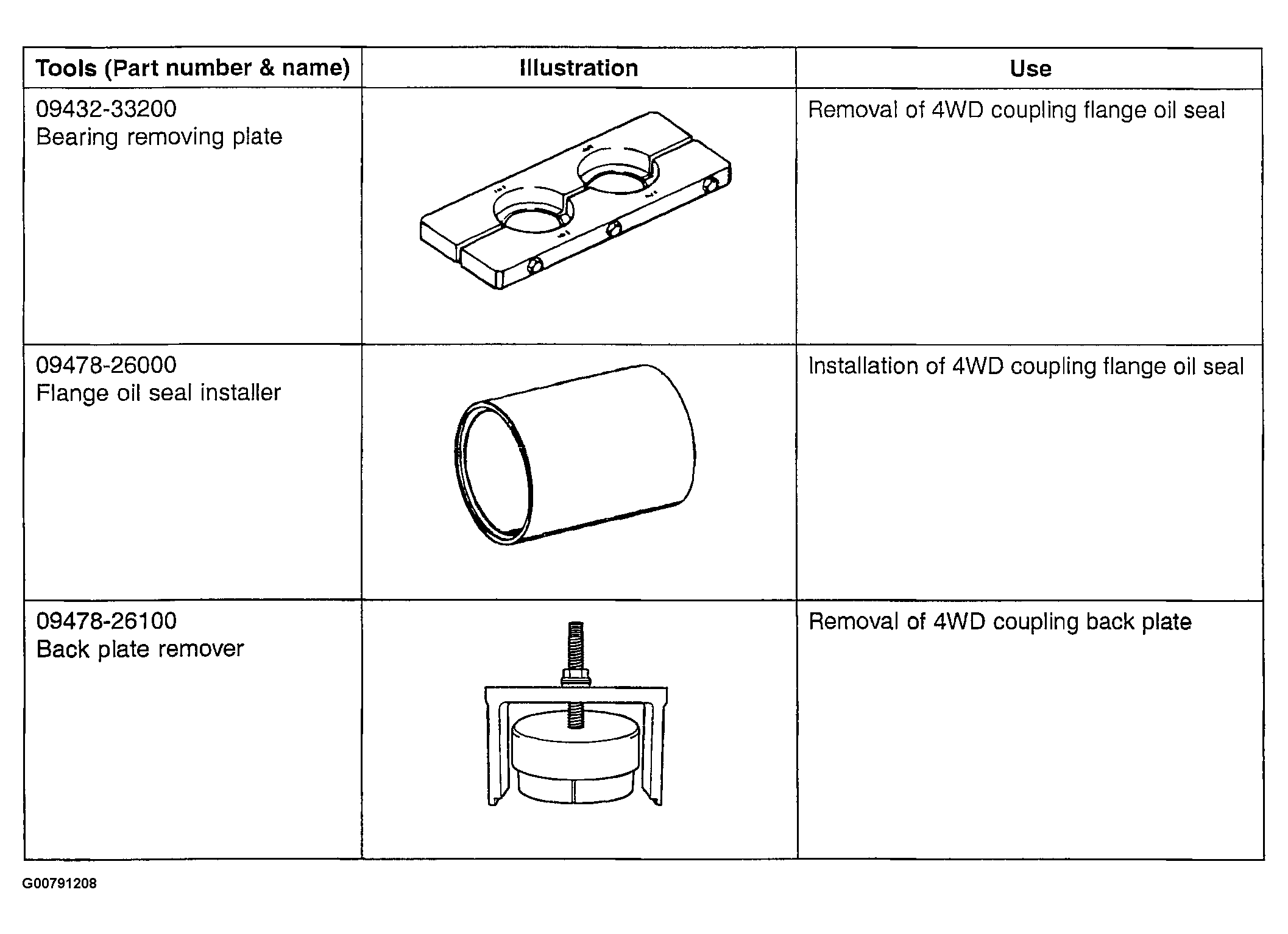

Fig 2: Coupling Special Tools
G00791208Courtesy of HYUNDAI MOTOR CO.
