Home >> Hyundai >> 2003 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle System >> Test Procedure >> Standard Hydraulic Pressure Test (5A/T)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Standard Hydraulic Pressure Test (5A/T)

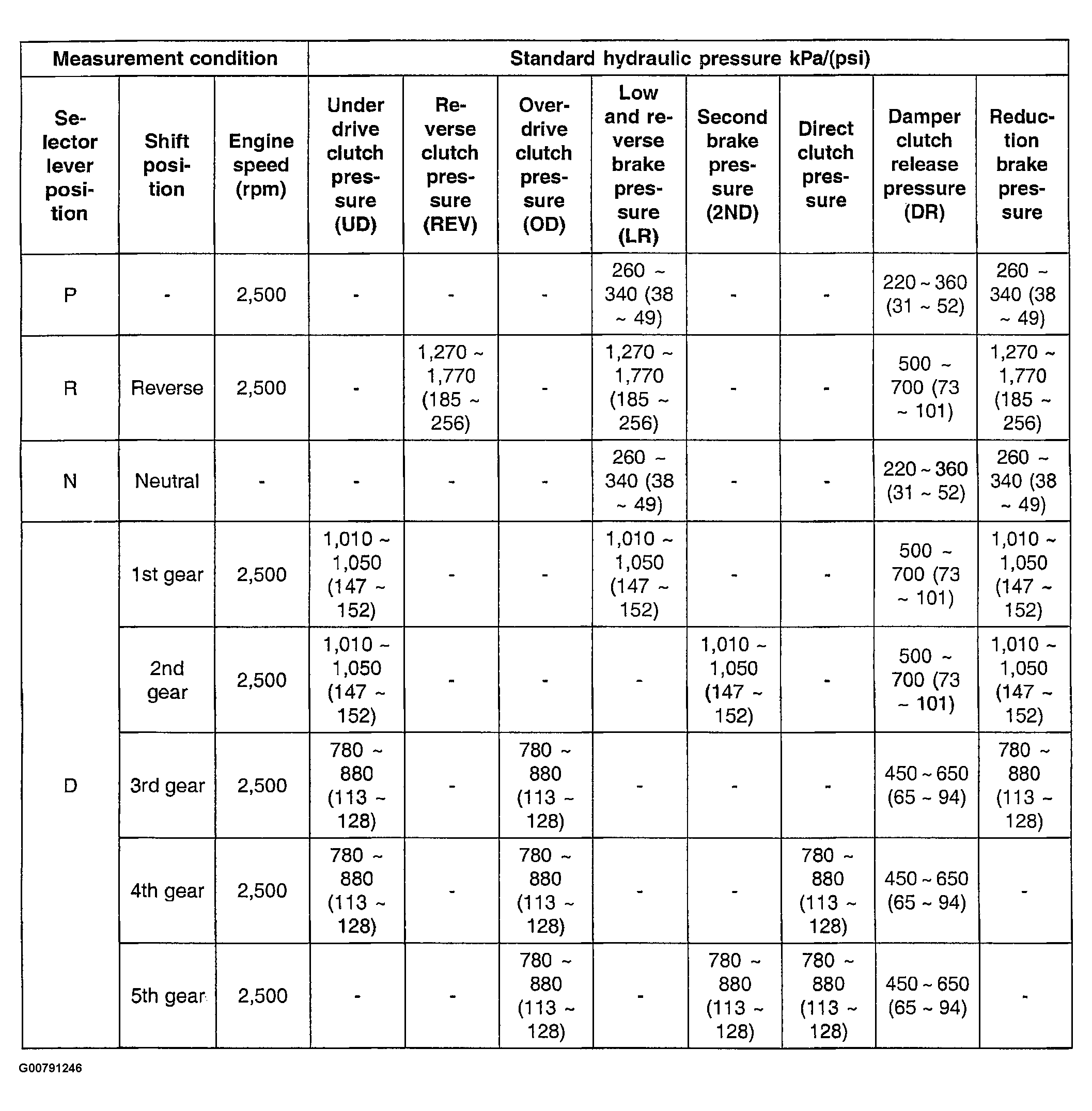

Fig 1: Standard Hydraulic Pressure Test (5A/T) Specification Table
G00791246Courtesy of HYUNDAI MOTOR CO.
