Inspection Of HECU Terminals

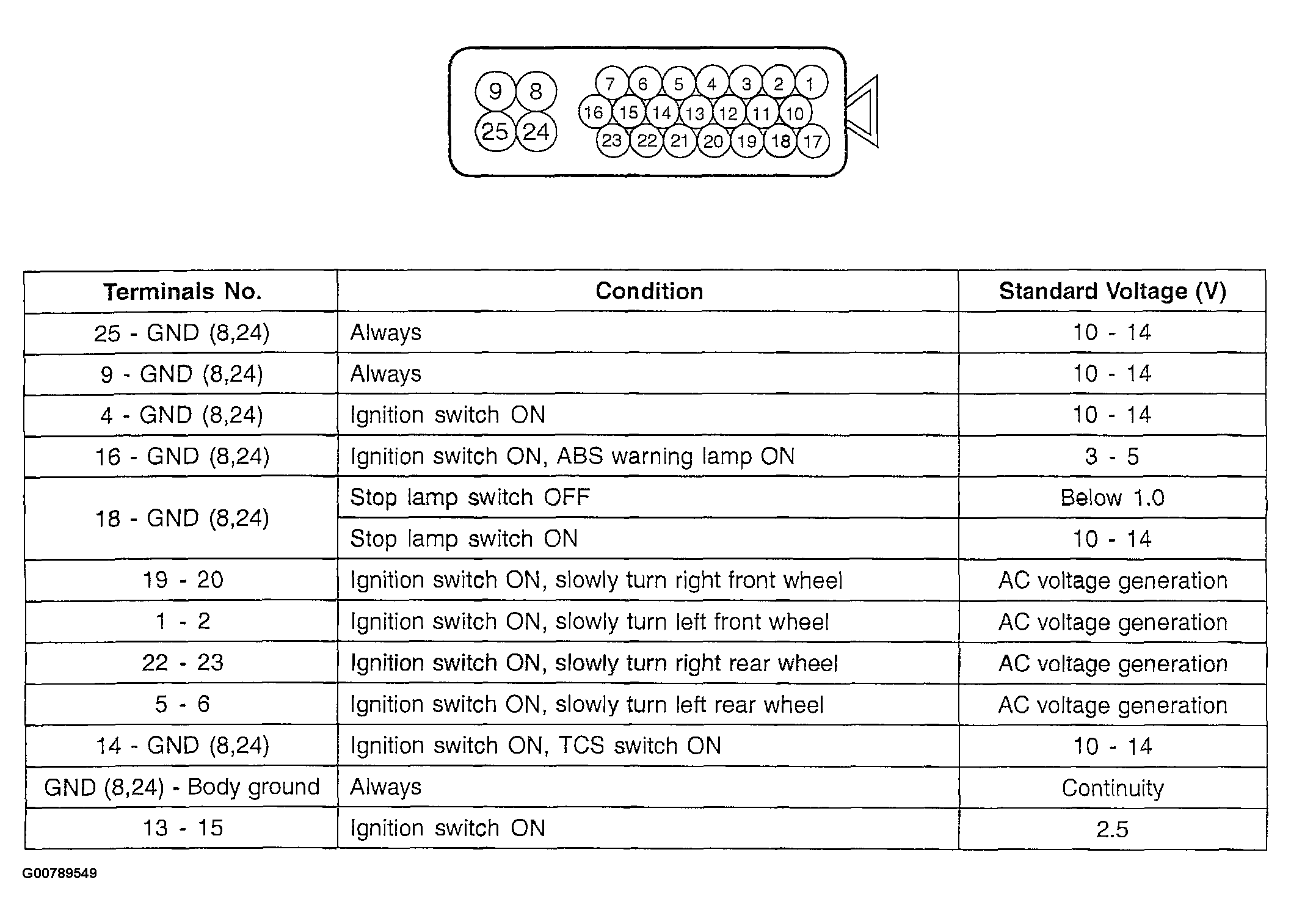

Fig 1: Identifying HECU Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
