Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Process For Diagnostic Trouble Codes
>>
DTC P1702-P1704: Throttle Position Sensor System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P1702-P1704: Throttle Position Sensor System
WARNING:
This page is about a different variant/trim than selected.

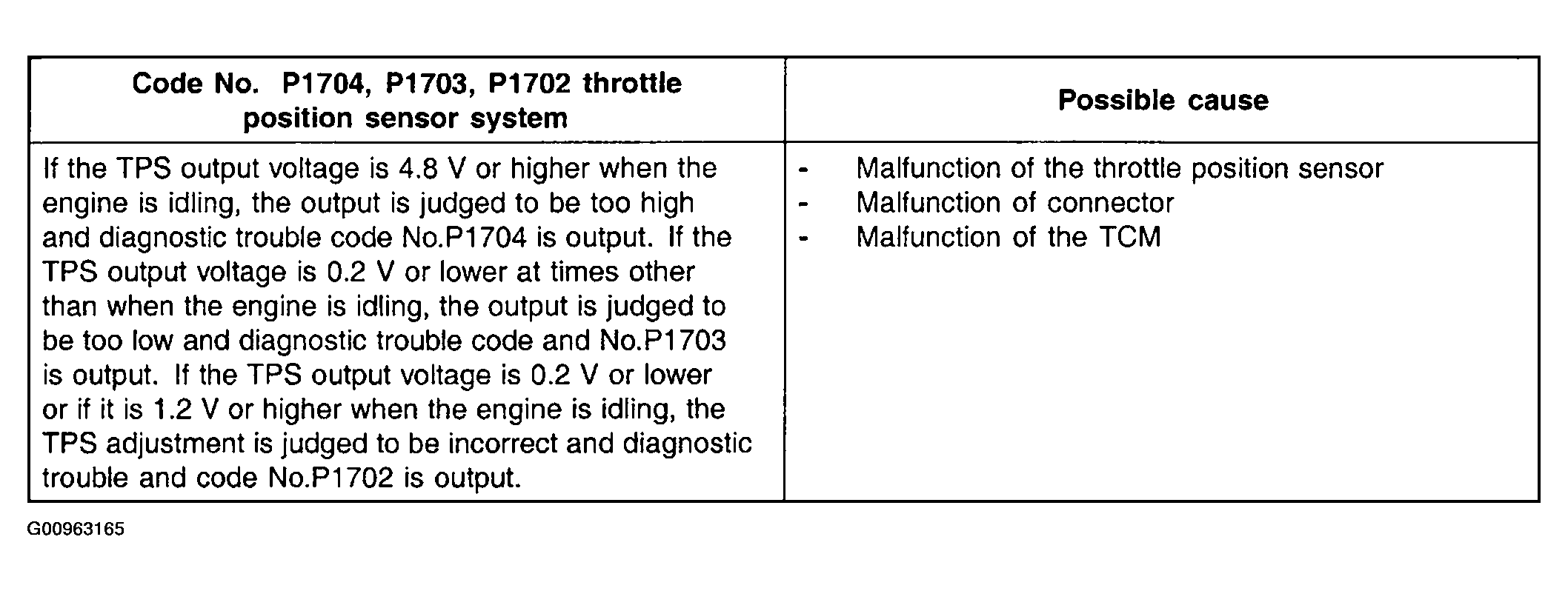

Fig 1: DTC P1702-P1704 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

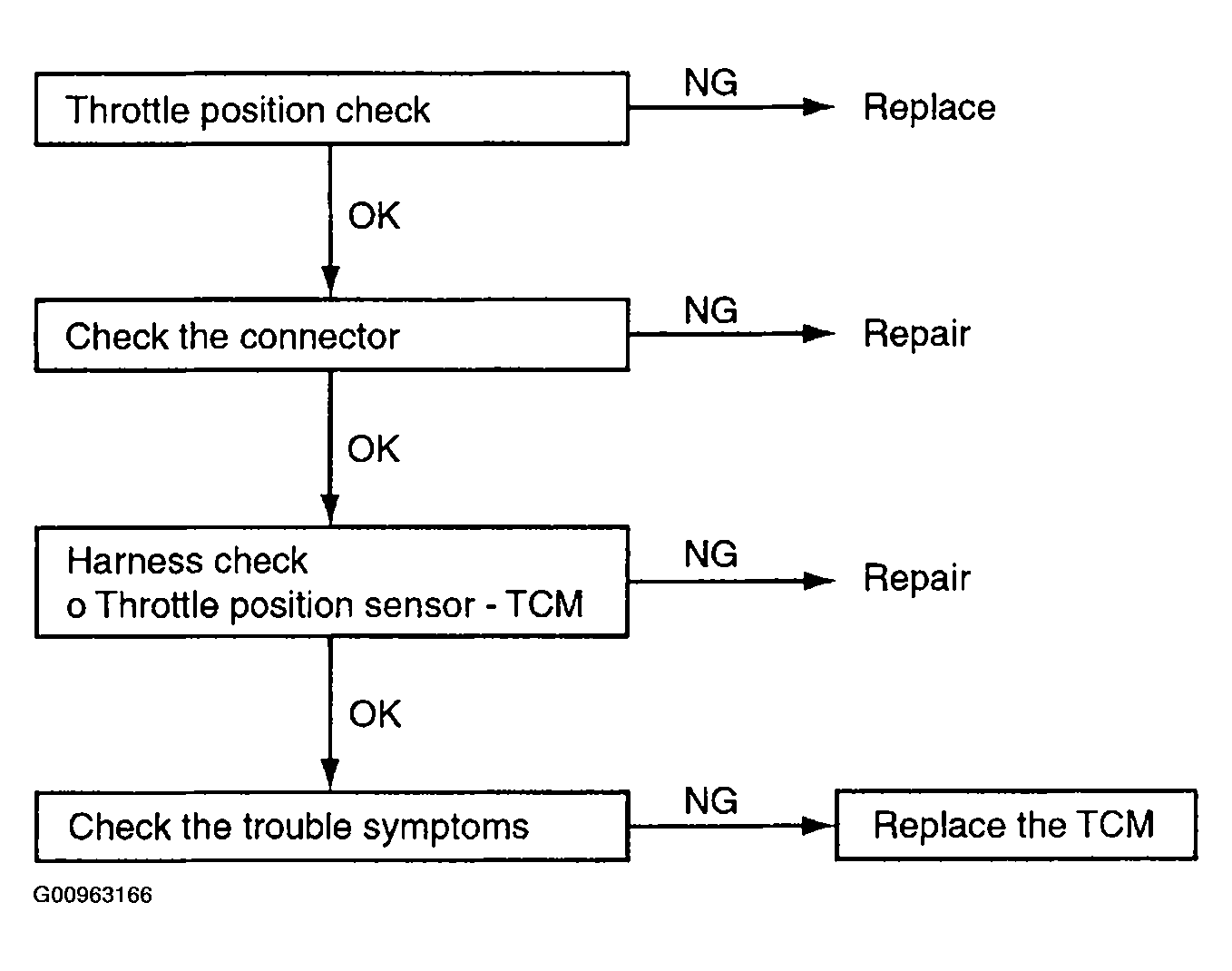

Fig 2: DTC P1702-P1704 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
