Control Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect HO2S and PCM connector.
  3. Ignition "ON" & Engine "OFF".
  4. Measure voltage between terminal 1 of the sensor harness connector and chassis ground.
  5. Measure voltage between terminal 2 of the sensor harness connector and chassis ground.
  6. Measure voltage between terminal 3 of the sensor harness connector and chassis ground.
  7. Measure voltage between terminal 4 of the sensor harness connector and chassis ground.

    Specification: Approx. 0V

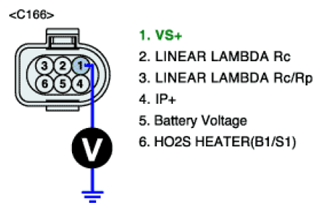

    Fig 1: Measuring Voltage Between Terminal 4 Of Sensor Harness Connector And Chassis Ground
    G07331012
  8. Is HO2S display near the specification?

    YES

    NO
