TACS Control Module Pin Connection

Fig 1: Identifying TACS Connector Terminals (1 Of 2)
G00961207Courtesy of HYUNDAI MOTOR CO.

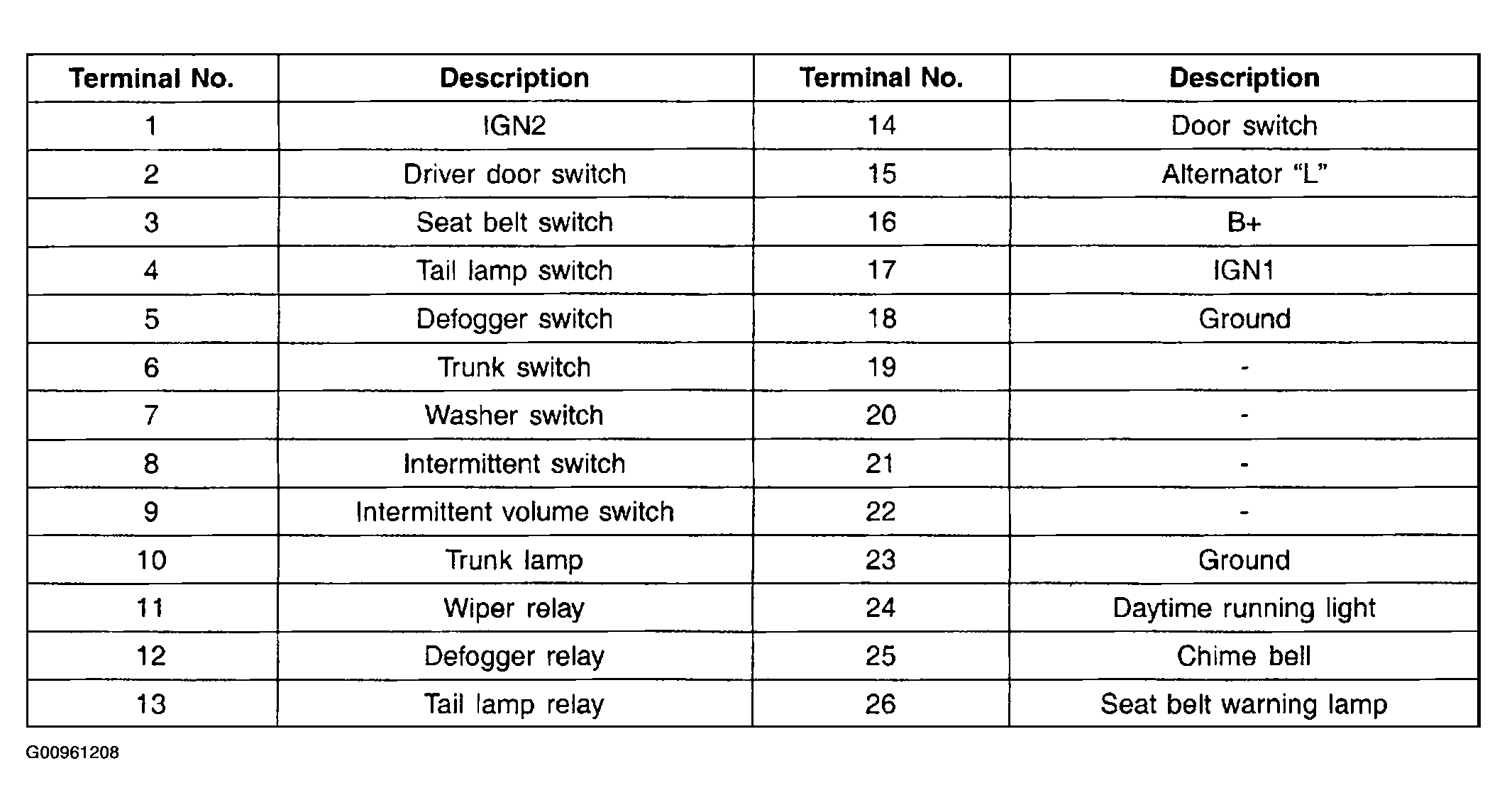

Fig 2: Identifying TACS Connector Terminals (2 Of 2)
G00961208Courtesy of HYUNDAI MOTOR CO.
