Power Steering Gear Box: Components

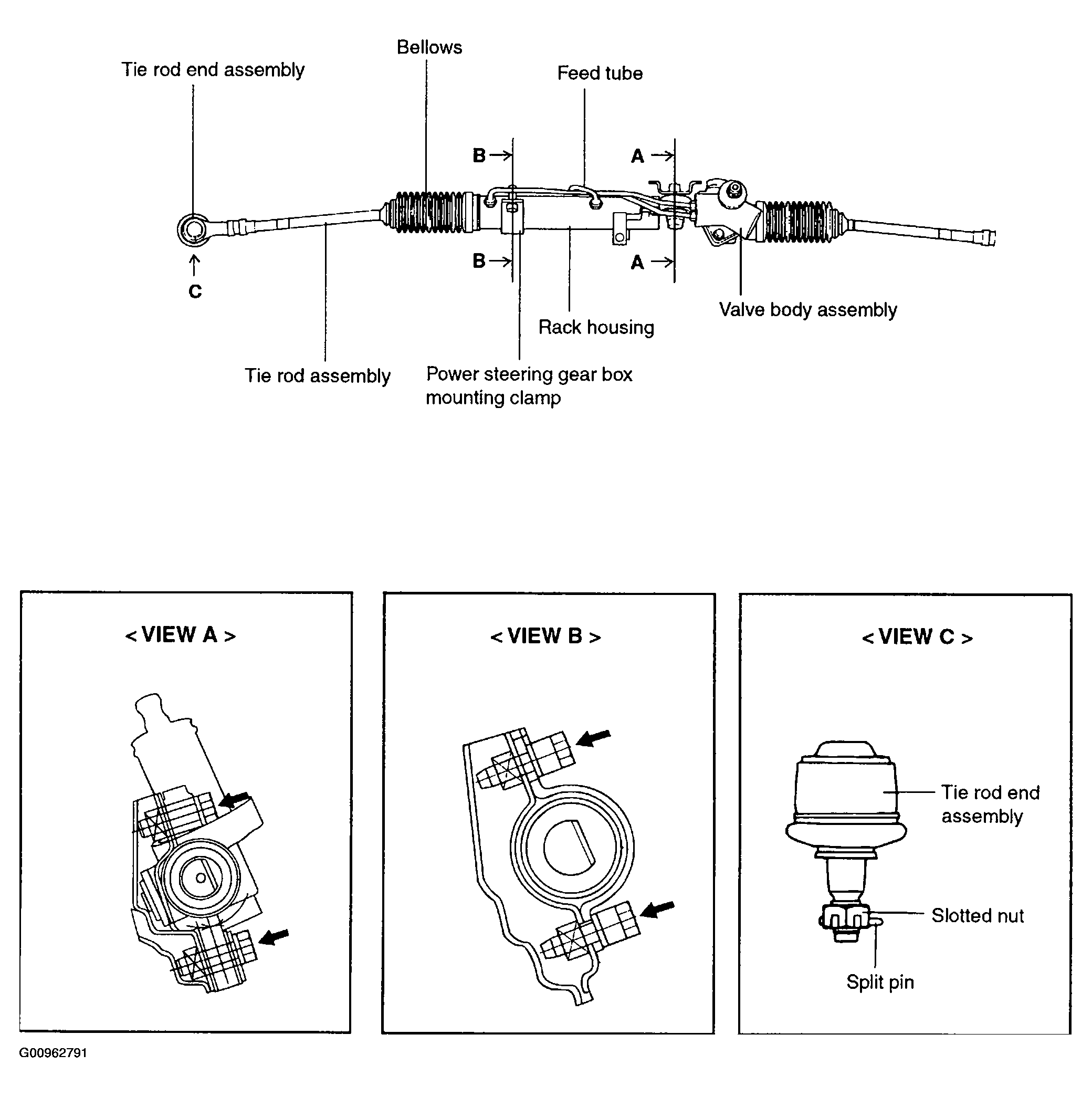

Fig 1: Power Steering Gear Box Components

G00962791

Courtesy of HYUNDAI MOTOR CO.
