System Specifications
FRONT SUSPENSION SYSTEM:
REAR SUSPENSION SYSTEM:
ALIGNMENT:
Alignment

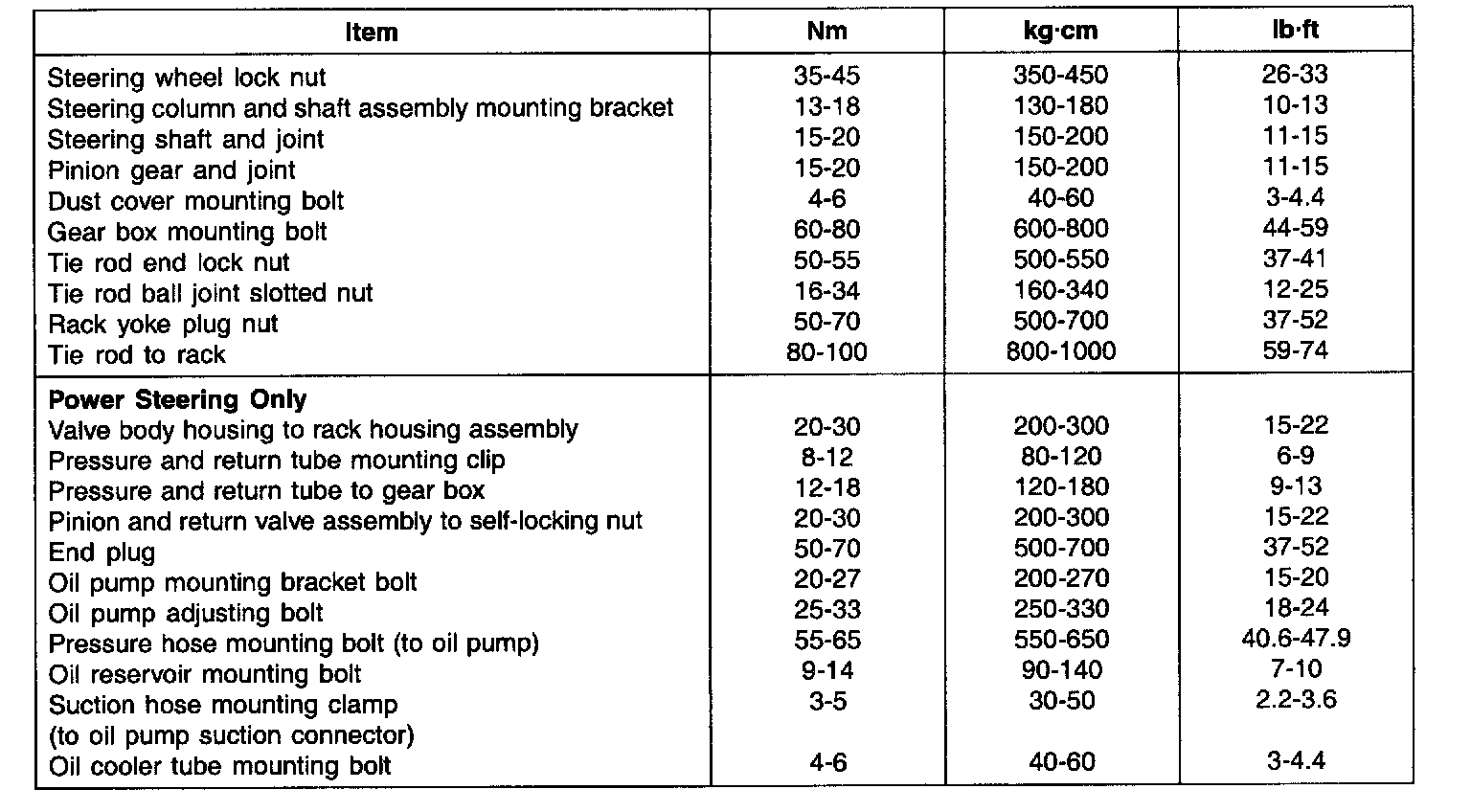

STEERING:

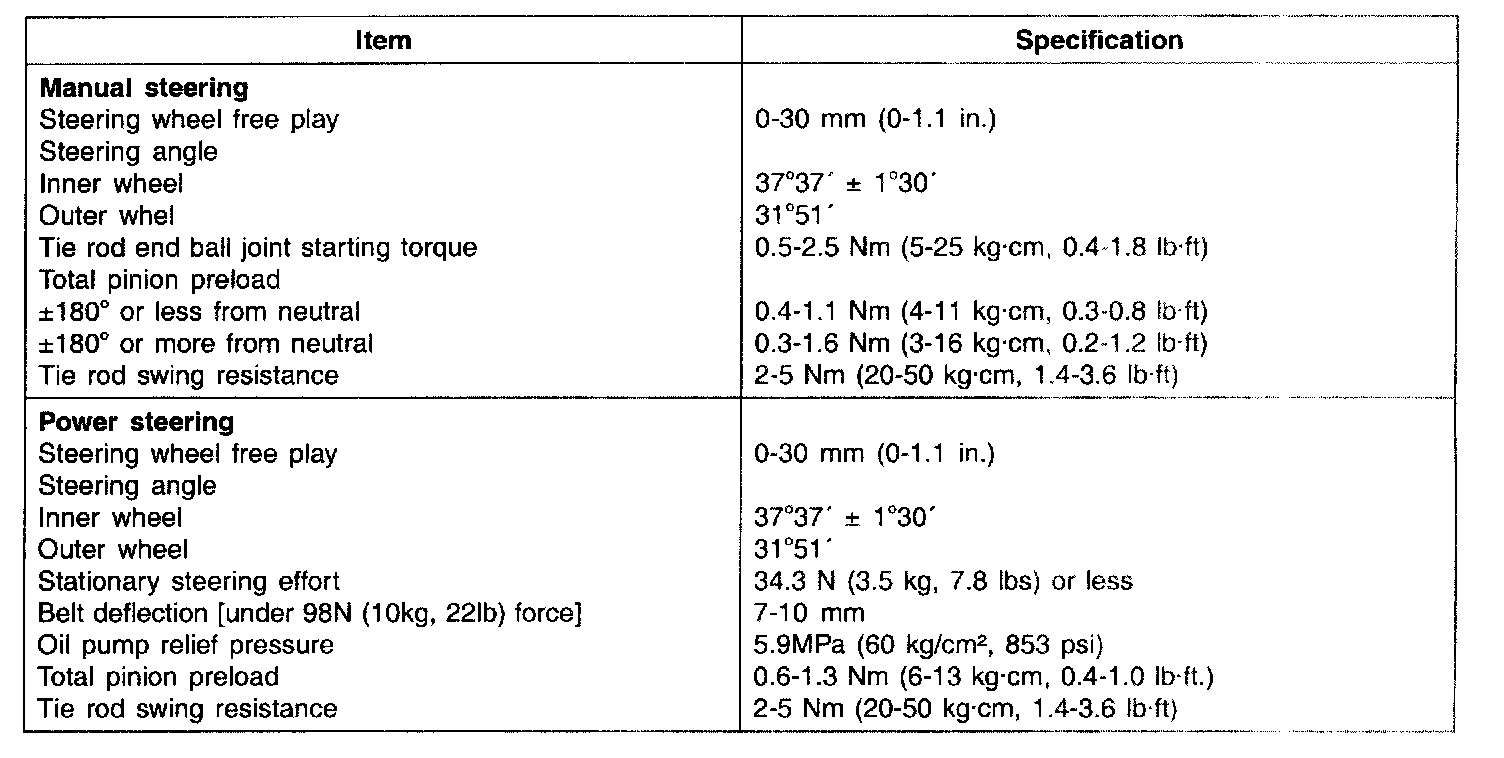

Steering
ALIGNMENT:
CAUTION: Replace the self-locking nuts with new ones after removal.

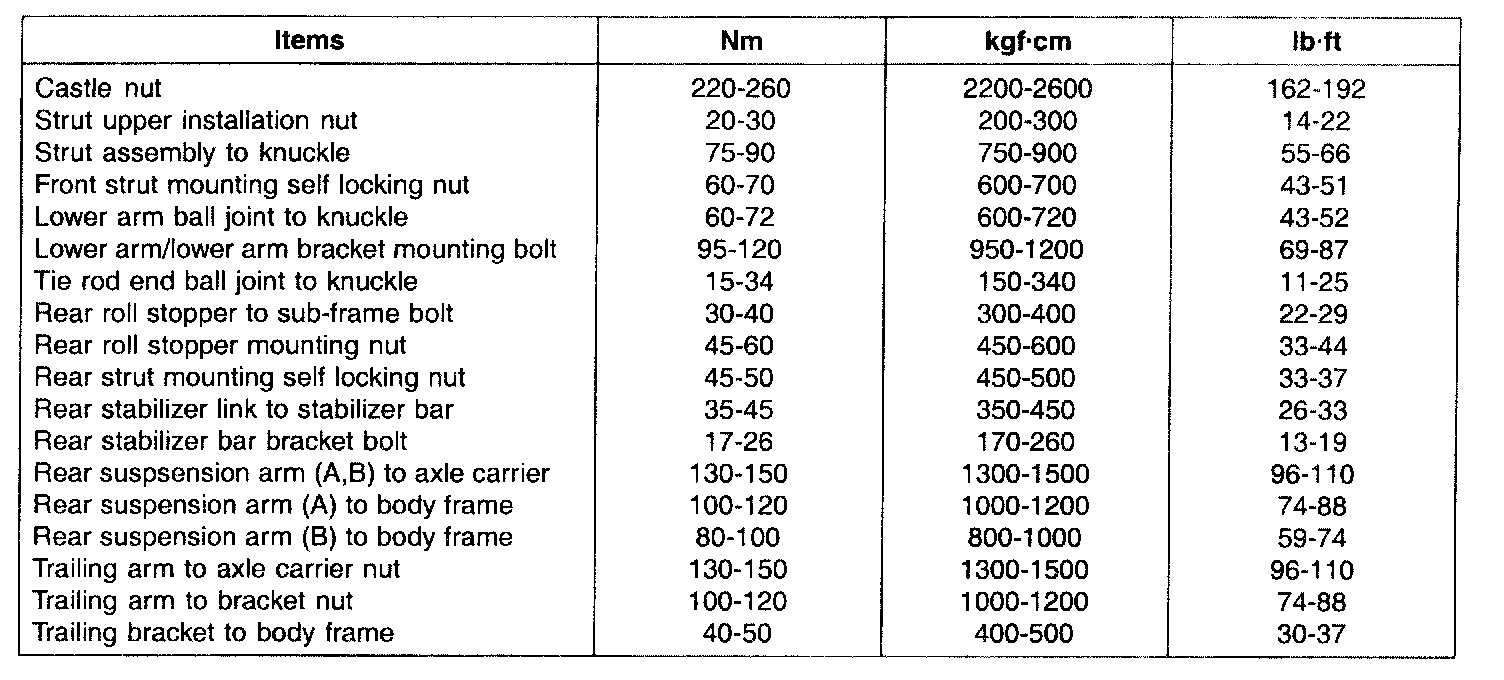

Suspension
STEERING COLUMN / SHAFT:

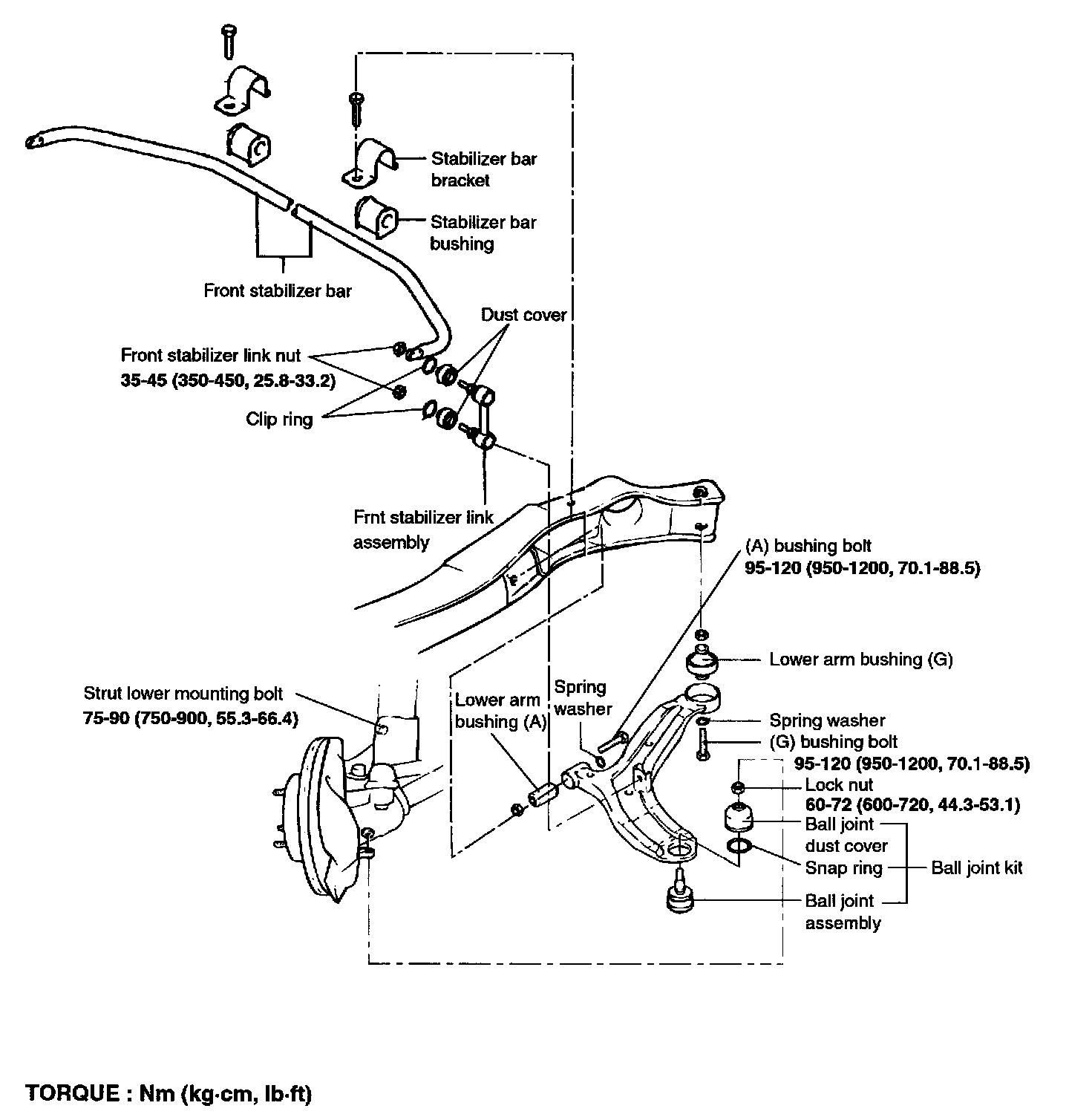

LOWER ARM (Front):
UPPER ARM, LOWER ARM AND ASSIST LINK (Rear):
FRONT STABILIZER BAR:

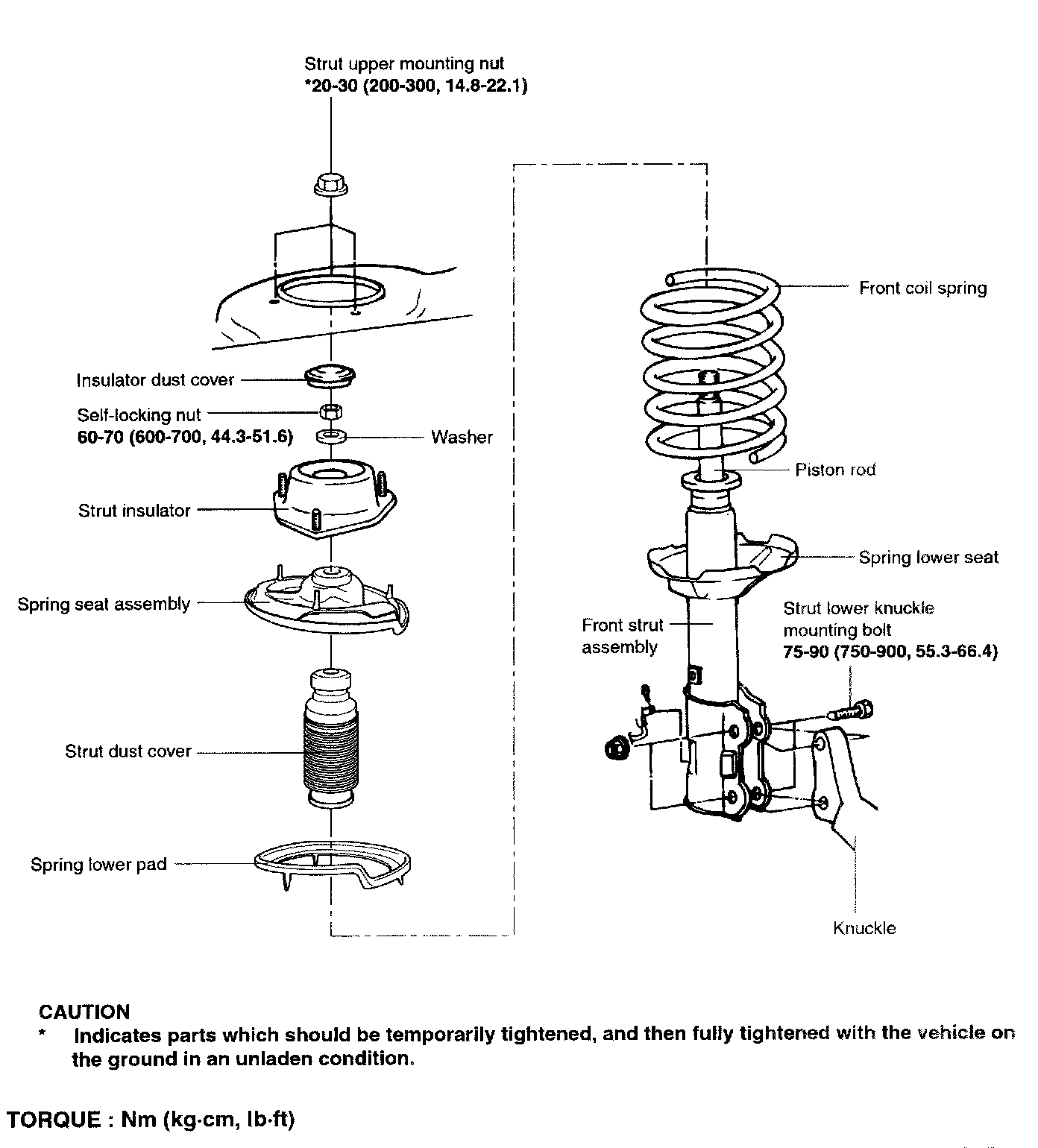

STRUT ASSEMBLY (Front):

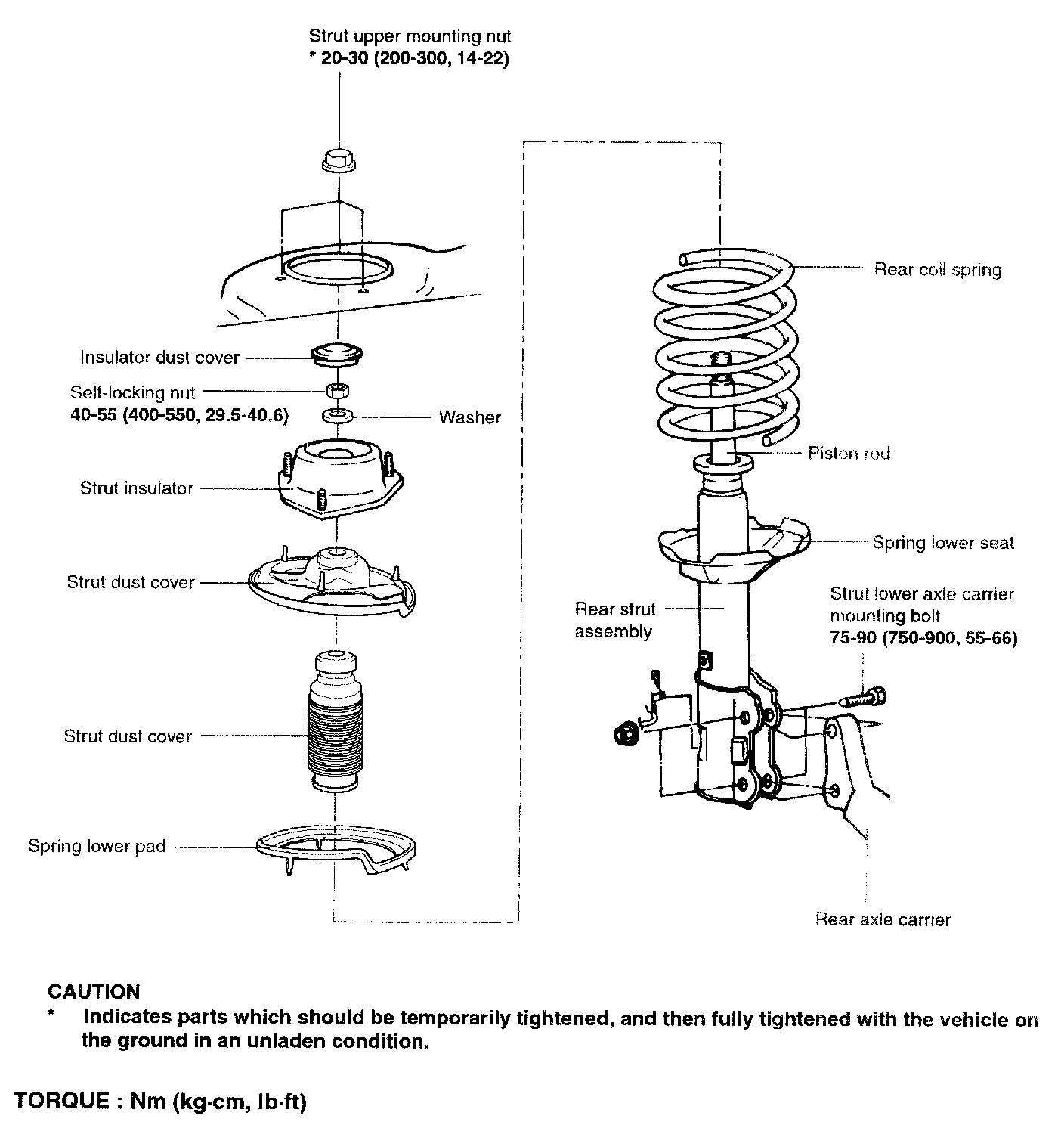

REAR STRUT:
