Compressor HVAC: Service and Repair

1. Discharge the refrigerant

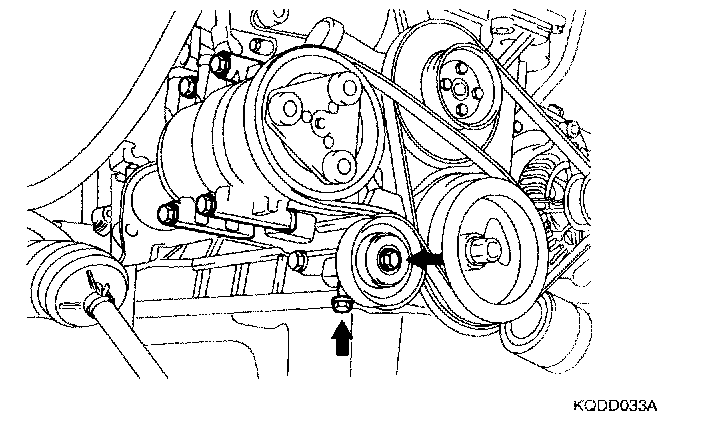

2. Remove the tension bolt.

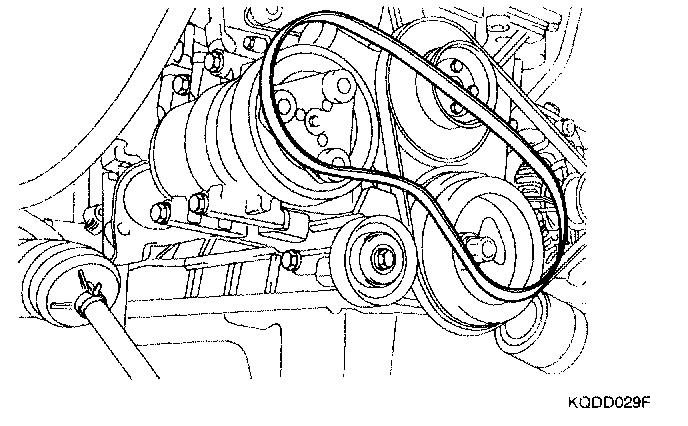

3. Remove the V-belt.
4. Remove the suction hose and discharge hose from the compressor.

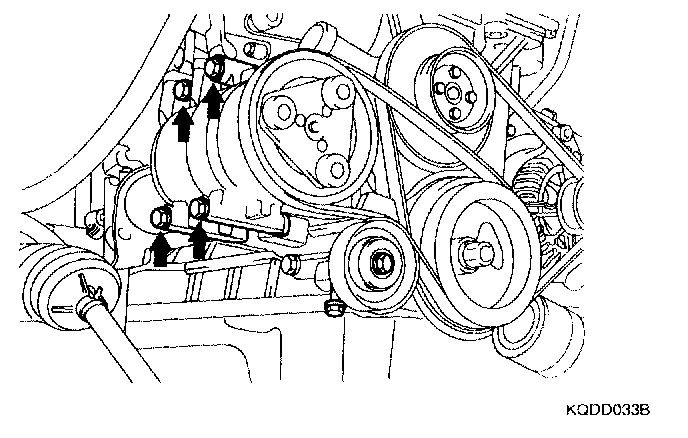

5. Remove the 4 mounting bolts on the compressor.
6. Remove the compressor downwards.
