Traction Control Module

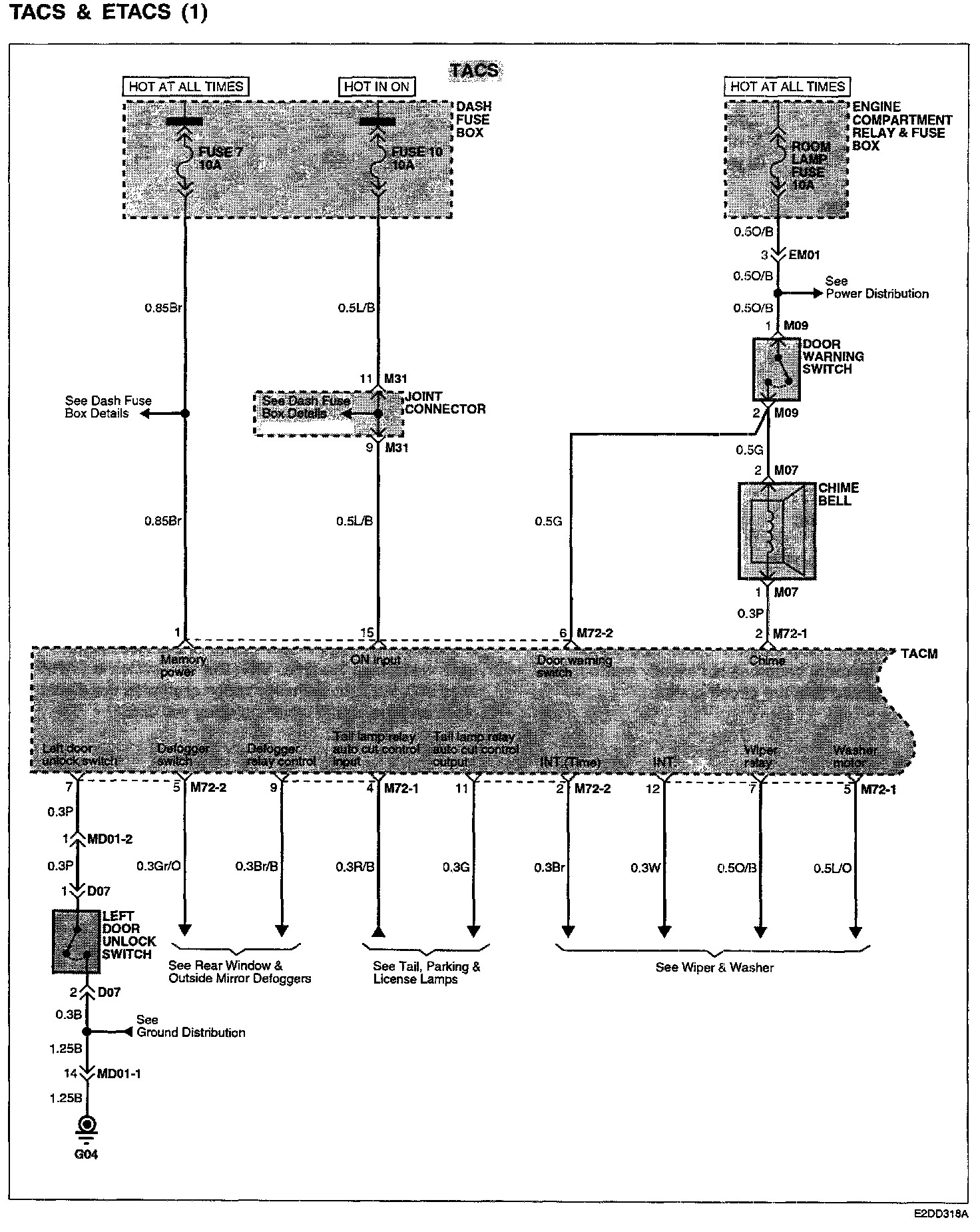

TACS & ETACS (1):

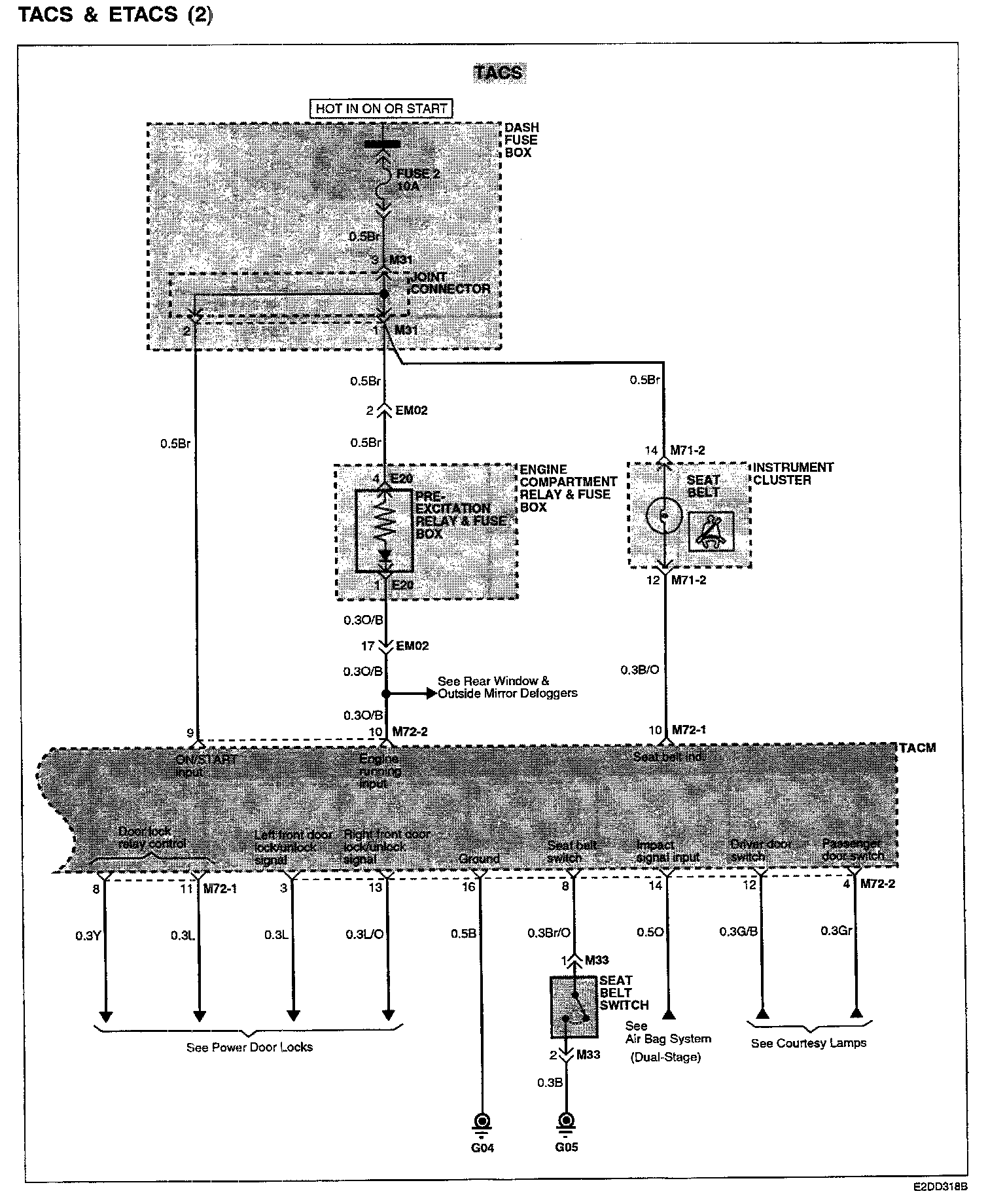

TACS & ETACS (2):

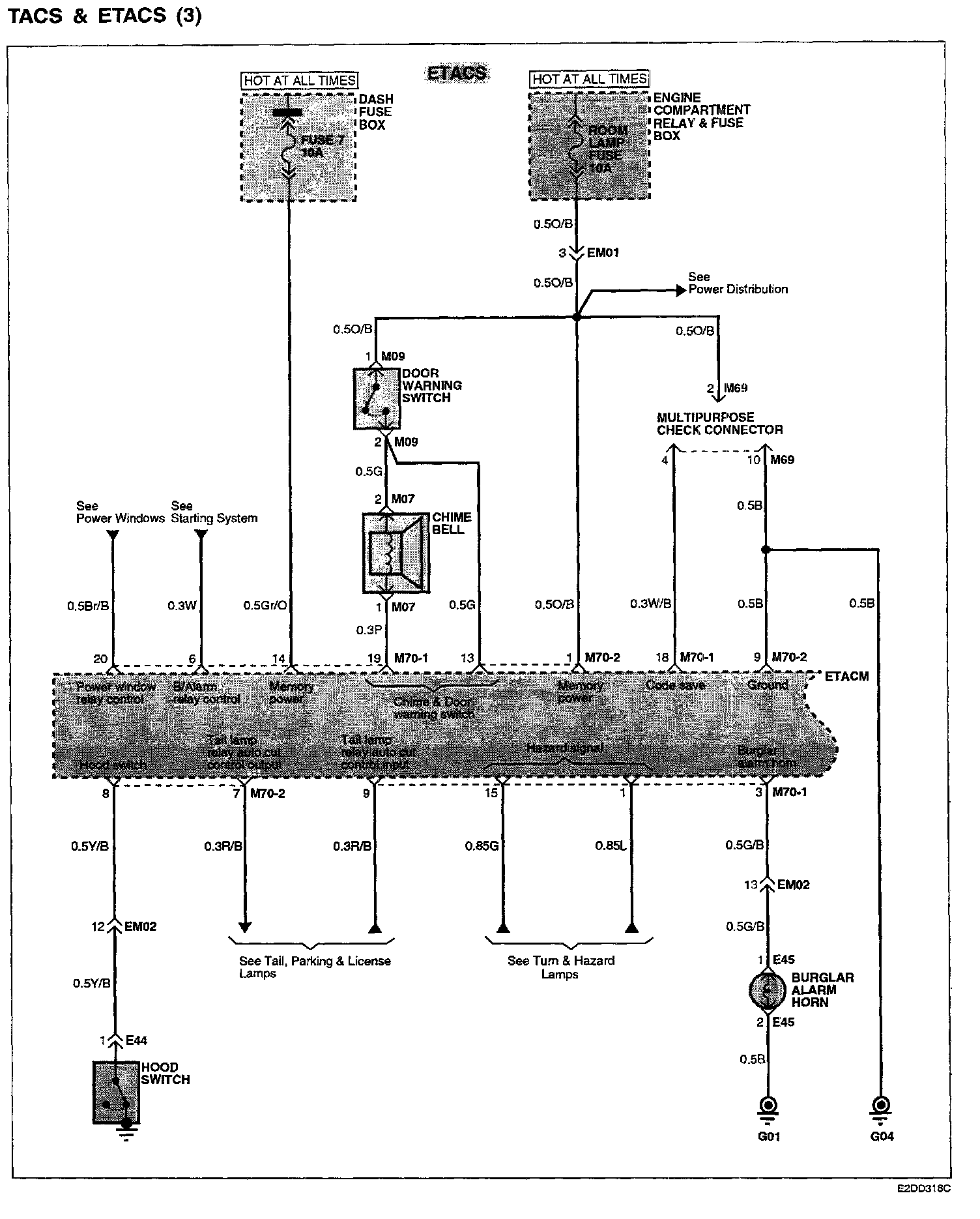

TACS & ETACS (3):

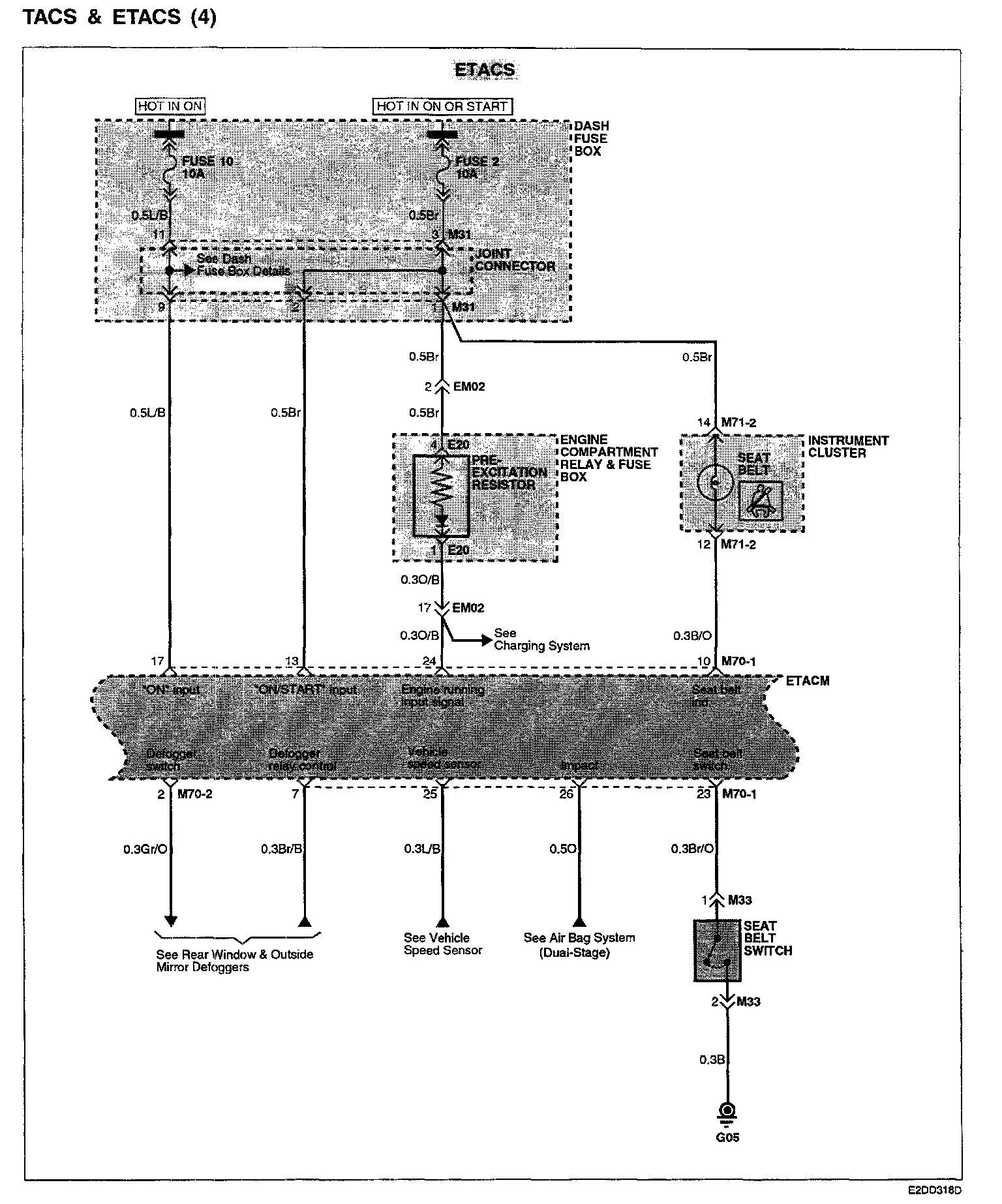

TACS & ETACS (4):

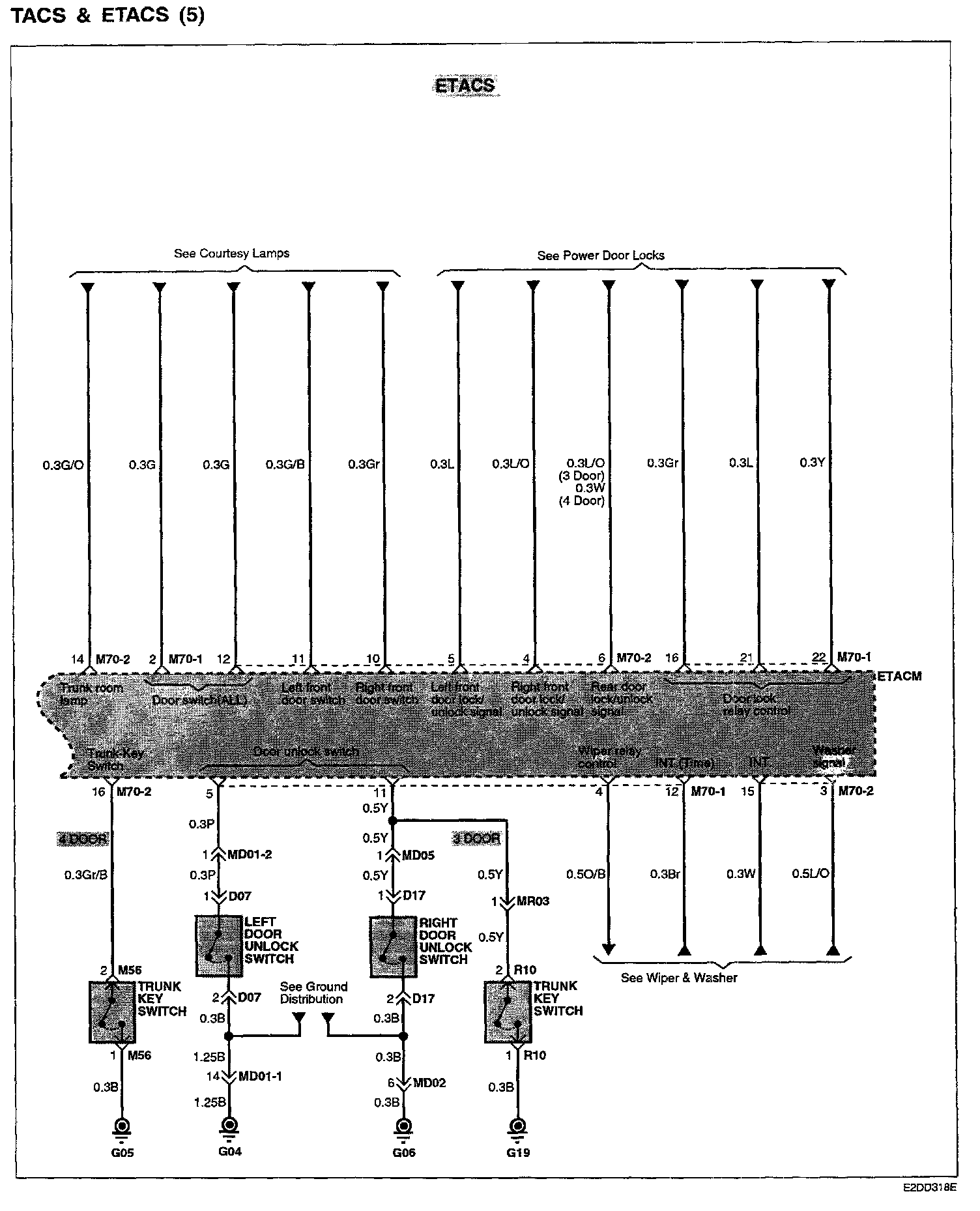

TACS & ETACS (5):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
