Steering Column/Shaft: Components

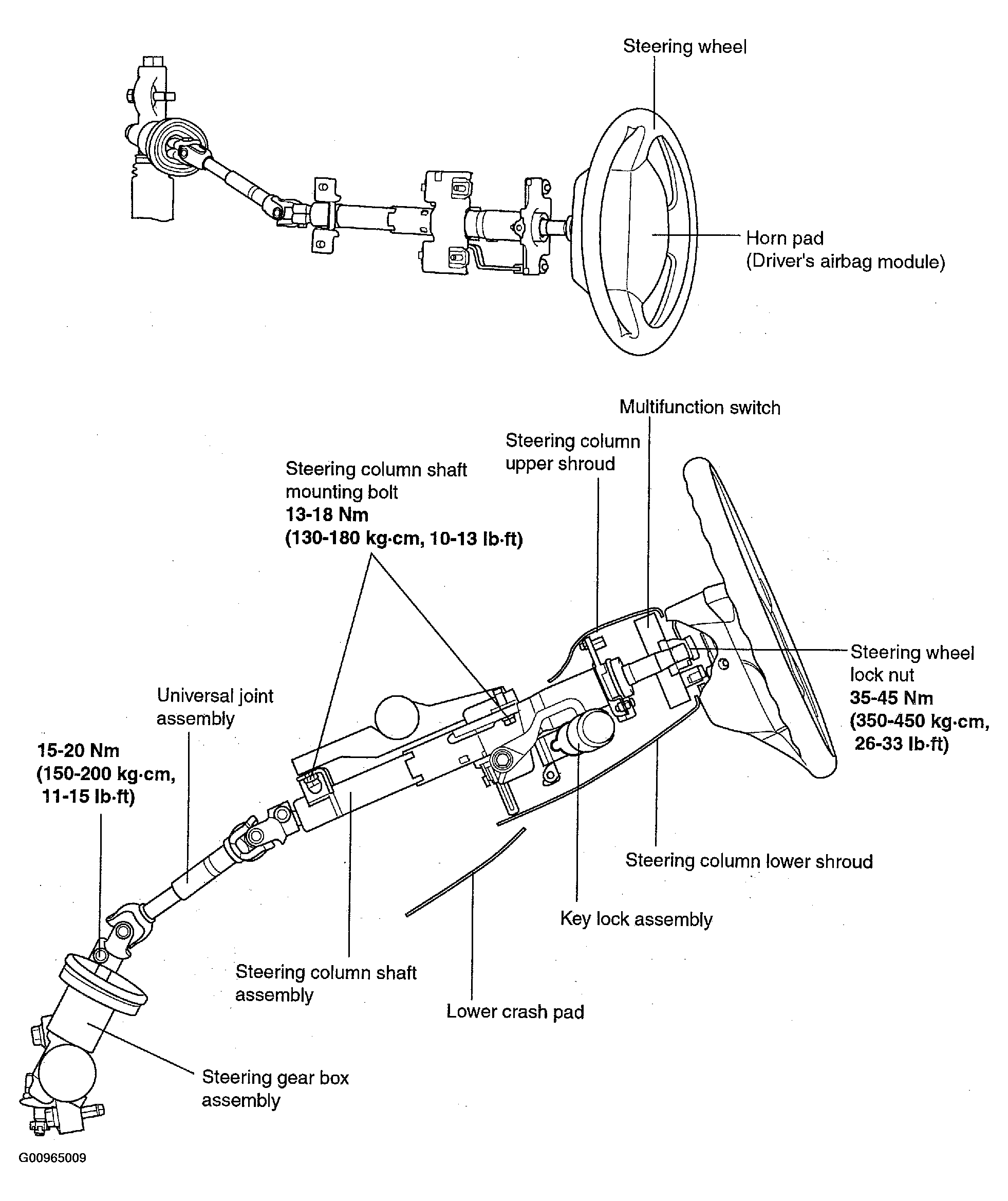

Fig 1: Steering Column/Shaft Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
