Power Steering Hoses: Components

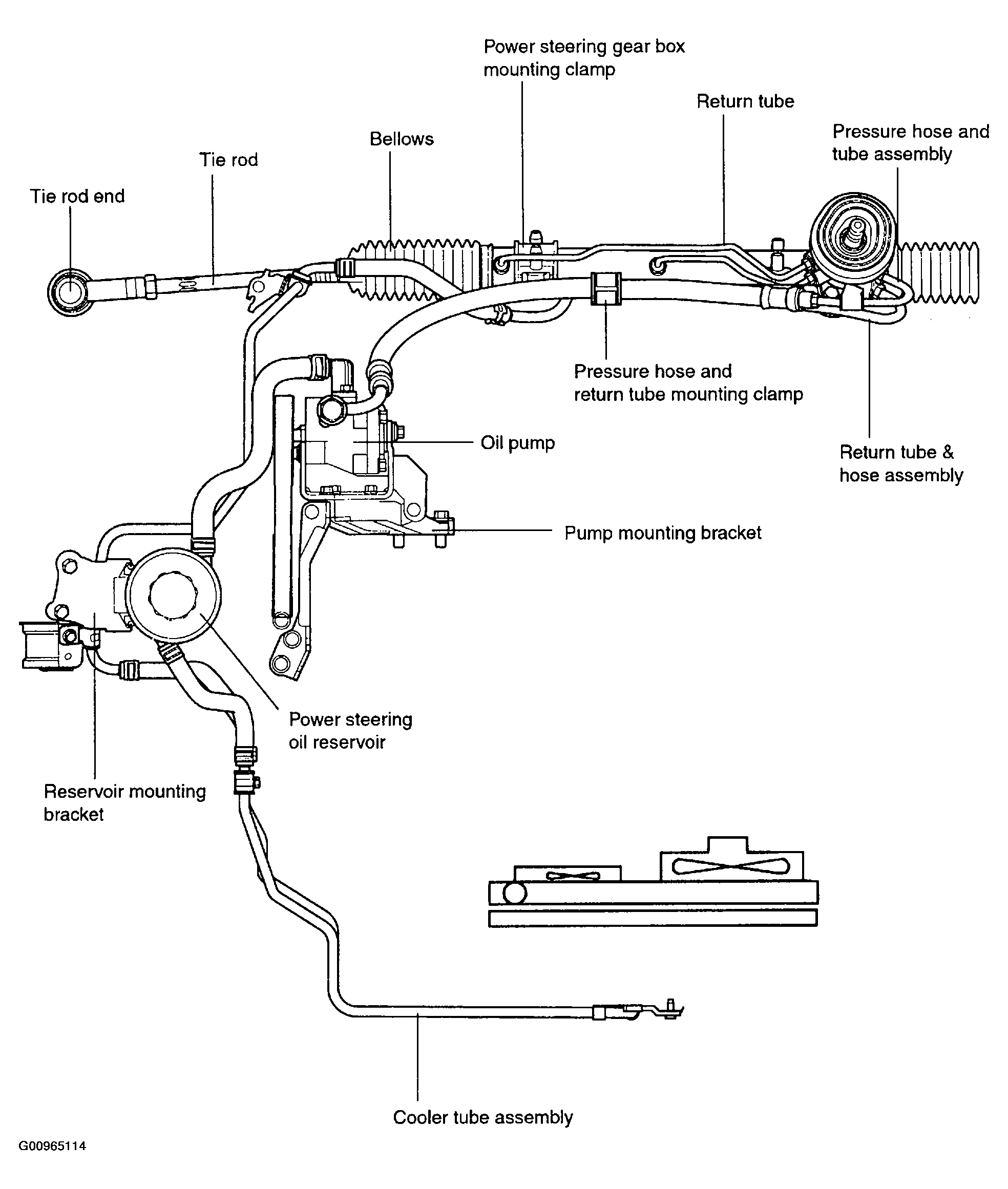

Fig 1: Power Steering Hoses Components

G00965114

Courtesy of HYUNDAI MOTOR CO.
