Adjustment Specifications

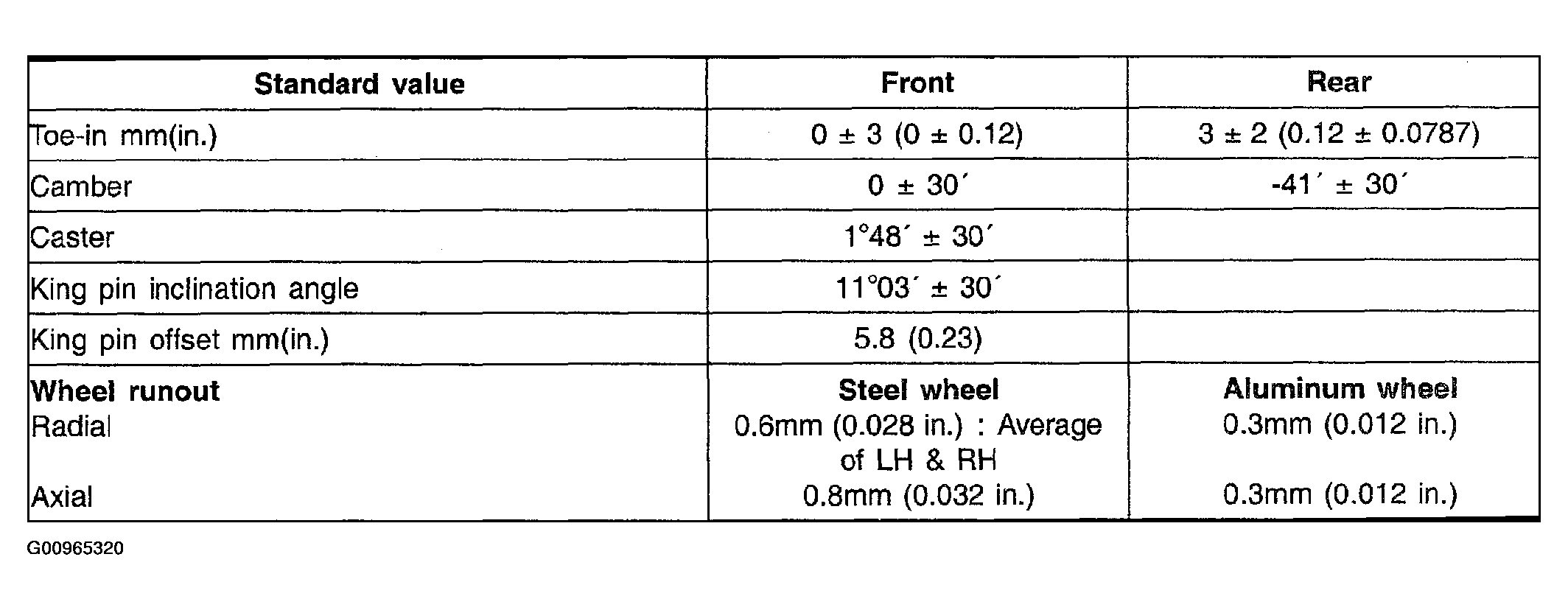

Fig 1: Alignment Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
