Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Inspection Chart For Trouble Symptoms
>>
Inspection Procedure 16
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 16
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Overdrive Switch System Probable Cause Table
Courtesy of HYUNDAI MOTOR CO.

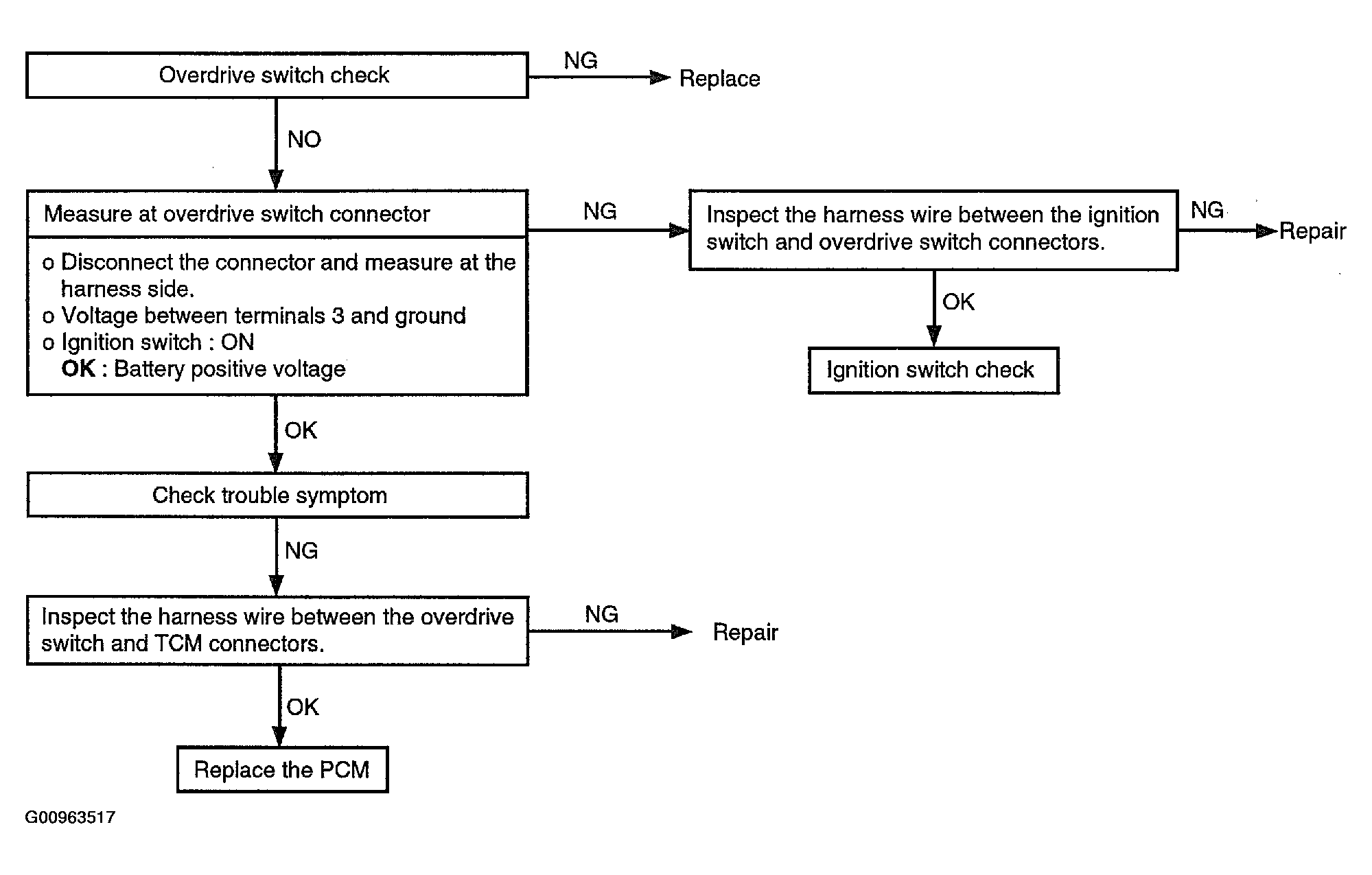

Fig 2: Overdrive Switch System Flow Chart
Courtesy of HYUNDAI MOTOR CO.
