Troubleshooting Flow

WARNING: This page is about a different variant/trim than selected.

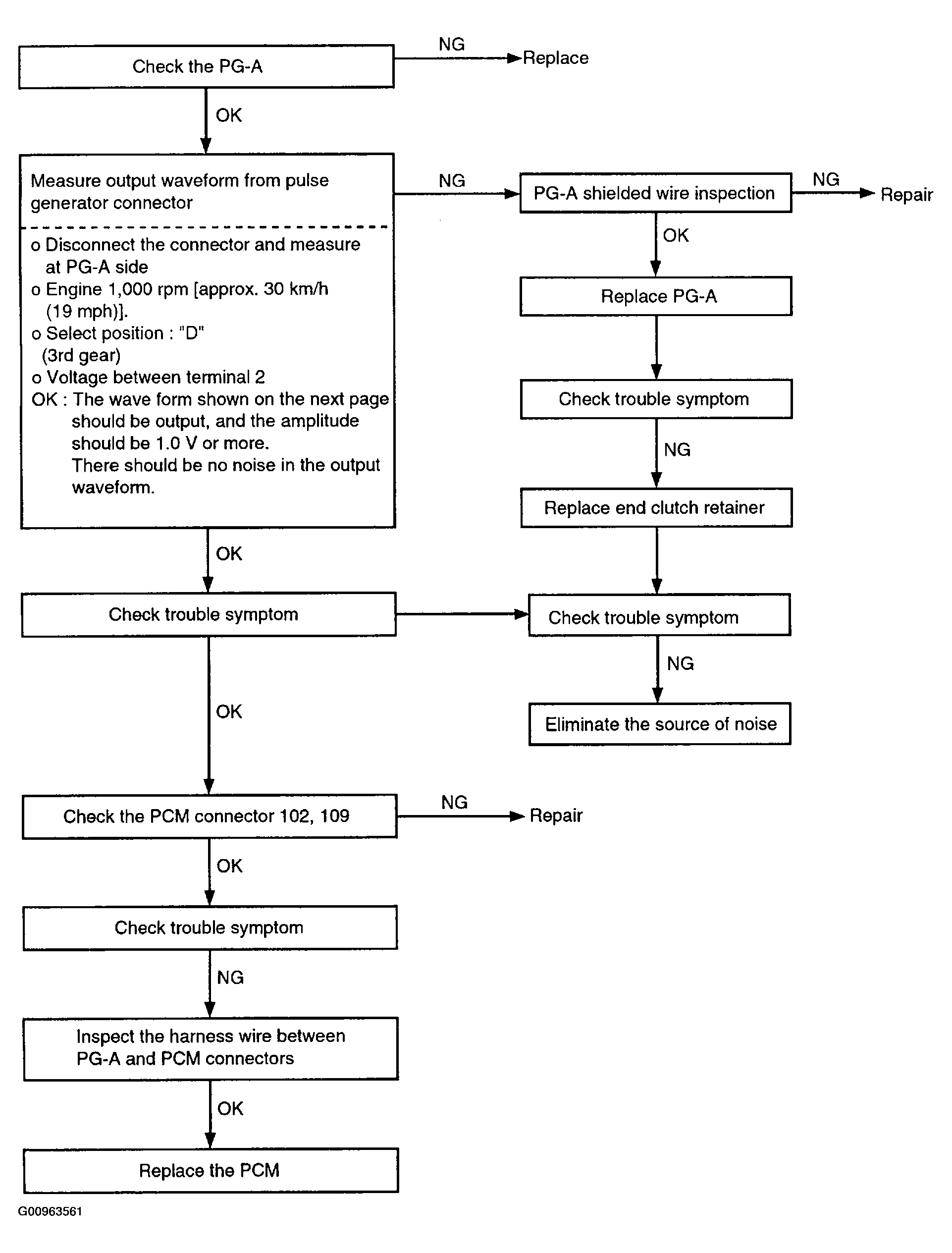

Fig 1: DTC P0717 Diagnostic Flow Chart
G00963561Courtesy of HYUNDAI MOTOR CO.
