Engine Mounts: Removal: Notes

Attach an engine hoist to the engine hooks, and raise the engine just enough so that there is no pressure on the insulators.

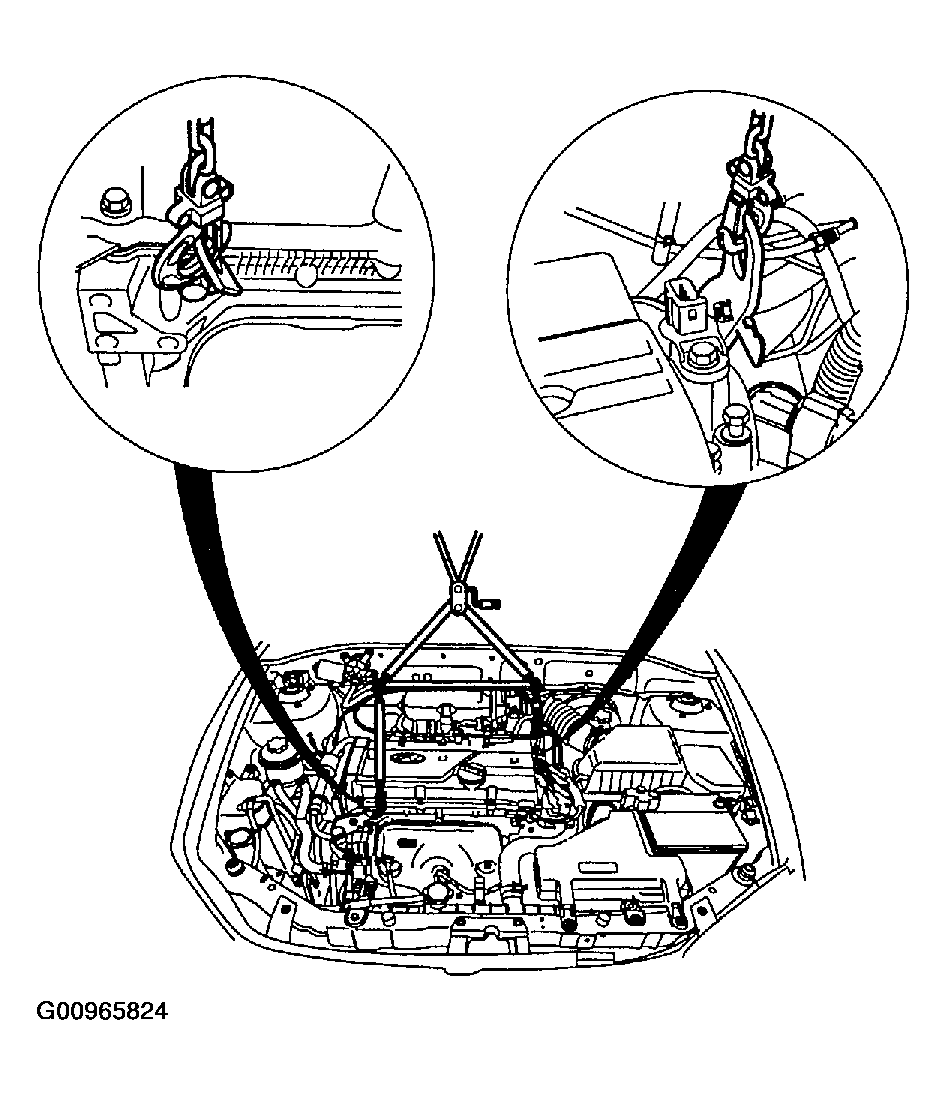

Fig 1: Attaching Engine Hoist
G00965824Courtesy of HYUNDAI MOTOR CO.
