Service Manual - DTC Updates
Group: ENGINE ELECTRICALNumber: 02-36-019
Date: JUNE, 2002
Model: 2002 XG350
Subject
XG350 SHOP MANUAL ADDITIONAL INFORMATION EMS DIAGNOSTIC TROUBLE CODE DIFFERENCES BETWEEN XG3CO AND XG350
DESCRIPTION:
Some Diagnostic Trouble Codes (DTCs) have changed from the XG300 to the XG350. The 2002 XG350 Shop Manual does not show these changes in the Fuel System (FL) section.

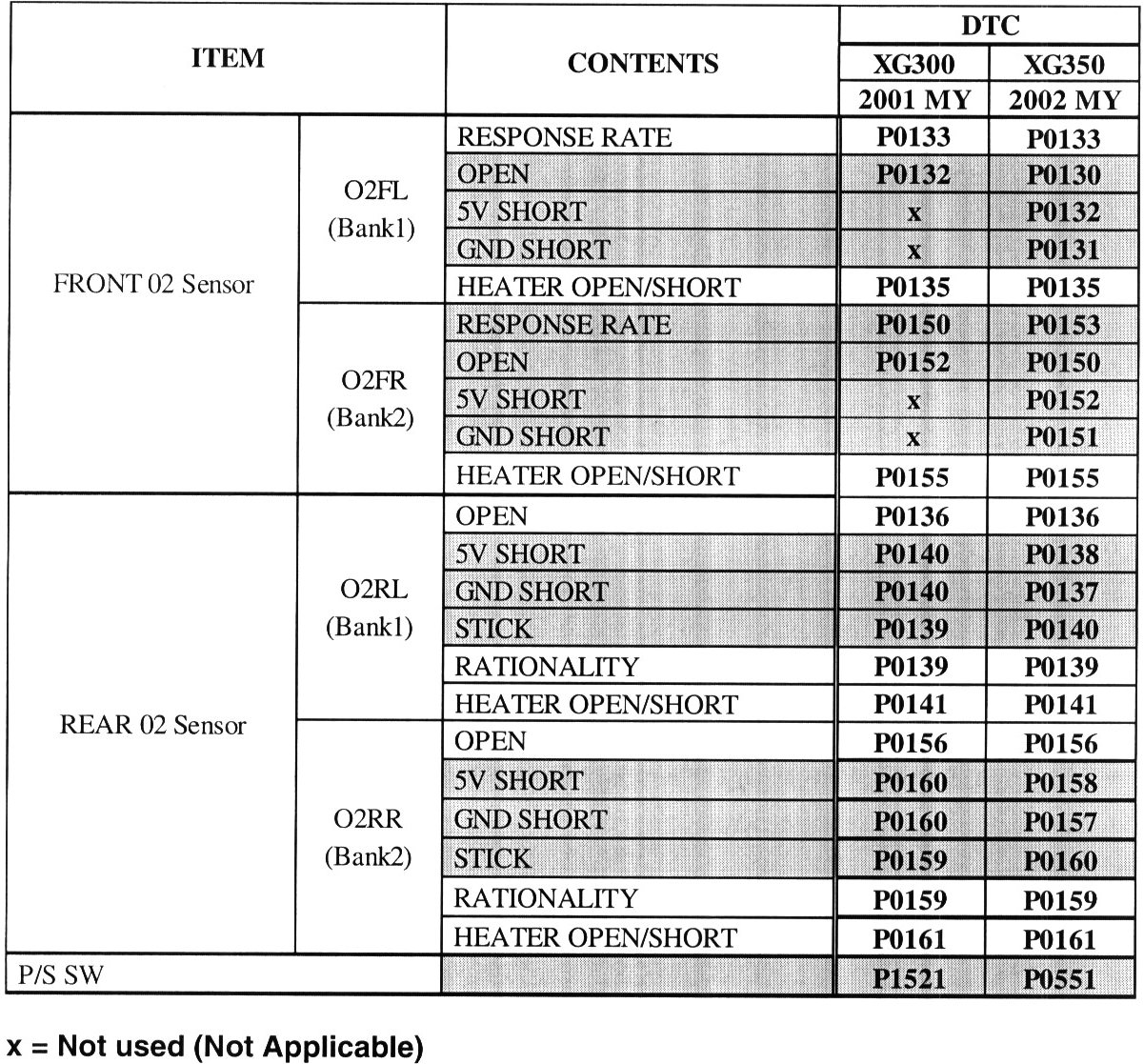

The table in this TSB shows the differences.
1. The oxygen sensor related codes have been changed and expanded.
2. The power steering switch related code has been changed.
Please write this TSB number on top of page FL-21 of the 2002 XG350 Shop Manual for future reference.
