Main Relay (Computer/Fuel System): Locations

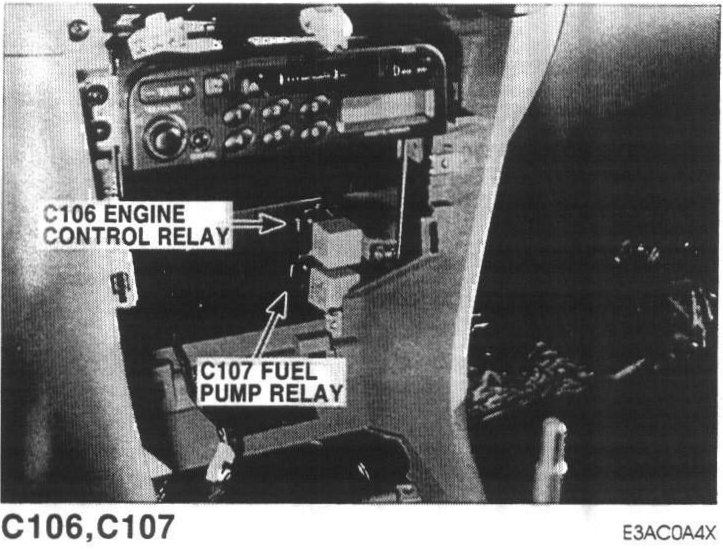

C106 Engine Control Relay, C107 Fuel Pump Relay:

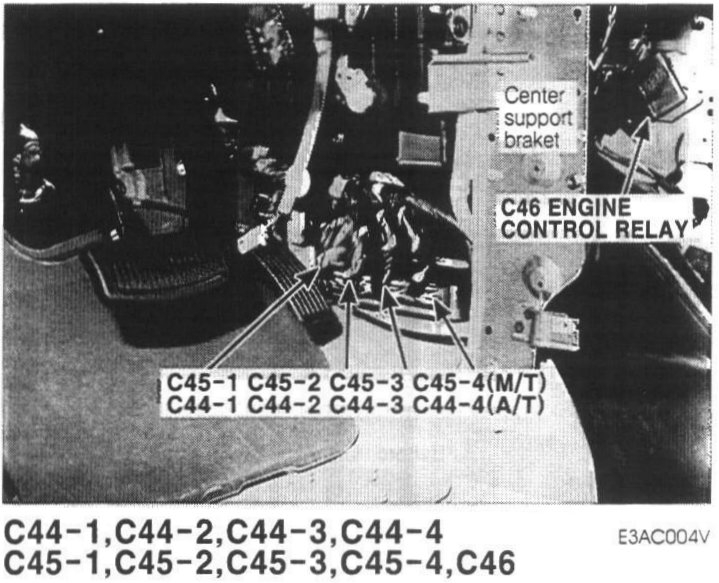

C44-1 PCM (M/T), C44-2 PCM (DOHC With M/T), C44-3 PCM (DOHC With M/T), C44-4 PCM (DOHC With M/T), C45-1 ECM (DOHC With M/T), C45-2 ECM (DOHC With M/T), C45-3 ECM (DOHC With M/T), C45-4 ECM (DOHC With M/T), C46 Engine Control Relay (DOHC):
