Timer/Control Unit, Accessory Control

Circuit Diagram:

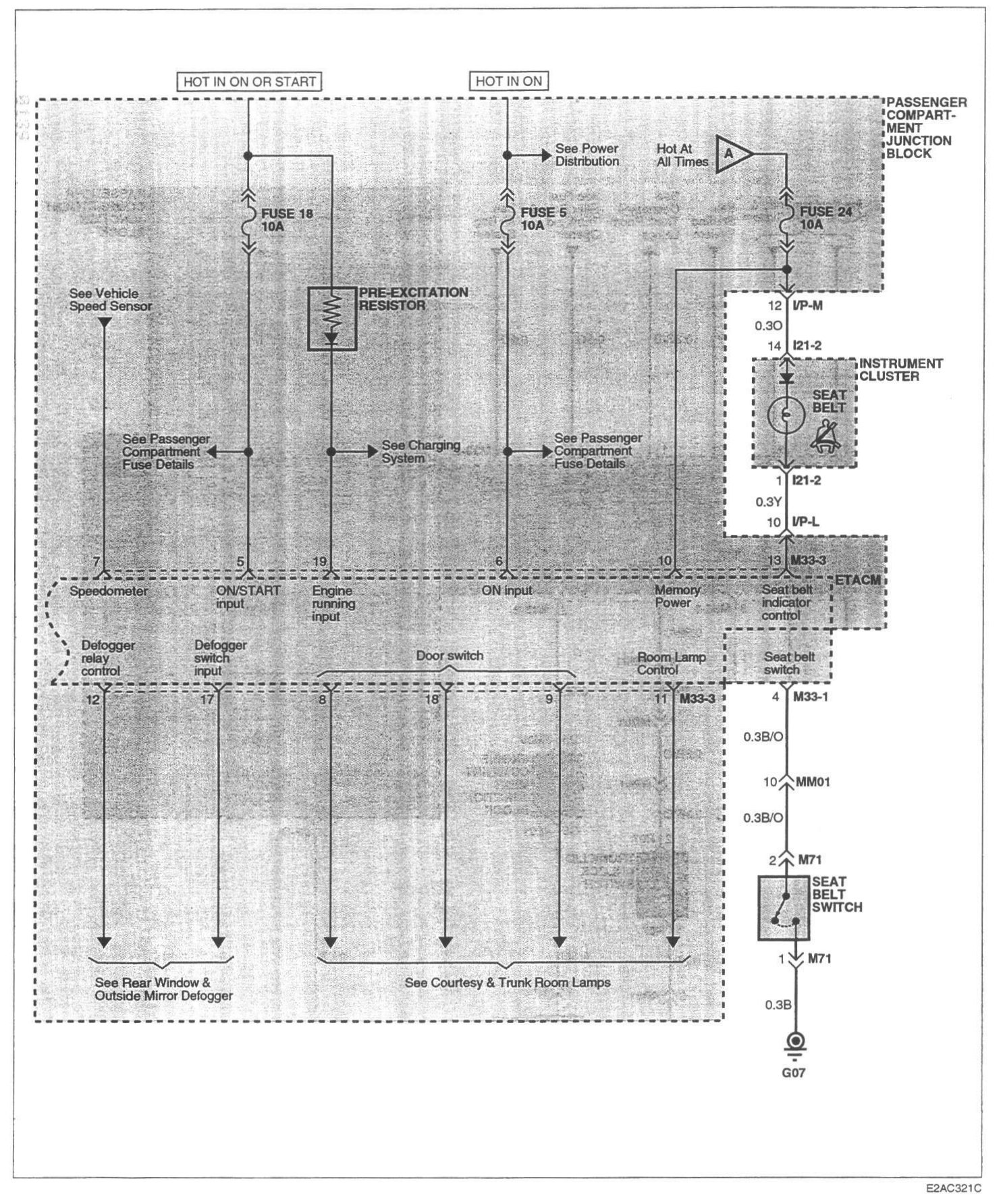

Image SD-122 ETACS (Electronic Time And Alarm Control System) (1):

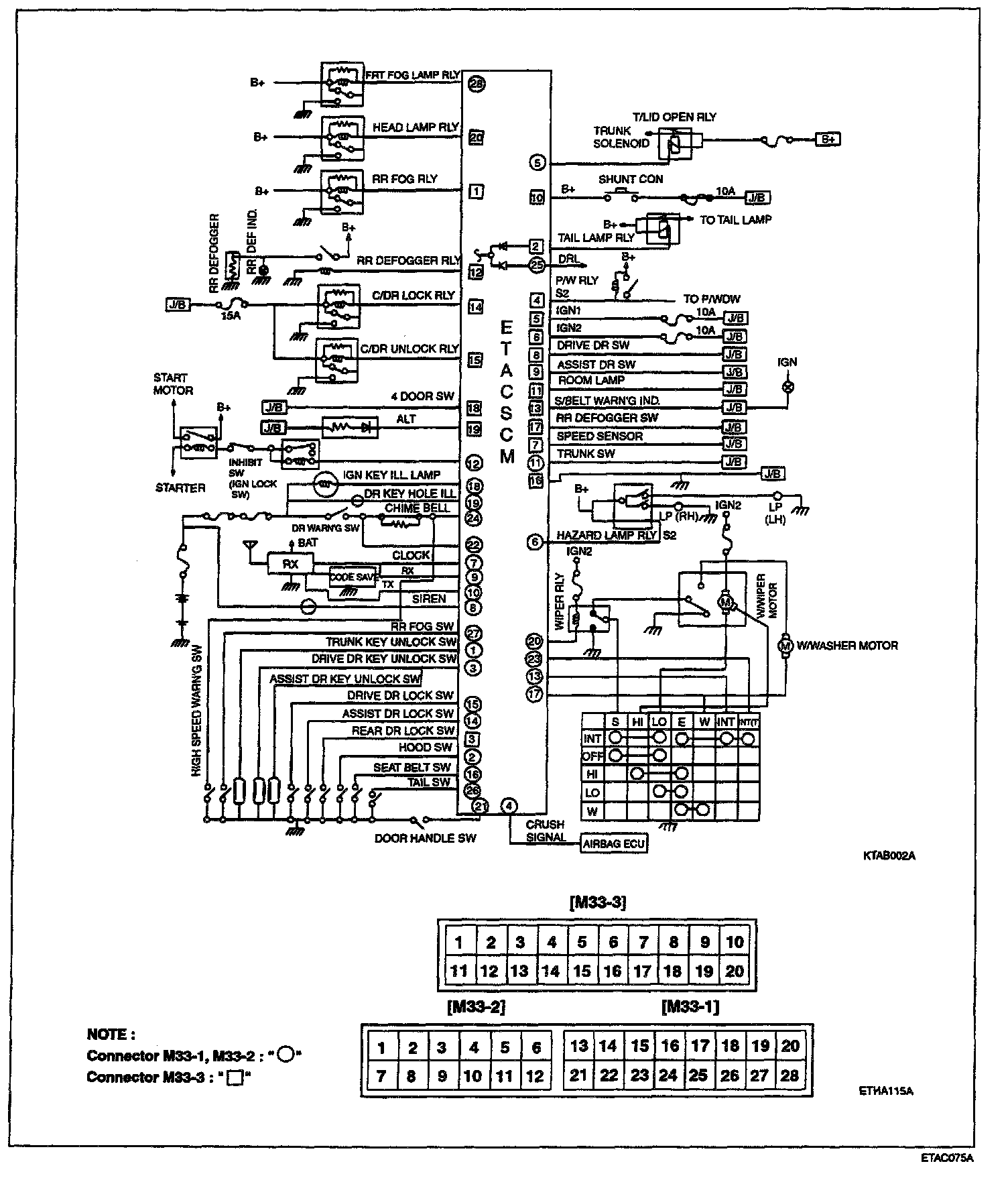

Image SD-123 ETACS (Electronic Time And Alarm Control System) (2):

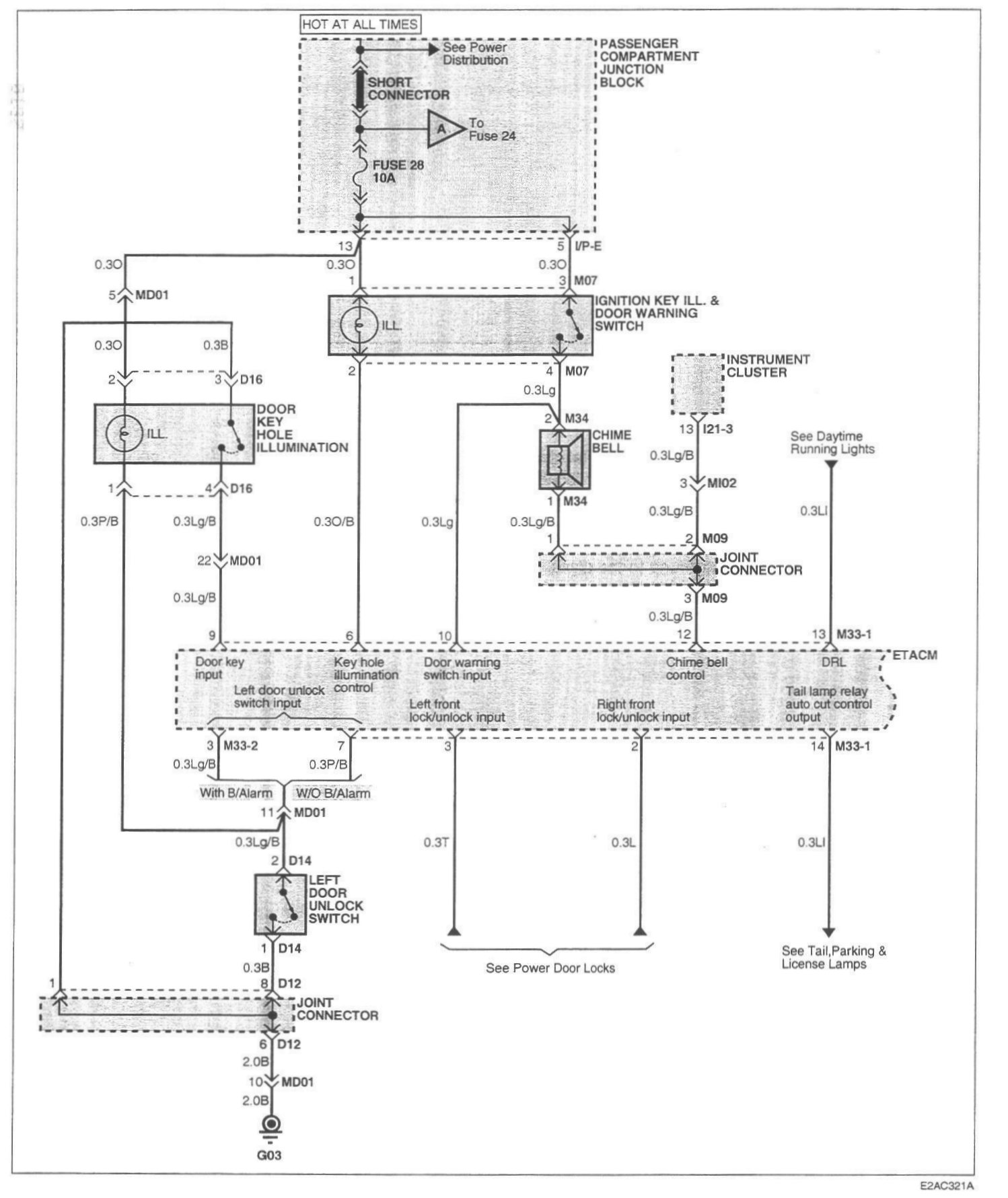

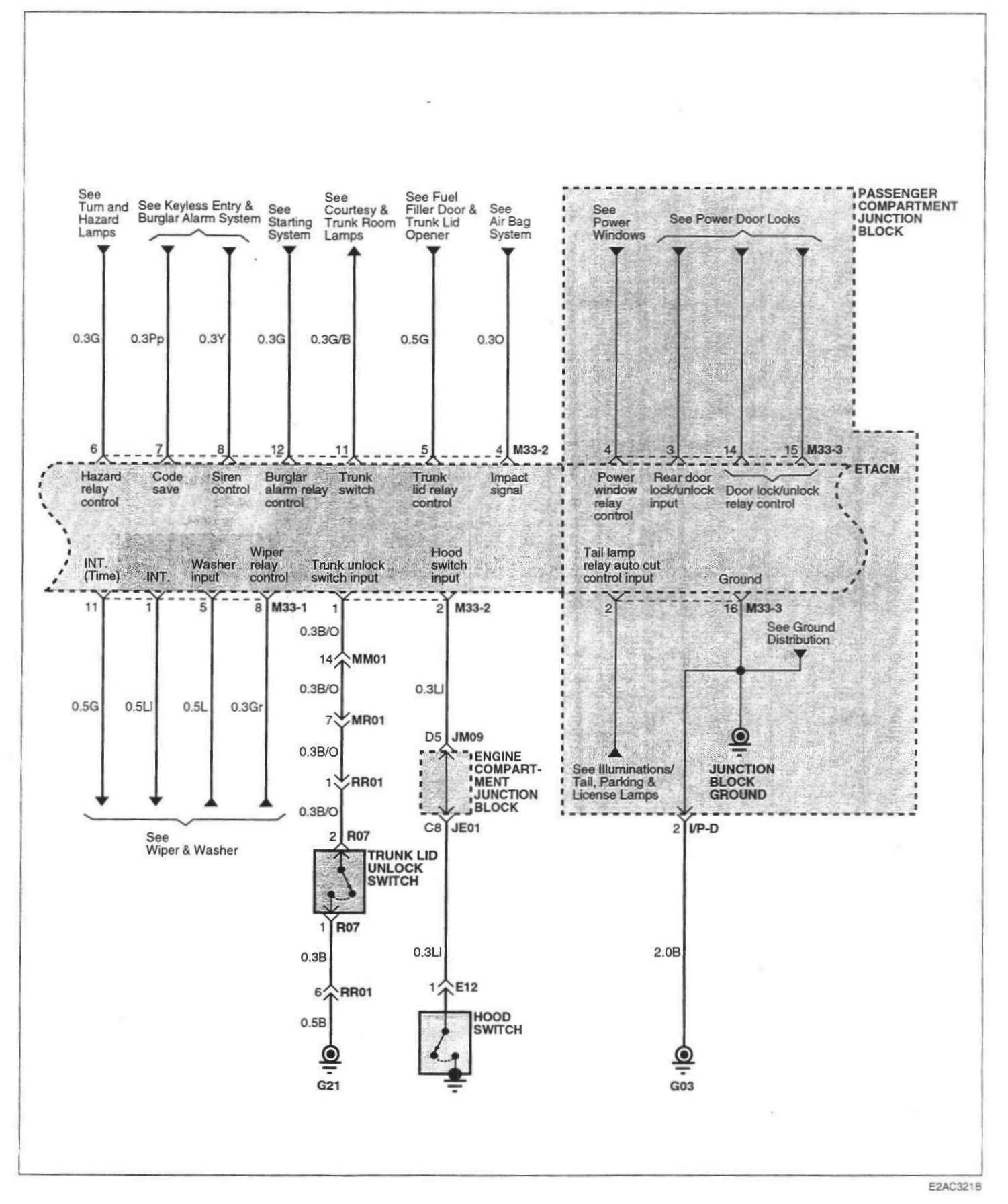

Image SD-124 ETACS (Electronic Time And Alarm Control System) (3):
