Transaxle Range (Tr) Switch Continuity Check

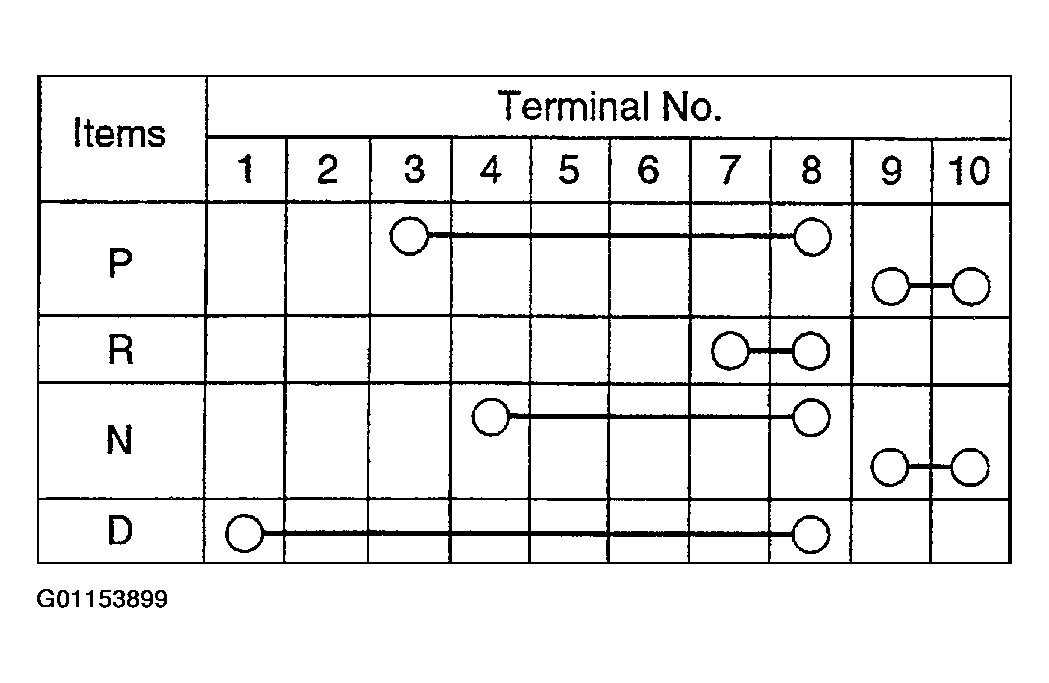

Fig 1: TR Switch Continuity Table
G01153899Courtesy of HYUNDAI MOTOR CO.

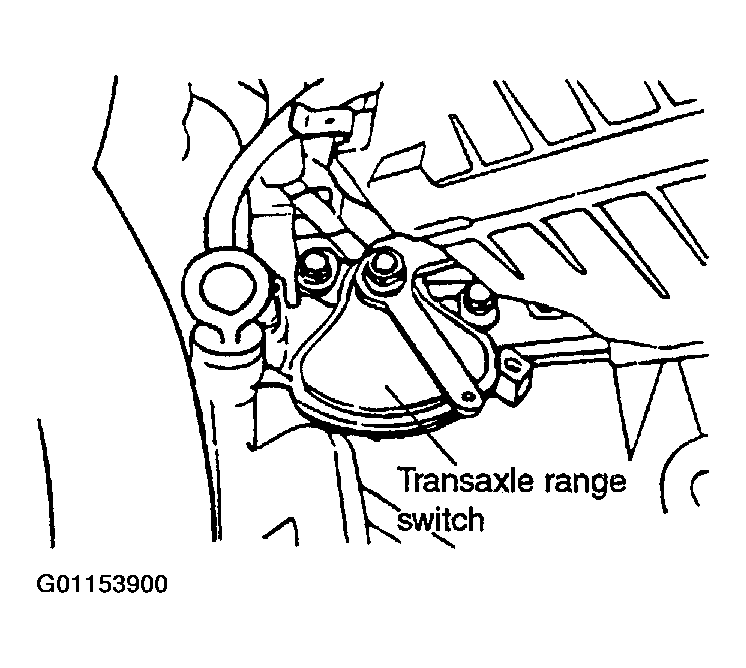

Fig 2: Identifying TR Switch
G01153900Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying TR Switch Positions & Connector Terminals
G01153901Courtesy of HYUNDAI MOTOR CO.
