DTC P1702-P1704: Throttle Position Sensor System

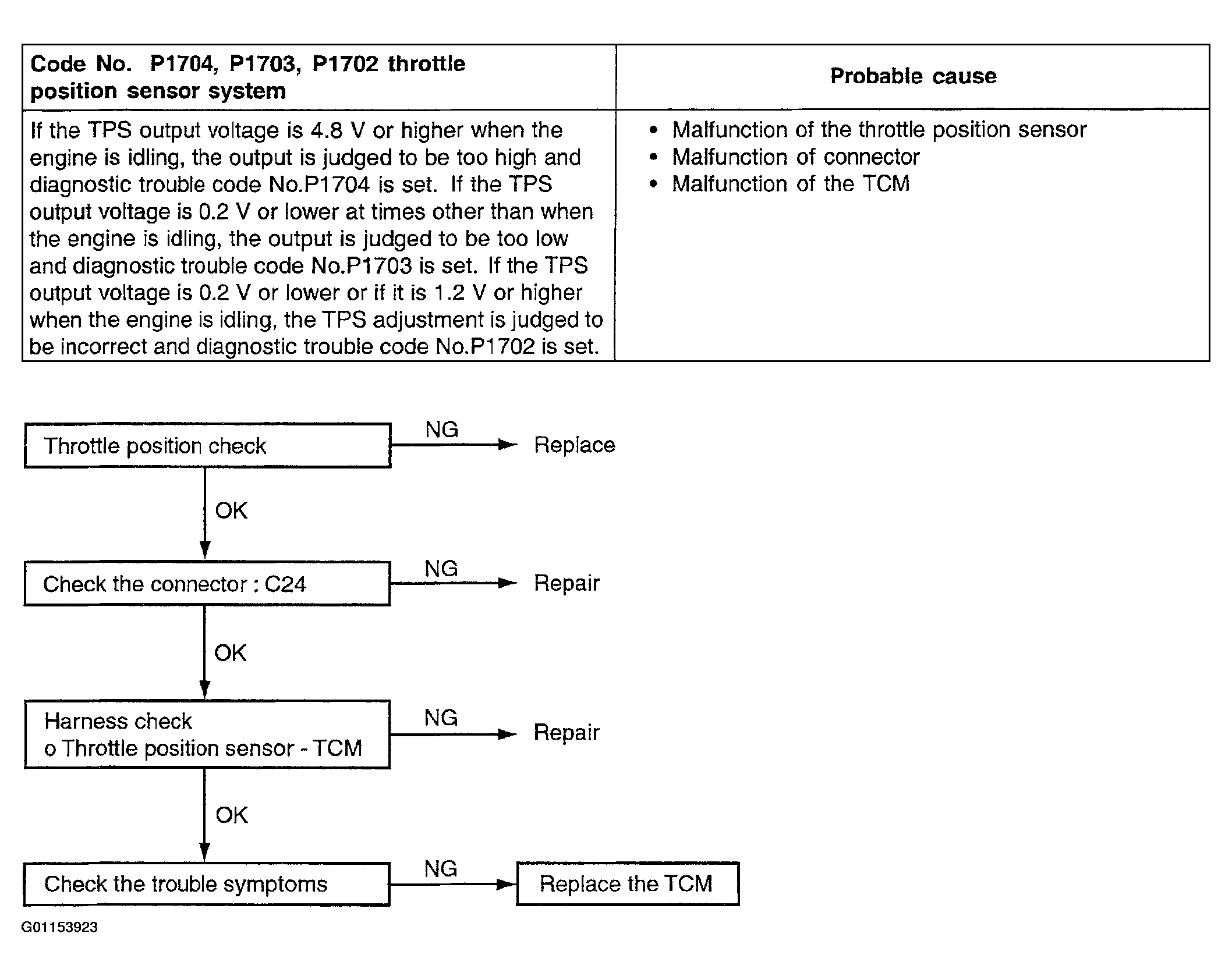

Fig 1: DTC P1702-P1704 Probable Causes & Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Throttle Position Sensor Circuit
Courtesy of HYUNDAI MOTOR CO.
