DTC P0710: Oil Temperature Sensor System

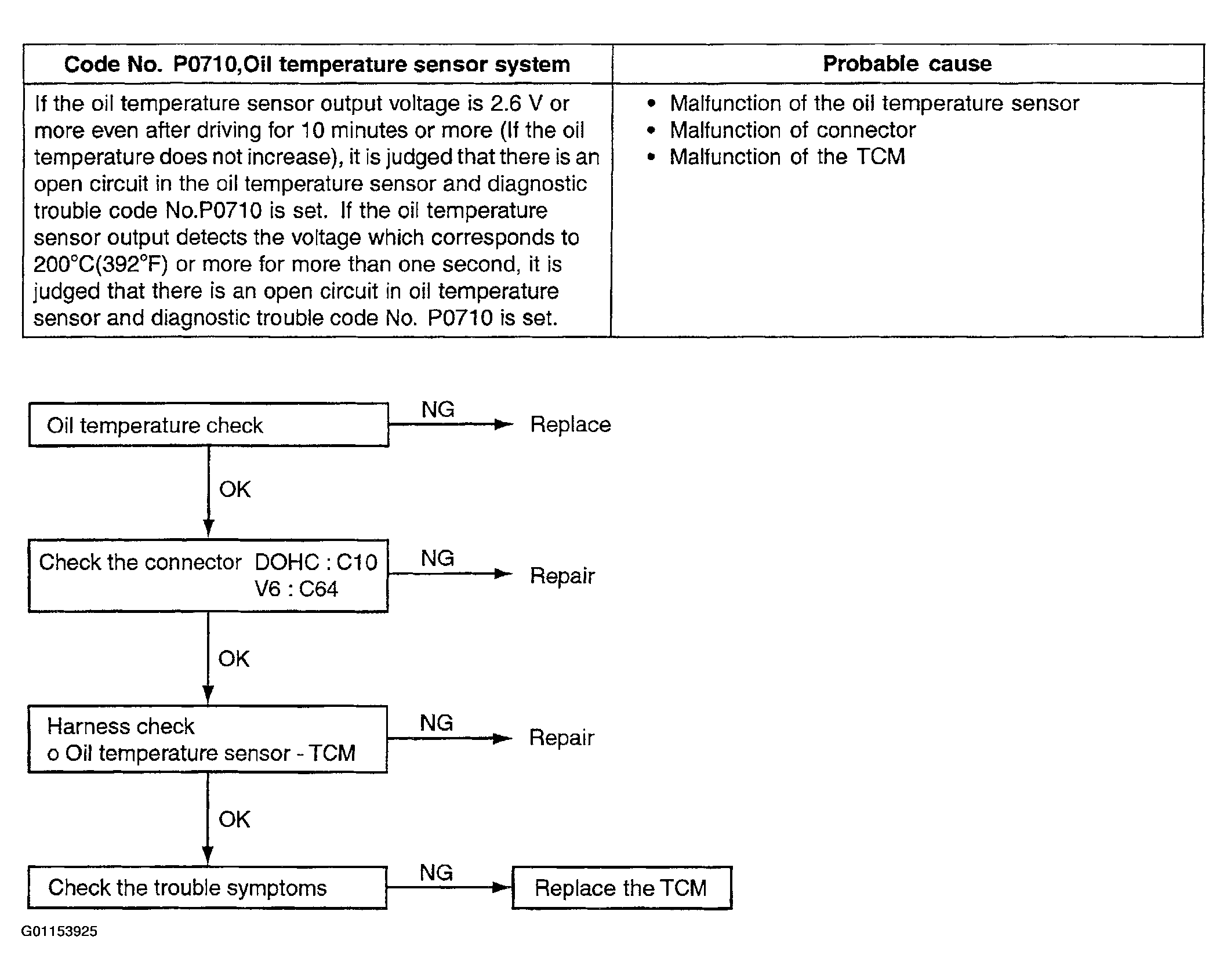

Fig 1: DTC P0710 Probable Causes & Diagnostic Flow Chart
G01153925Courtesy of HYUNDAI MOTOR CO.

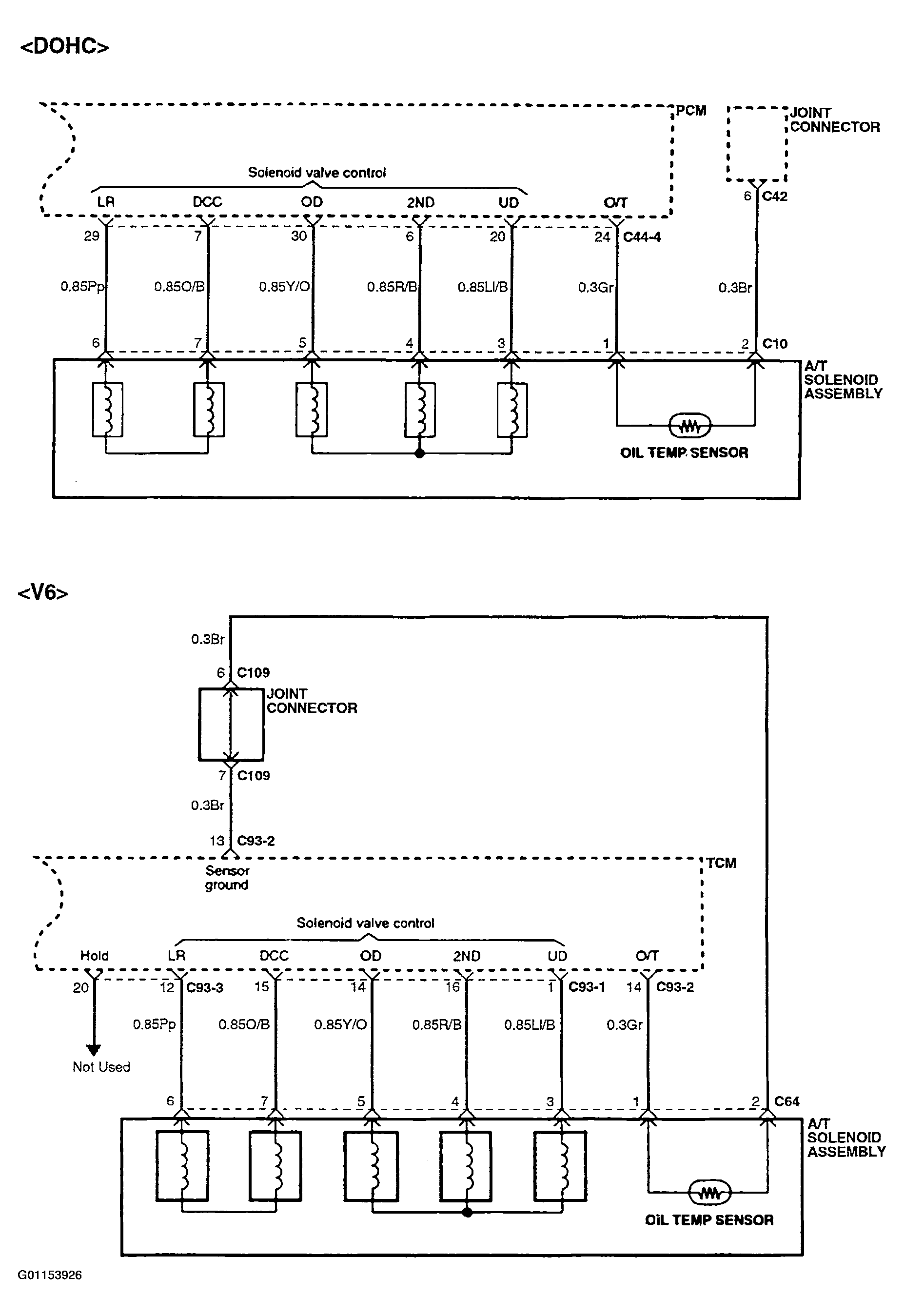

Fig 2: Oil Temperature Sensor Circuit
G01153926Courtesy of HYUNDAI MOTOR CO.
