Inspection Procedure 7

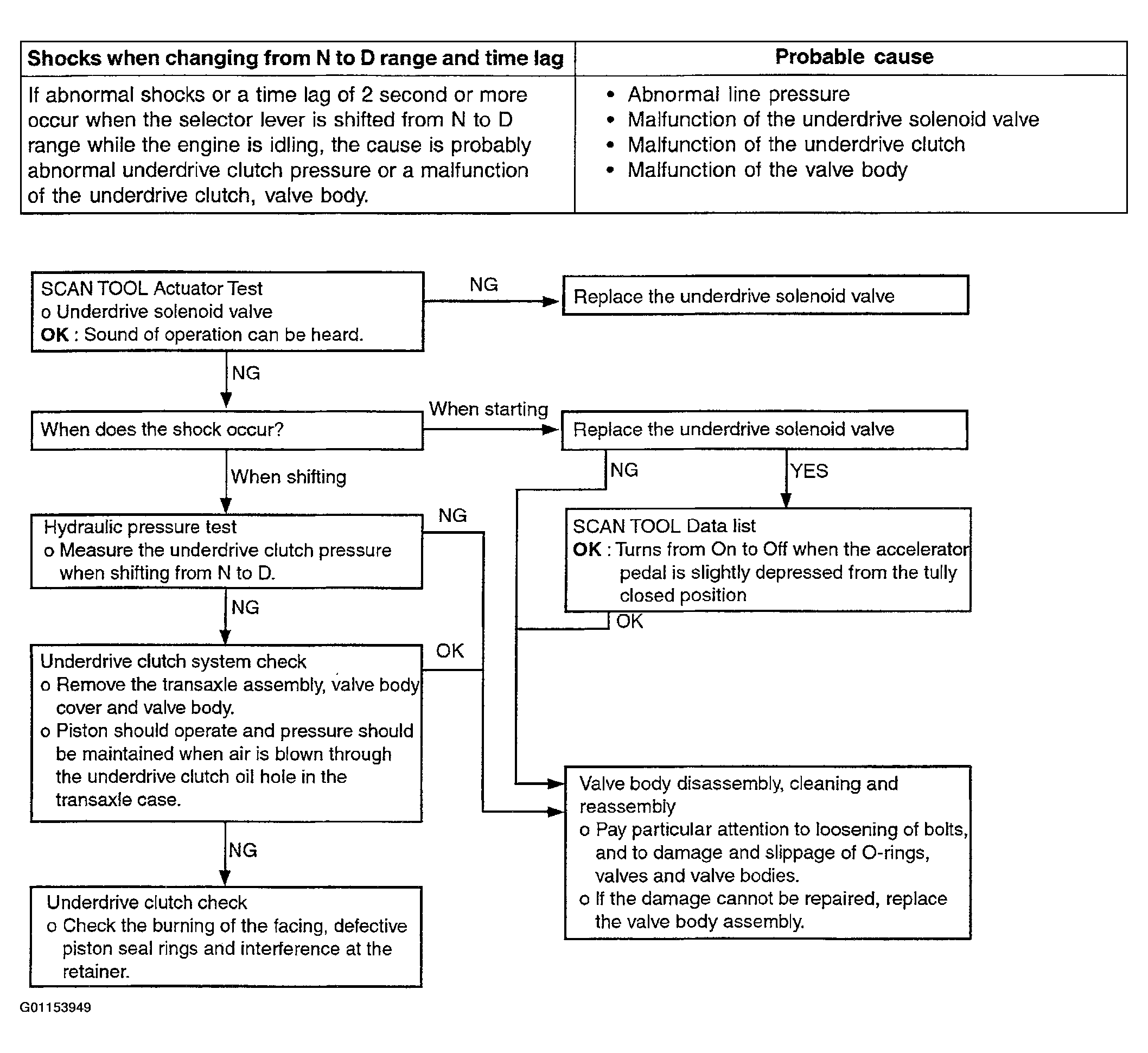

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag, Possible Causes Table & Flow Chart
G01153949Courtesy of HYUNDAI MOTOR CO.
