Timing Belt: Components

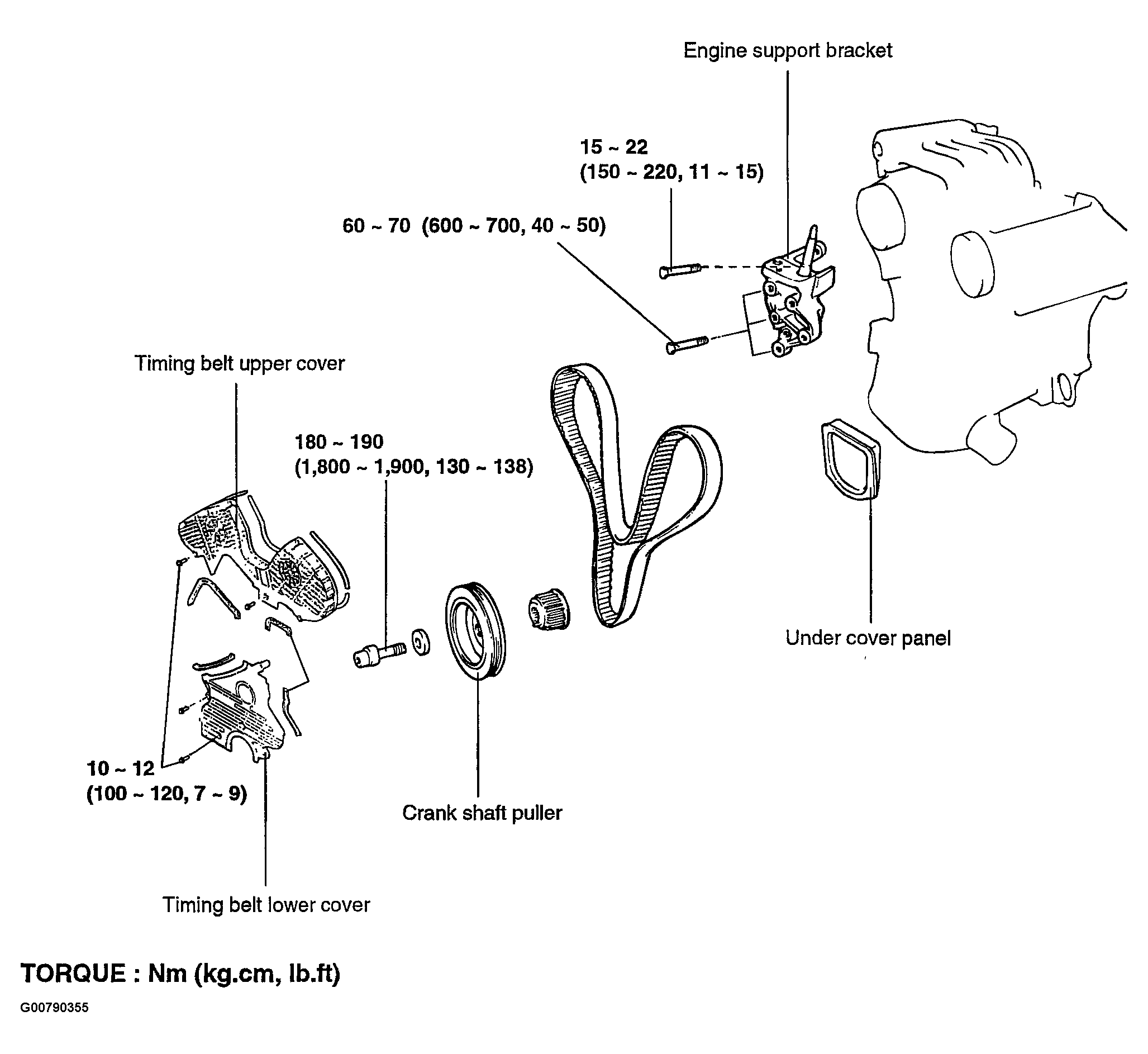

Fig 1: Timing System Components (1 Of 2)
G00790355Courtesy of HYUNDAI MOTOR CO.

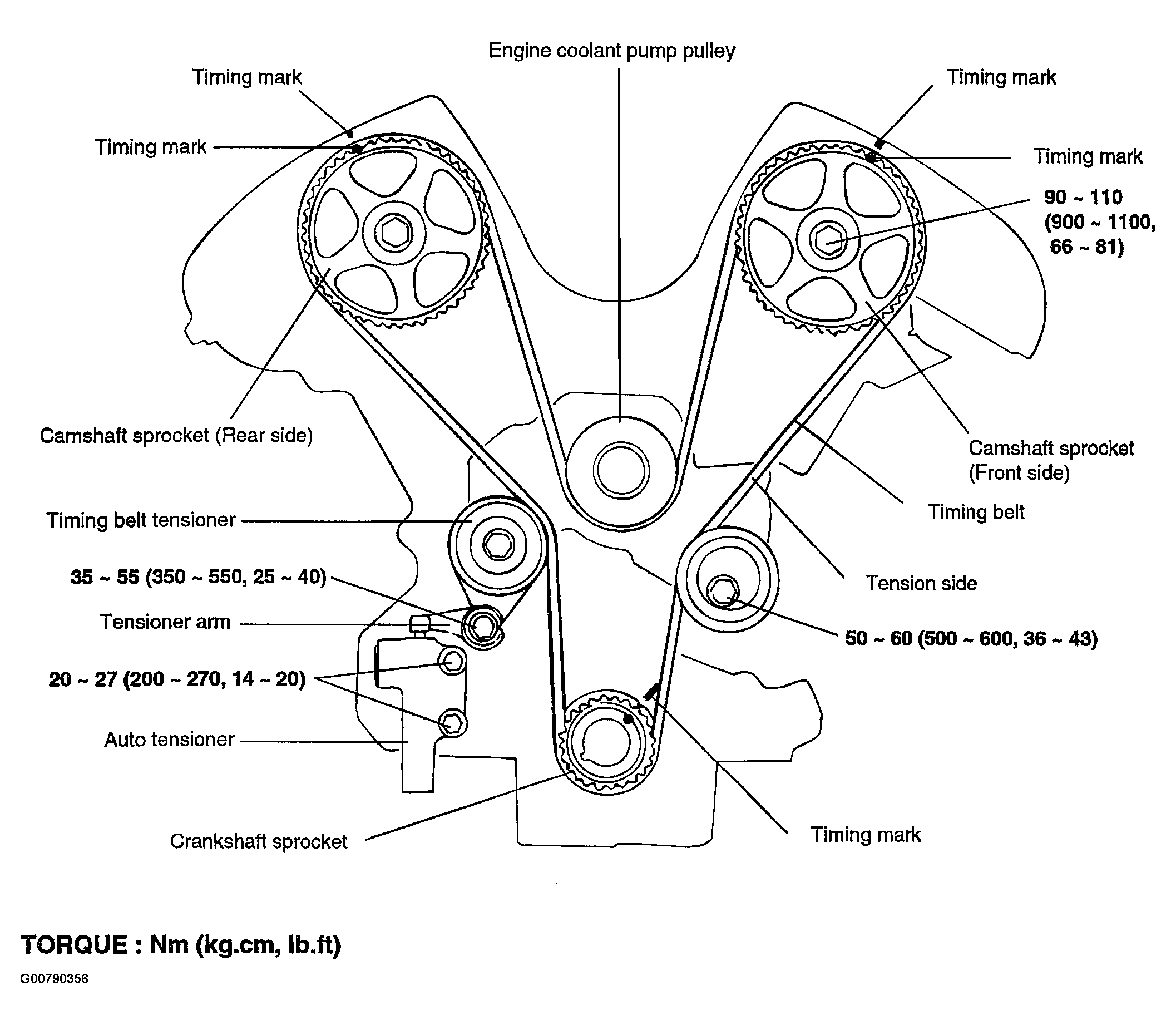

Fig 2: Timing System Components (2 Of 2)
G00790356Courtesy of HYUNDAI MOTOR CO.
