Transaxle Mounting

  1. Remove the transaxle mounting insulator bolts.
  2. Remove the transaxle mounting bracket from the transaxle.

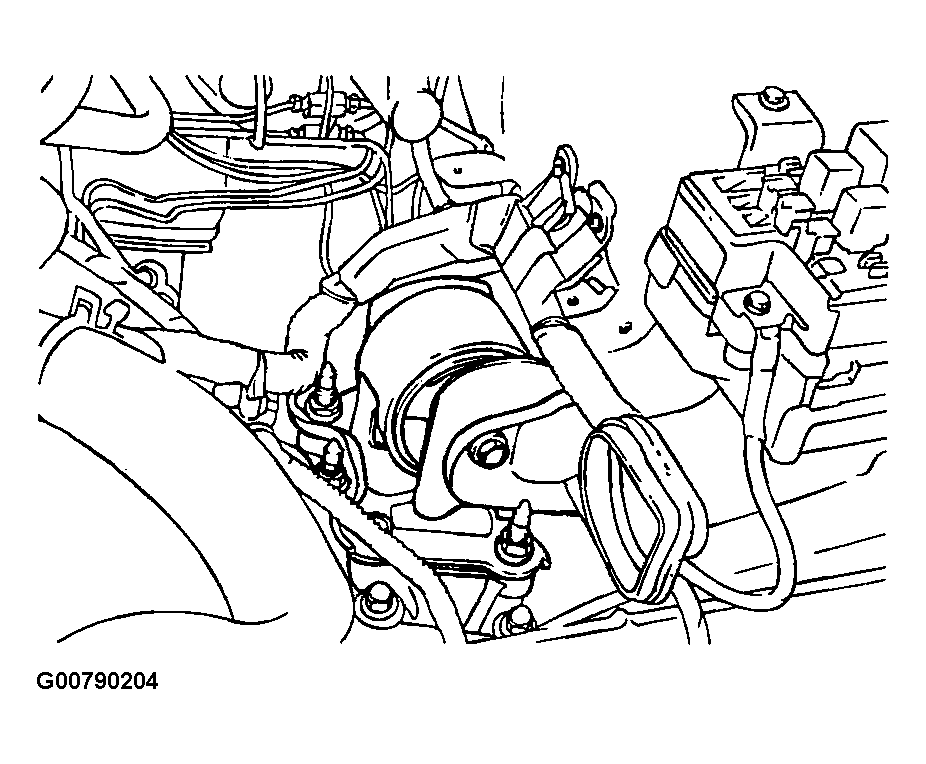

    Fig 1: Identifying Transaxle Bracket
    G00790204Courtesy of HYUNDAI MOTOR CO.
