Charging System - Generator Update

Group
36 - ENGINE
ELECTRICAL

Number
02-36-021

Date
08-2002

Model
Santa Fe 2002

Subject
NEW 2002 SANTA FE 2.7L V6 GENERATOR

DESCRIPTION:

A new generator has been installed on 2002 Santa Fe 2.7L V6 engines beginning February 4, 2002. The differences between the generators are:

1. The generator current output capacity has been increased from 95A to 110A.

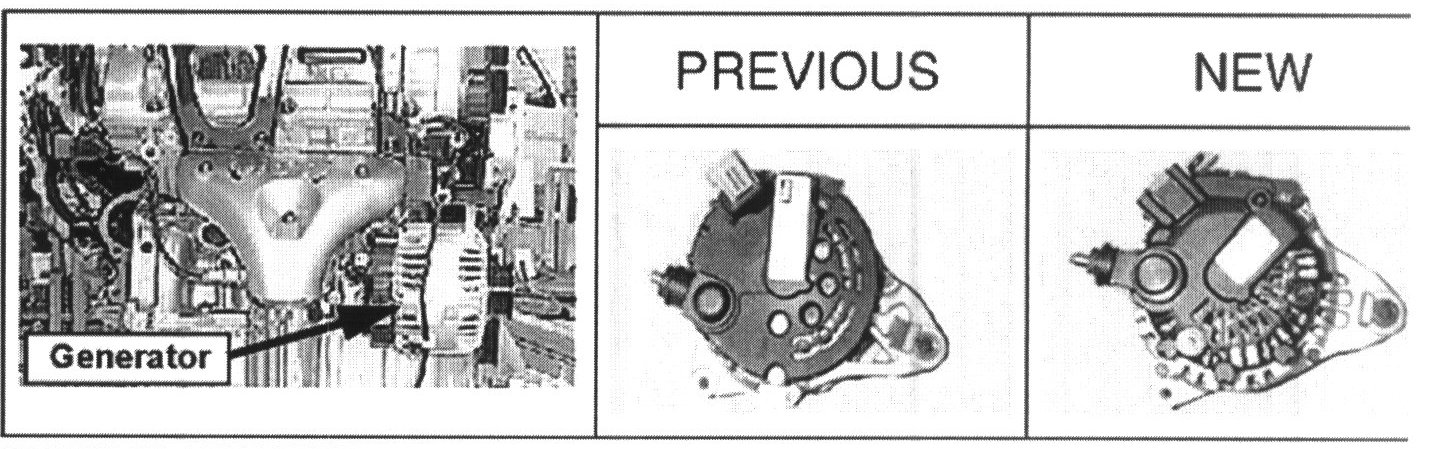

2. The general appearance (see photos) and part numbers are different.

3. The new generator contains a tapped hole to allow for the mounting of an 02 sensor wiring clip.

VEHICLES AFFECTED:
^ Model: 2002 SANTA FE with 2.7L V6 engine

^ Affected vehicle production date range: February 4, 2002

^ Affected VIN range: KM8SC13D42U238719

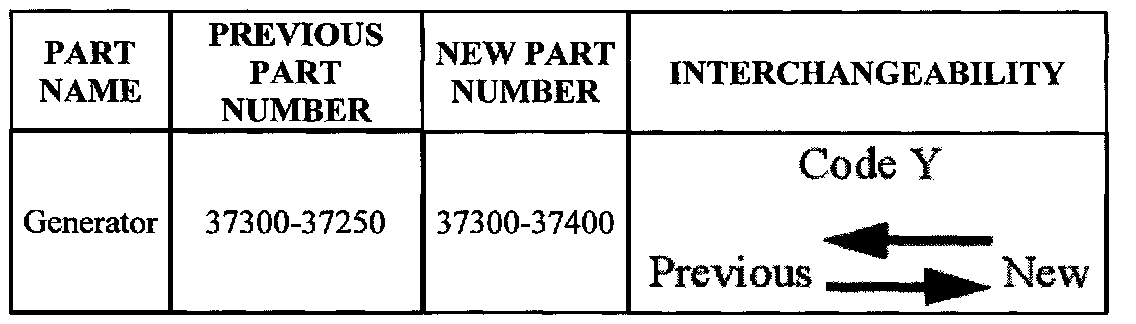

PARTS INFORMATION
