Inspection Procedure 10

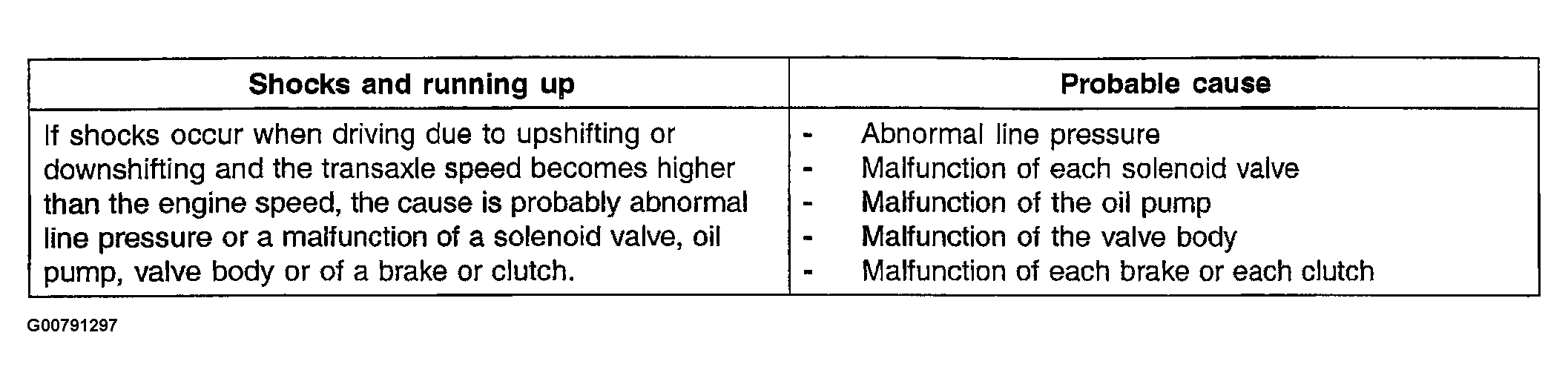

Fig 1: Inspection Procedure 10 Definitions & Probable Causes
G00791297Courtesy of HYUNDAI MOTOR CO.

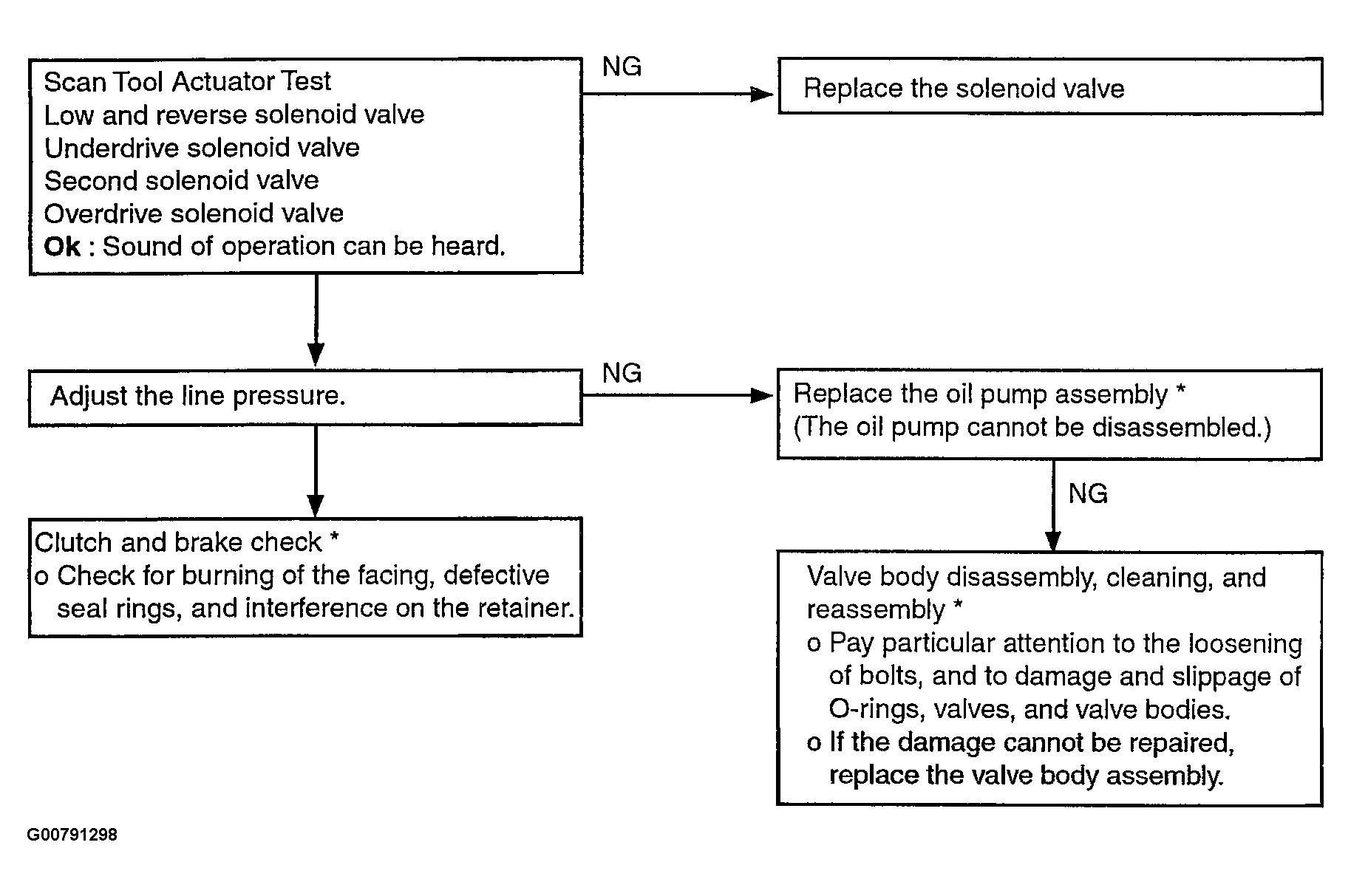

Fig 2: Inspection Procedure 10 Diagnostic Flow Chart
G00791298Courtesy of HYUNDAI MOTOR CO.
