Immobilizer Control System
>>
System Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Block Diagram

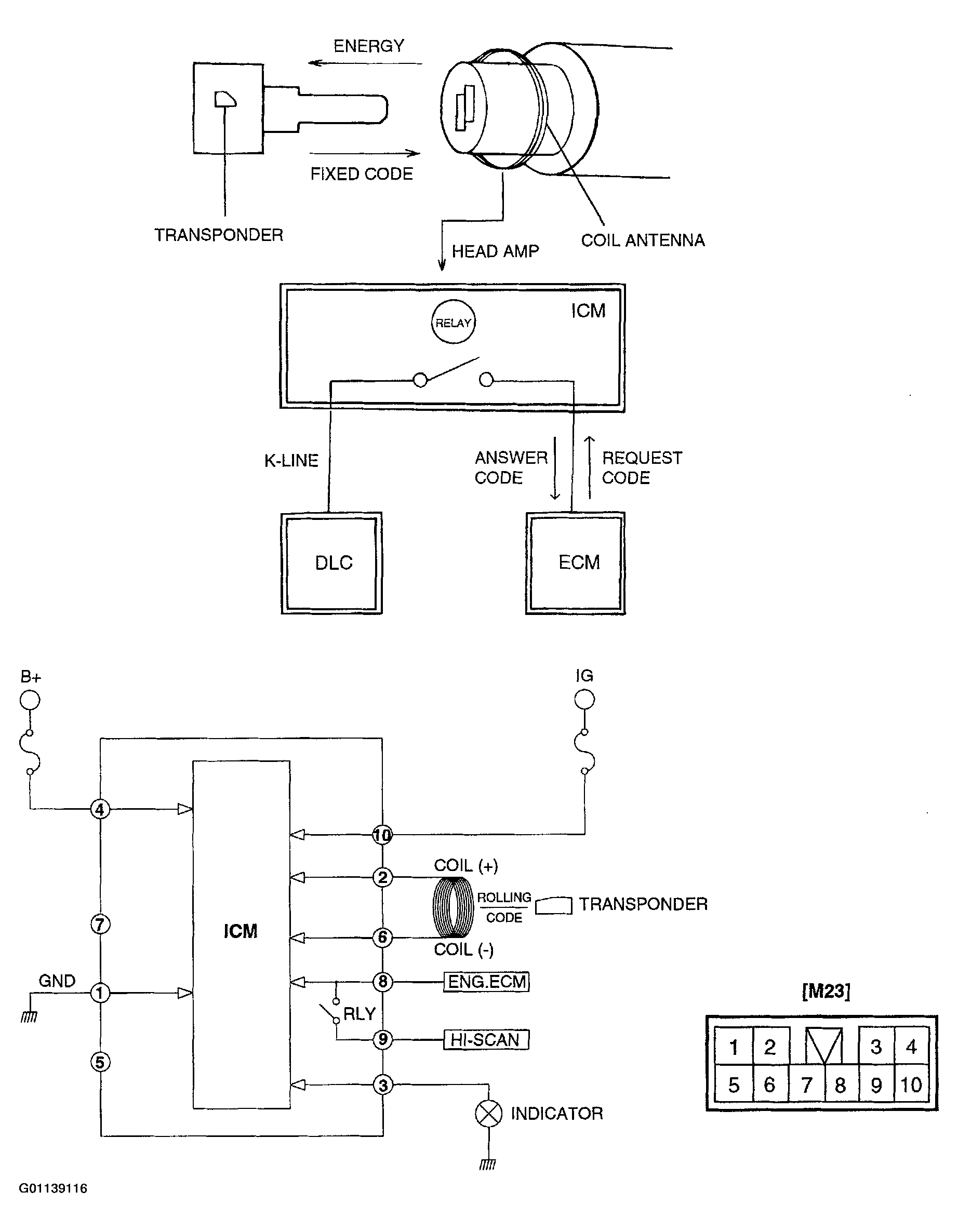

Fig 1: Immobilizer Control System Block Diagram
Courtesy of HYUNDAI MOTOR CO.
