Canada - Engine Controls - Coolant Temp Sensor Torque Specs

GROUP
S.S.T.

NO.
02-09-001

DATE
SEPTEMBER 20/02

MODEL
2001-2002 ACCENT

SUBJECT
TIGHTENING TORQUE SPECIFICATION AND
SPECIAL TOOL FOR ENGINE COOLANT
TEMPERATURE SENSOR





The Accent shop manual indicates conflicting information regarding the correct tightening torque for the ECT (Engine Coolant Temperature) sensor and does not indicate the need for a special tool for proper removal and installation.

AFFECTED VEHICLES:

2001-2002 MY ACCENT vehicles with 1.6L DOHC engines.

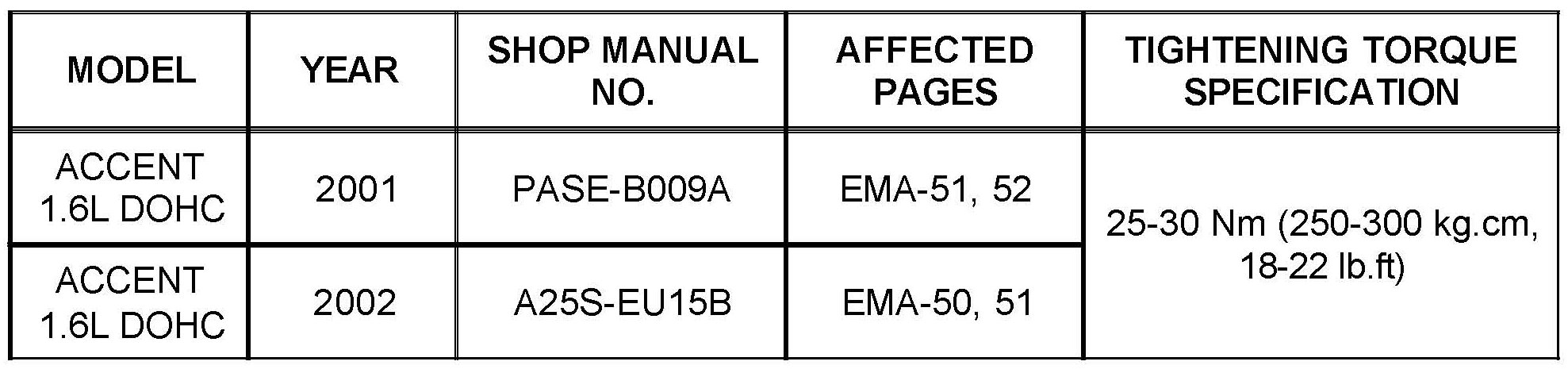

CORRECTED INFORMATION:

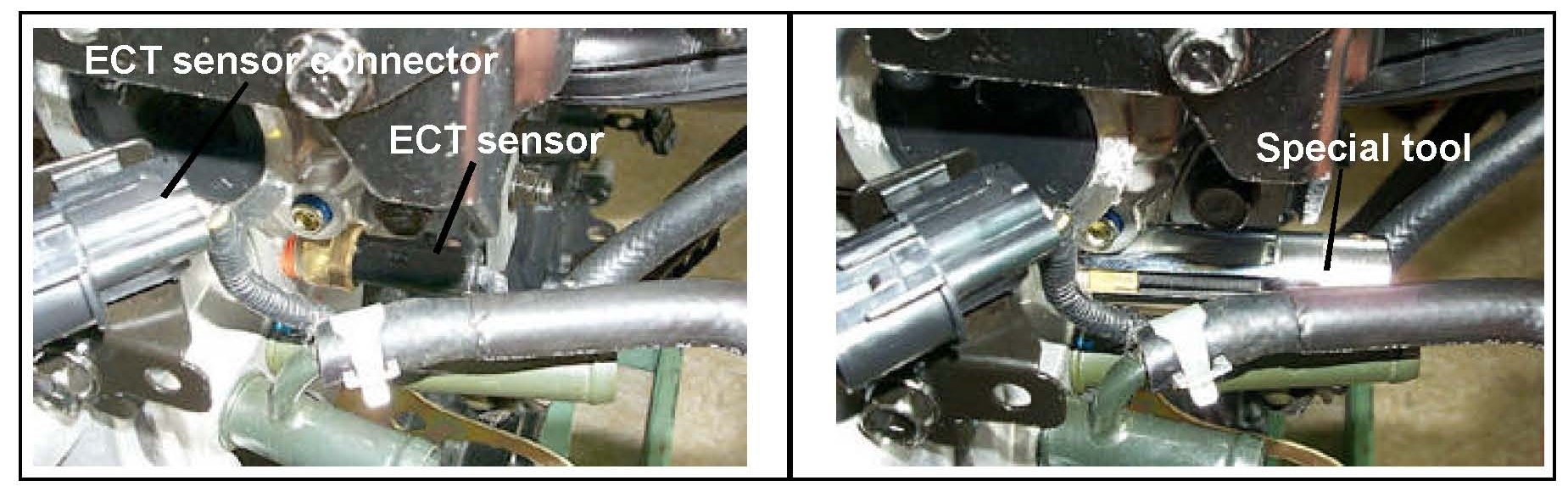

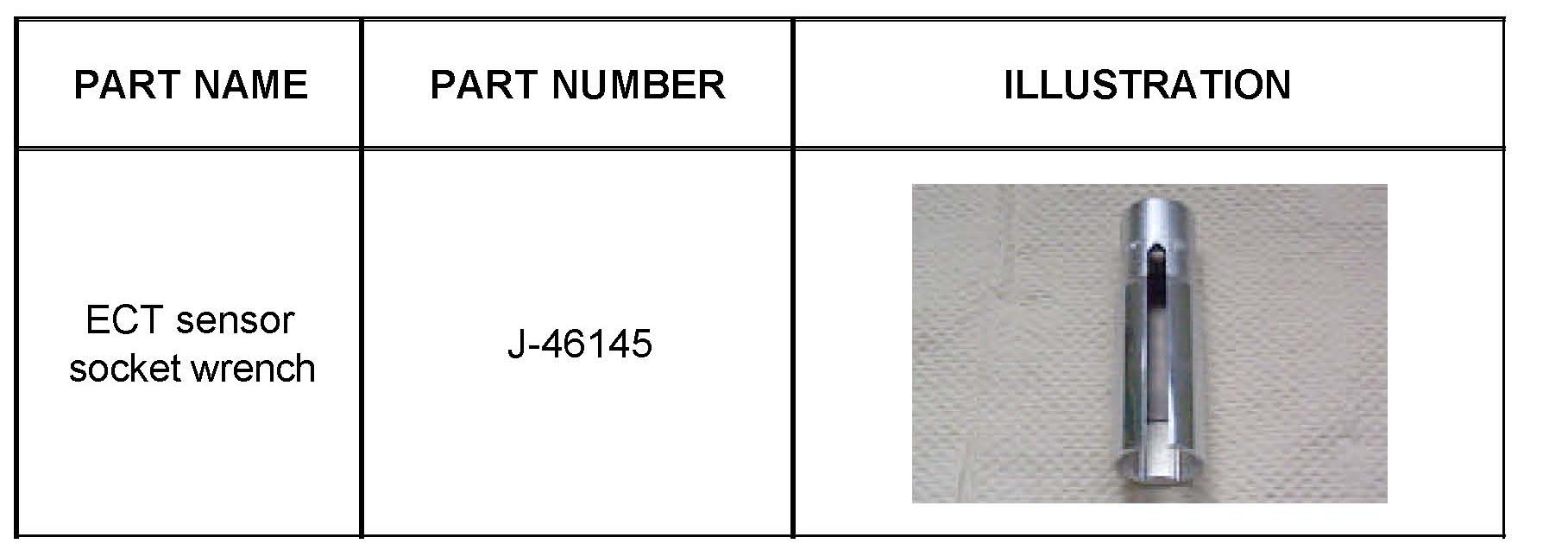

SPECIAL TOOL INFORMATION:
