Connector Locations

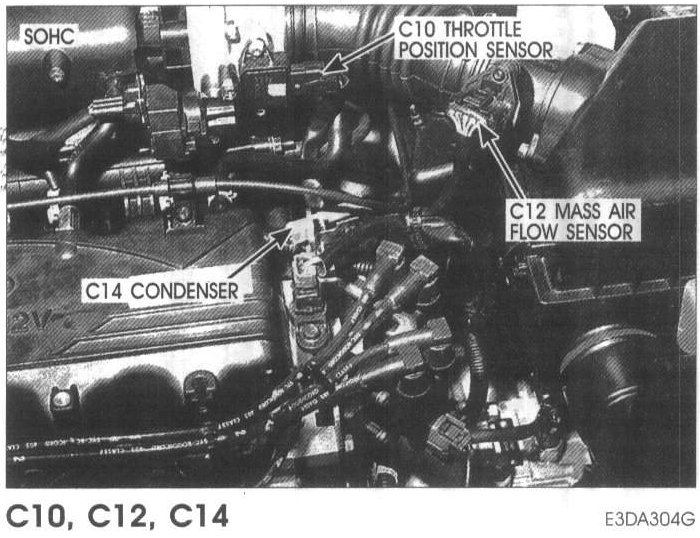

C10 Throttle Position Sensor, C12 Mass Air Flow Sensor, C14 Condenser:

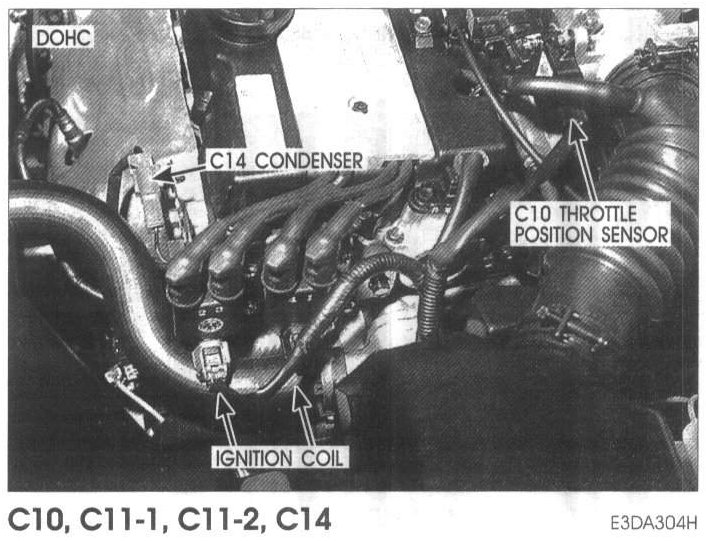

C10 Throttle Position Sensor, C11-1 Ignition Coil #1, C11-2 Ignition Coil #2, C14 Condenser:
