Inspection Procedure 12

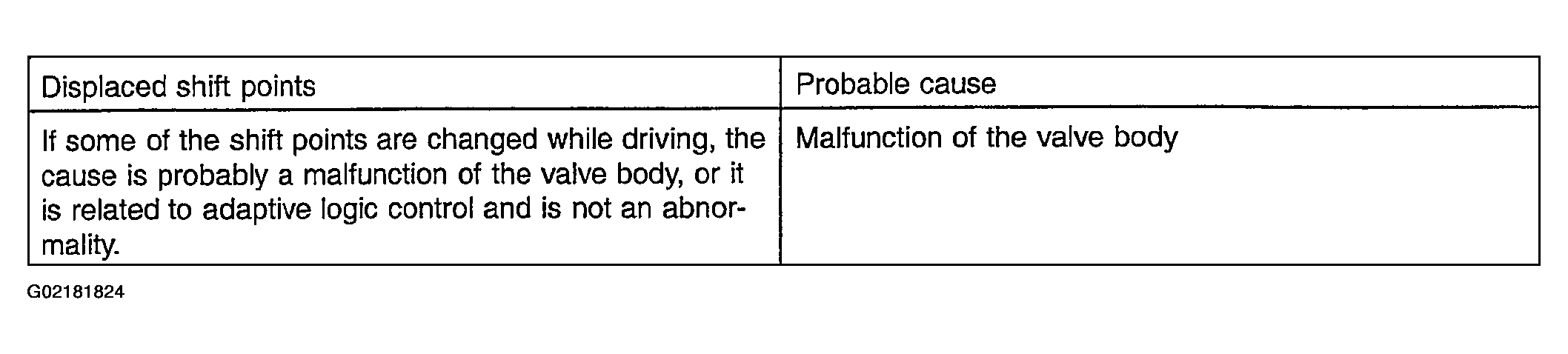

Fig 1: Displaced Shifting Points Possible Causes Table
G02181824

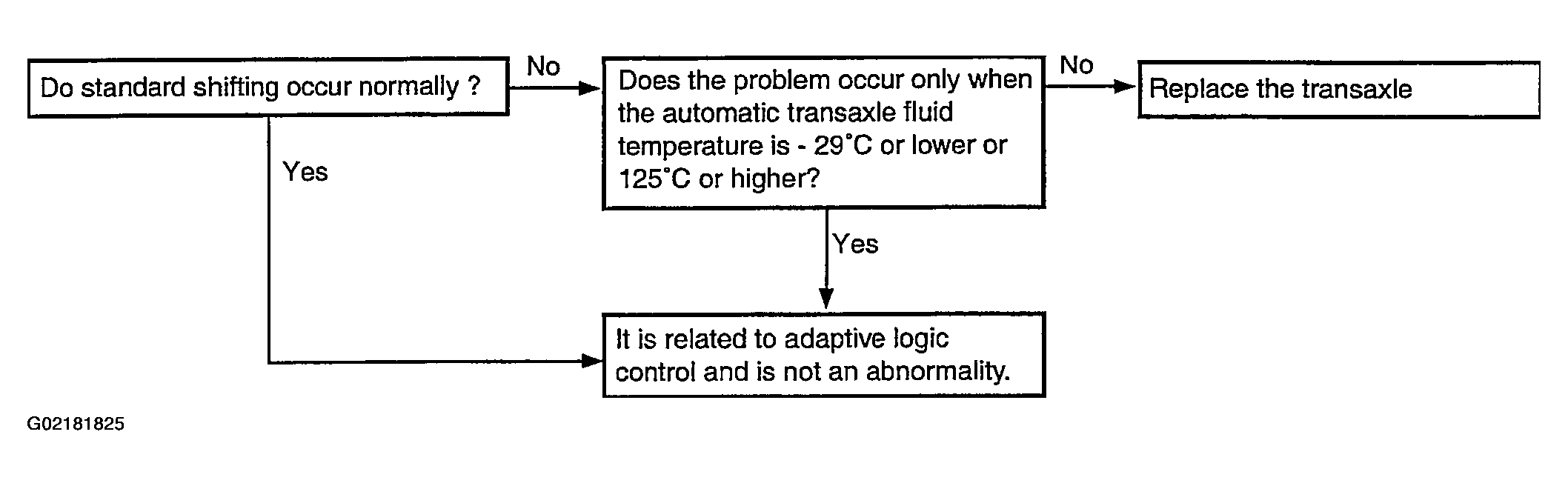

Fig 2: Displaced Shifting Points Diagnostic Flow Chart
G02181825
