Ignition Coil Resistance (XG 300)

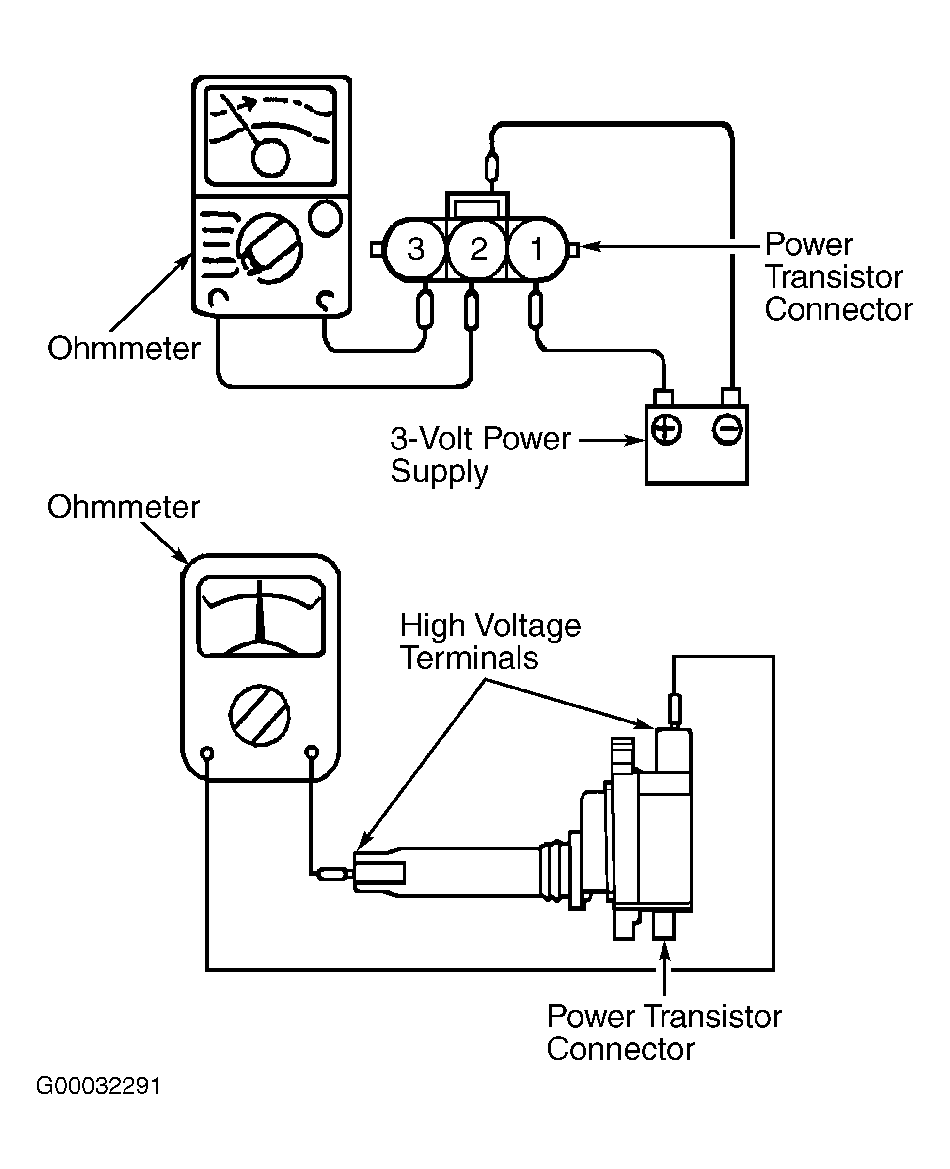

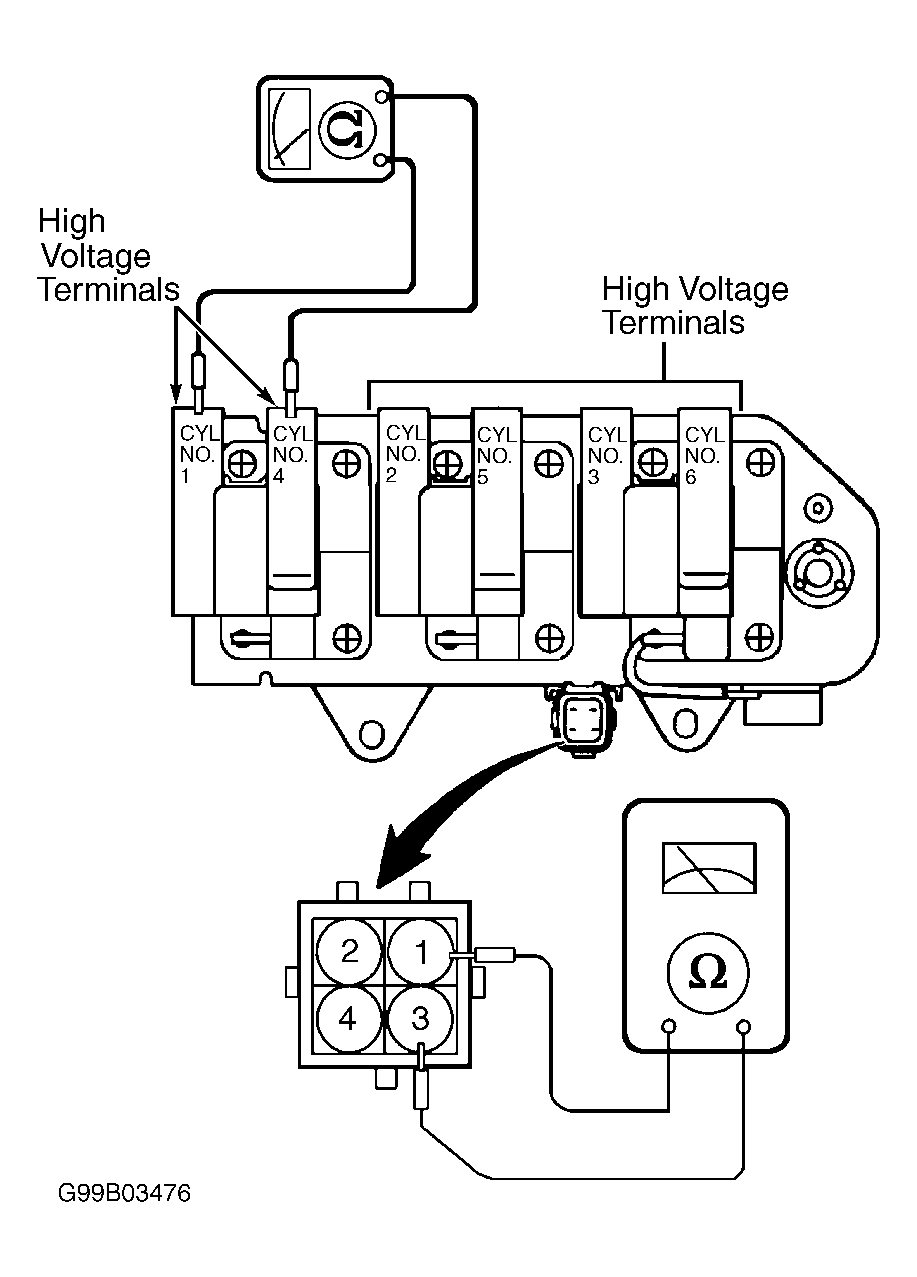

- Disconnect ignition coil 4-pin connector. Measure primary coil resistance for cylinders No. 1 and 4 between connector terminals No. 1 (Pink/Black wire) and 4 (White wire). Measure primary coil resistance for cylinders No. 2 and 5 between connector terminals No. 1 (Pink/Black wire) and 3 (Orange wire). Measure primary coil resistance for cylinders No. 3 and 6 between coil connector terminals No. 1 (Pink/Black wire) and 2 (Green/White wire). See Figure. See DIS IGNITION COIL RESISTANCE table. If resistance is not as specified, replace coil.
- To check secondary coil resistance, disconnect spark plug wires. Measure resistance between high-voltage coil terminals No. 1 and 4, between terminals No. 2 and 5, and between terminals No. 3 and 6. See Figure. See DIS IGNITION COIL RESISTANCE table. If resistance is not as specified, replace coil.
DIS IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application |
Primary |
Secondary |
| Accent, Elantra & Tiburon |
0.45-0.55 |
10,300-13,900 |
| Santa Fe |
| 2.4L |
0.86 |
12,100 |
| 2.7L |
0.67-0.81 |
11,000-15,000 |
| Sonata |
| 2.4L |
0.78 |
20,000 |
| 2.5L |
0.67-0.81 |
11,305-15,295 |
| XG 300 |
0.67-0.81 |
11,305-15,295 |
