Inspection Procedure 12

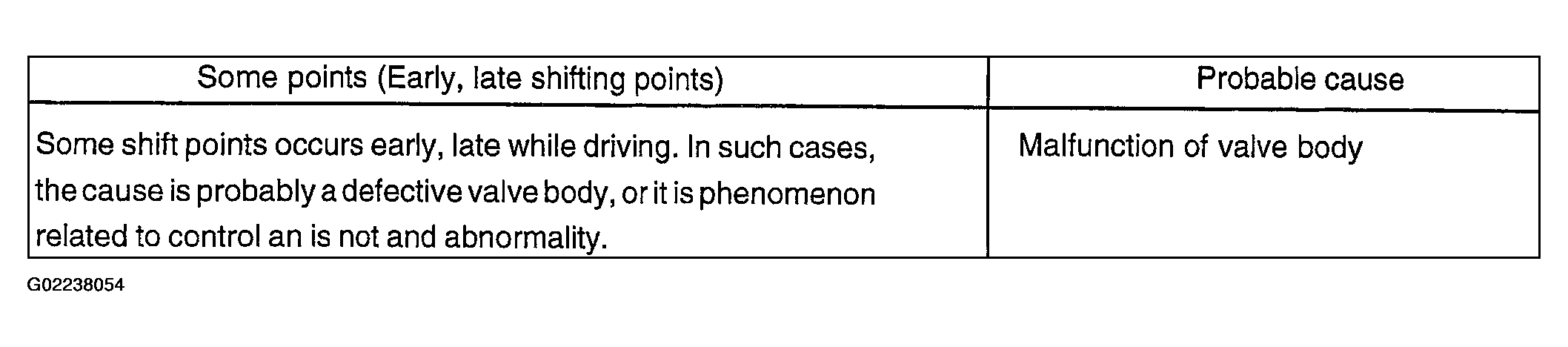

Fig 1: Some Points (Displaced Shifting Points), Possible Causes Table
G02238054

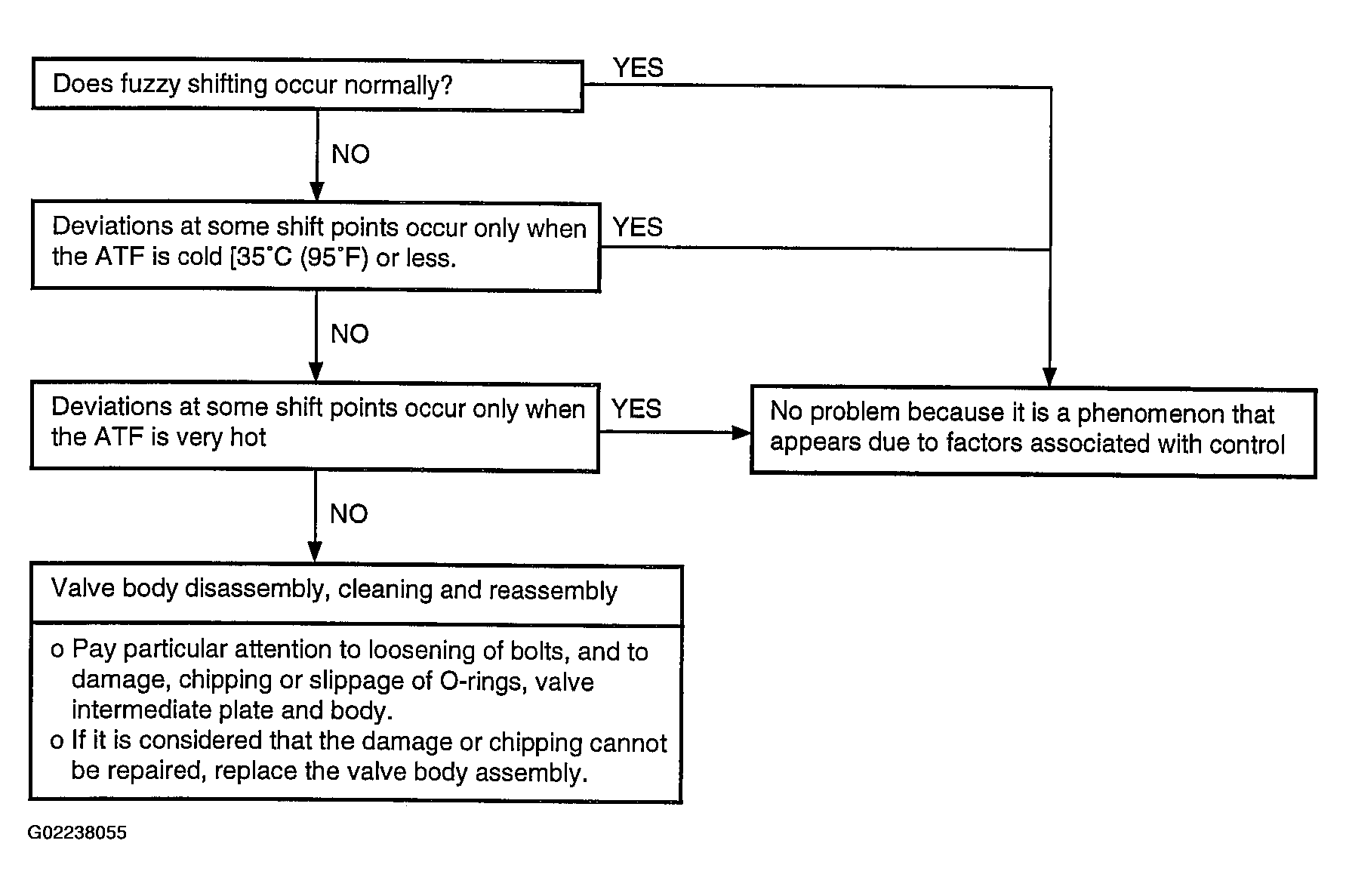

Fig 2: Some Points (Displaced Shifting Points), Diagnostic Flow Chart
G02238055
