Electrical Diagrams

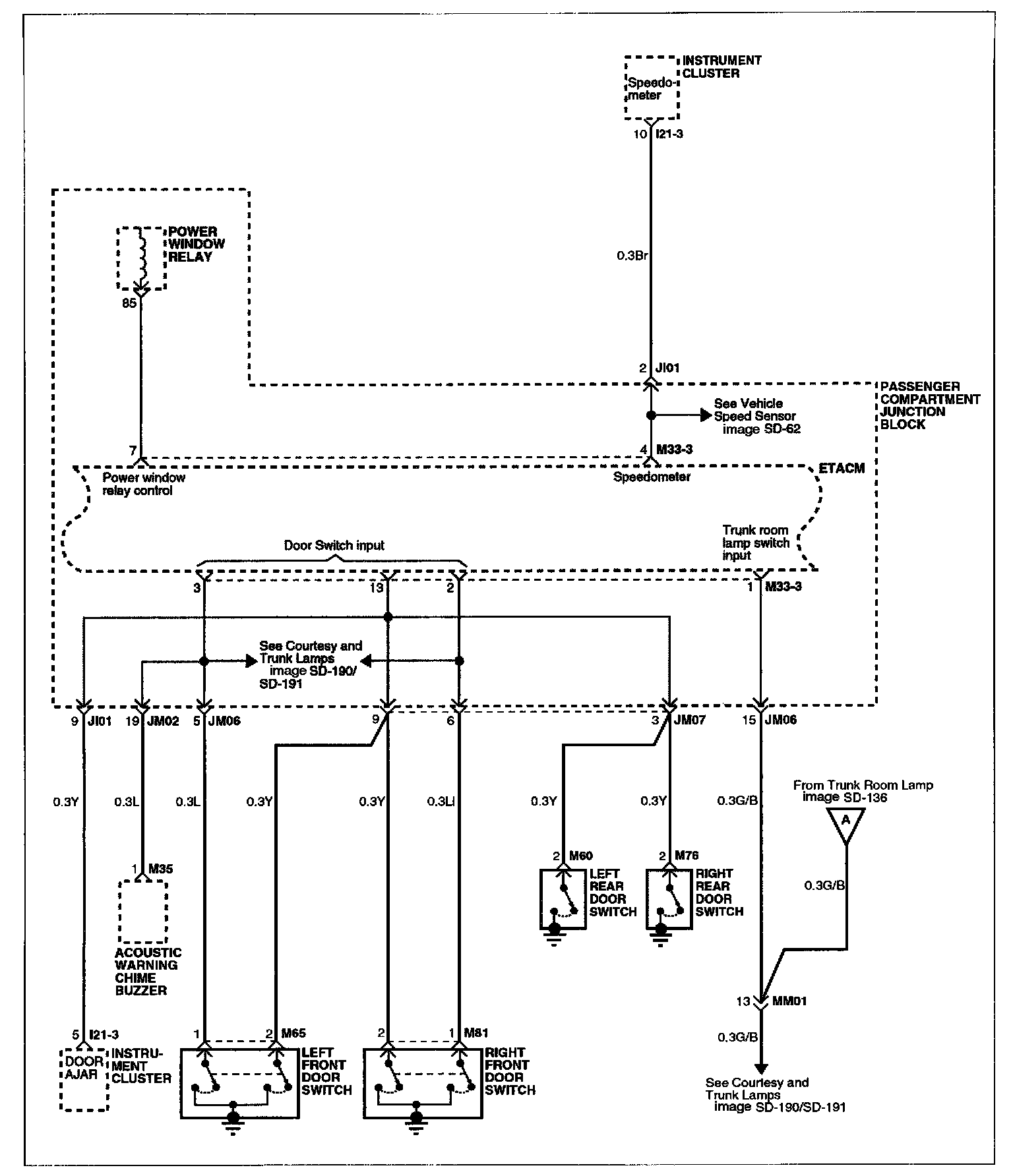

Image SD-132 - ETACS (Electronic Time & Alarm Control System) (1):

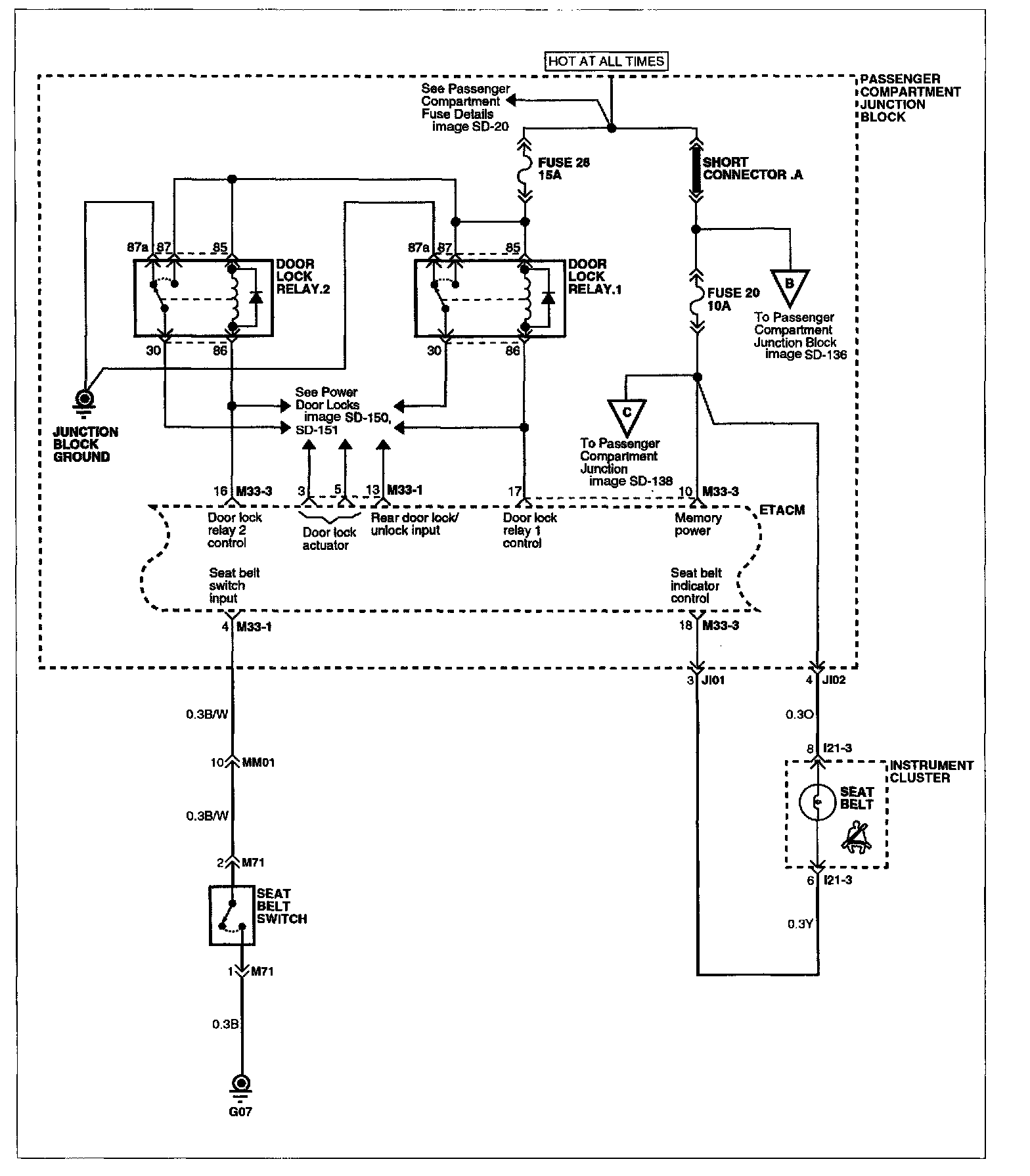

Image SD-133 - ETACS (Electronic Time & Alarm Control System) (2):

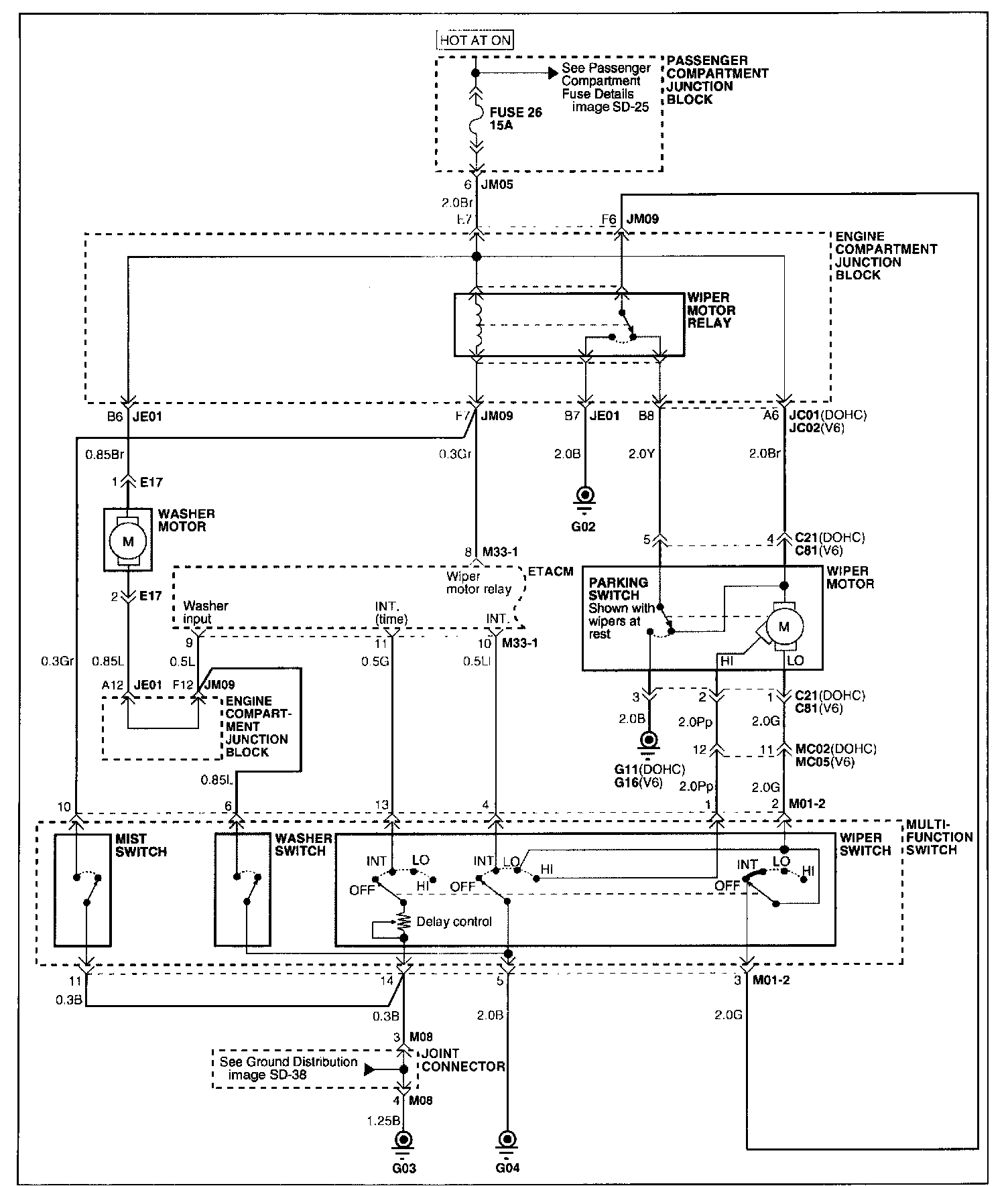

Image SD-134 - ETACS (Electronic Time & Alarm Control System) (3):

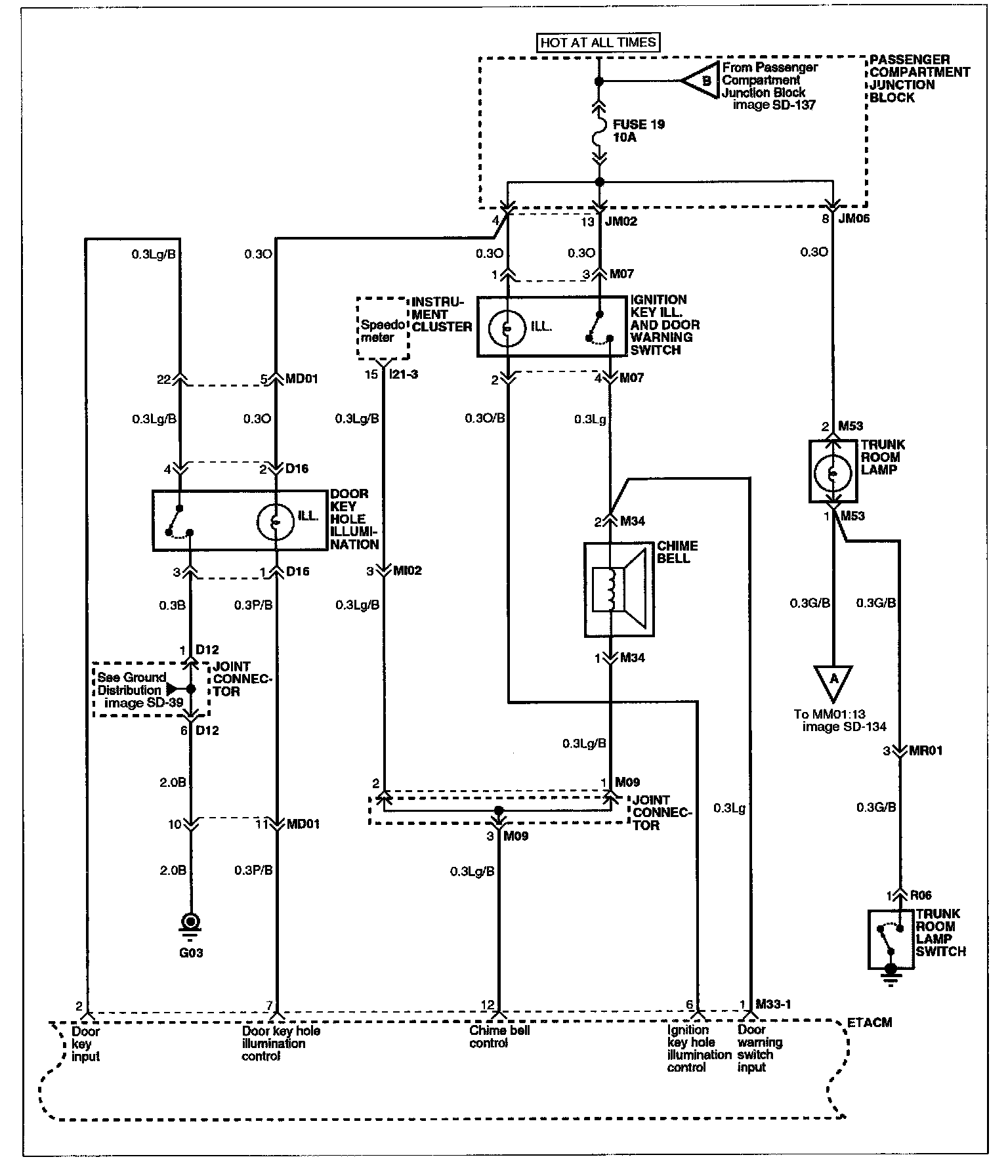

Image SD-135 - ETACS (Electronic Time & Alarm Control System) (4):

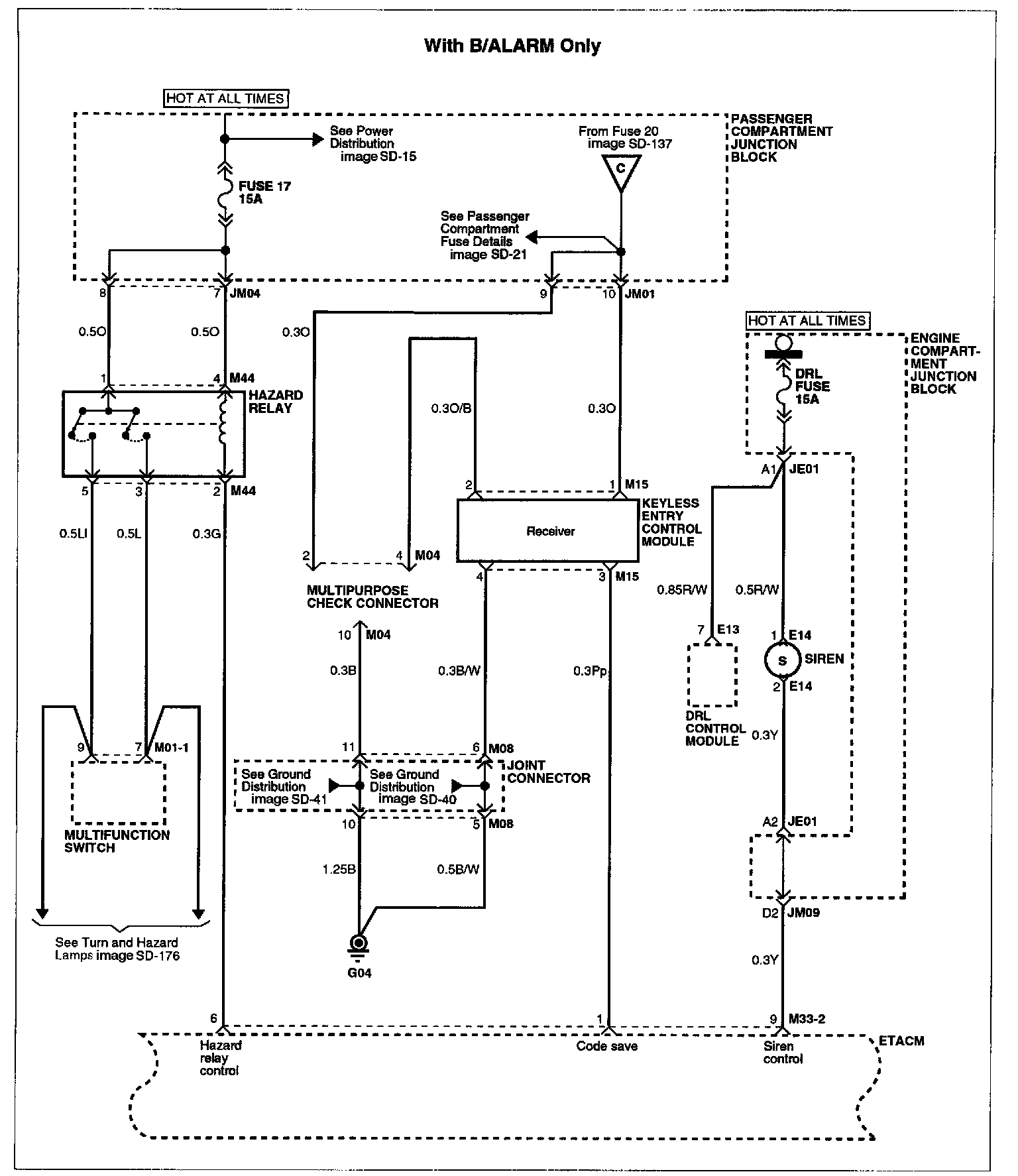

Image SD-136 - ETACS (Electronic Time & Alarm Control System) (5):

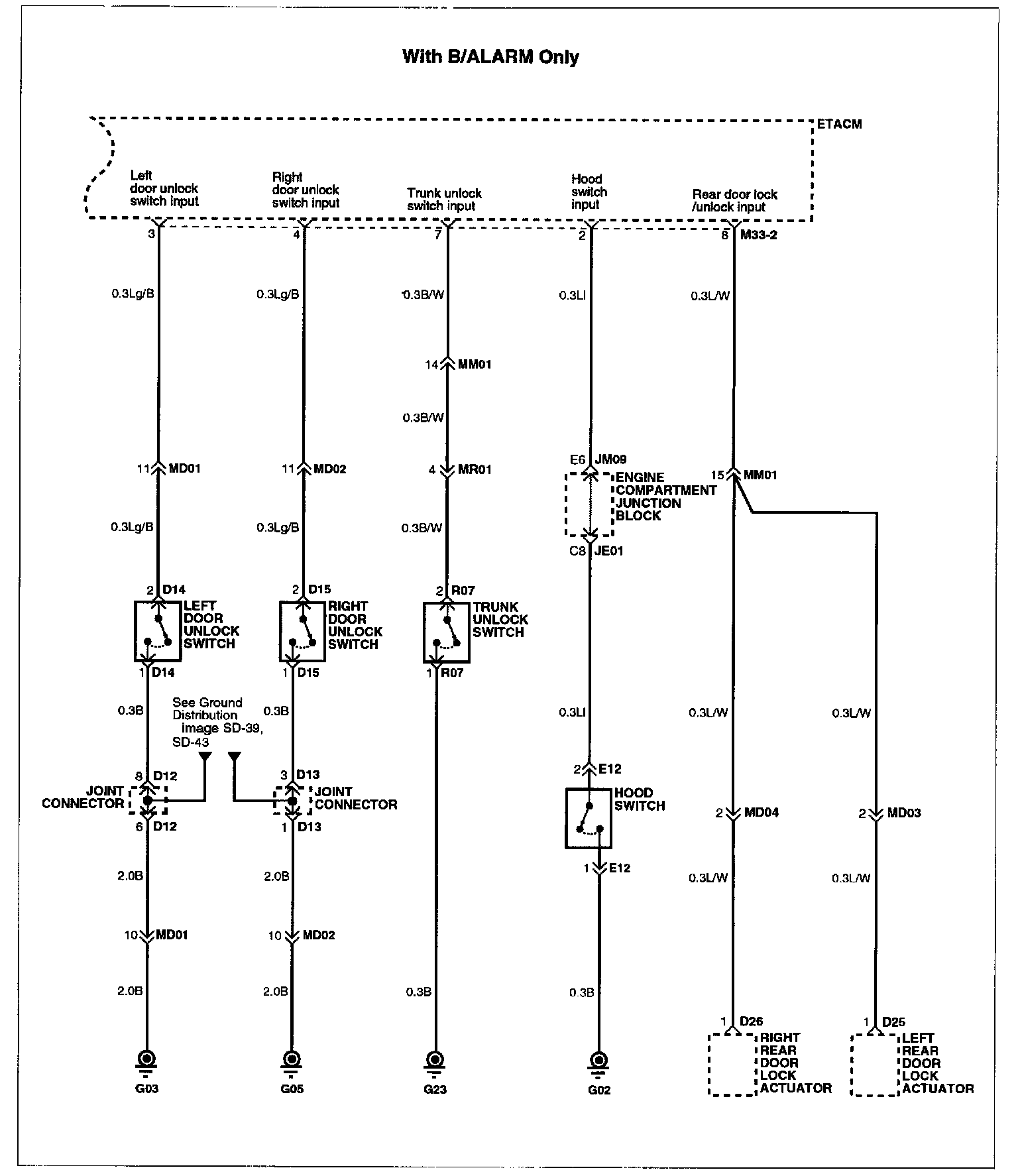

Image SD-137 - ETACS (Electronic Time & Alarm Control System) (6):

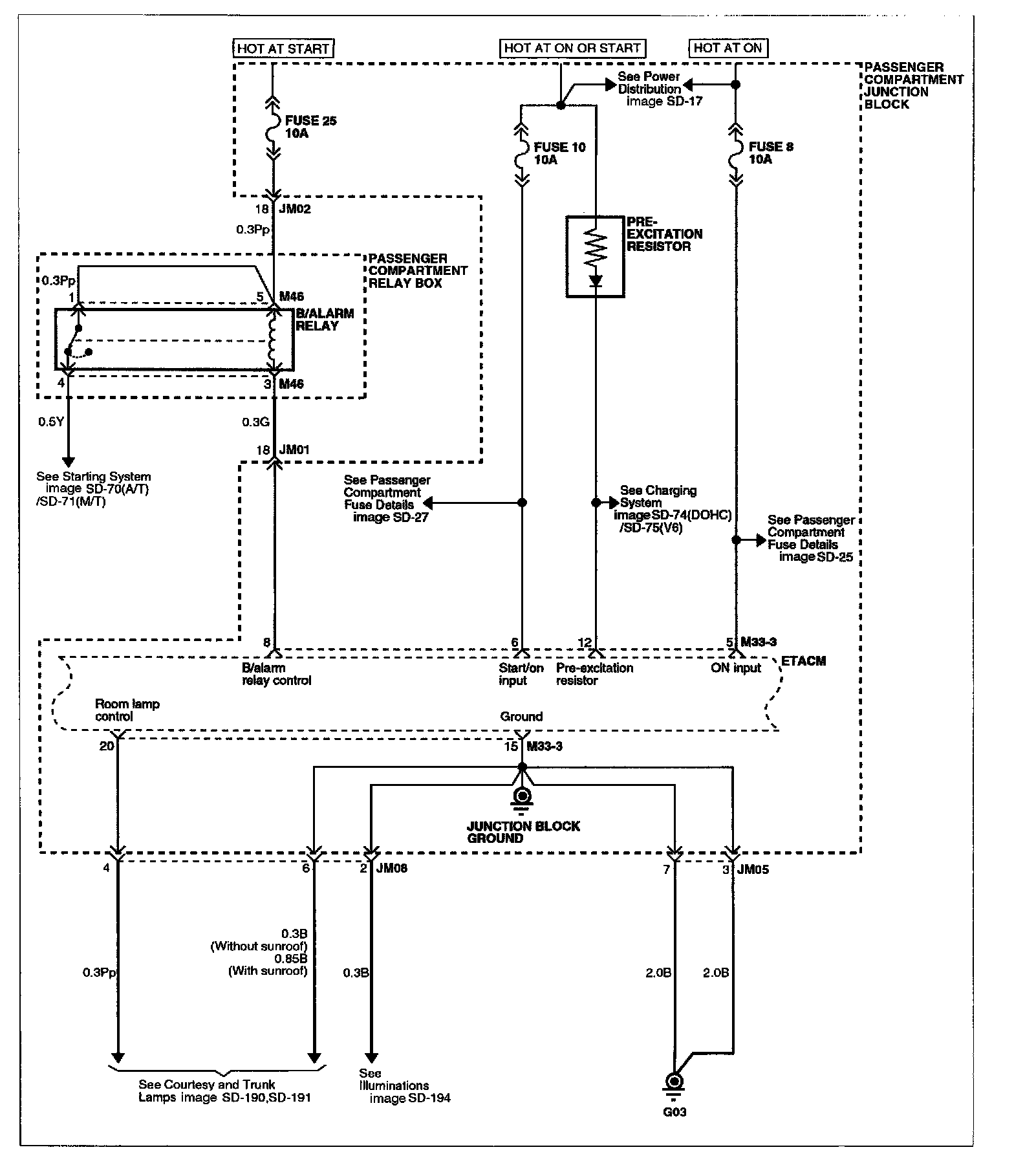

Image SD-138 - ETACS (Electronic Time & Alarm Control System) (7):

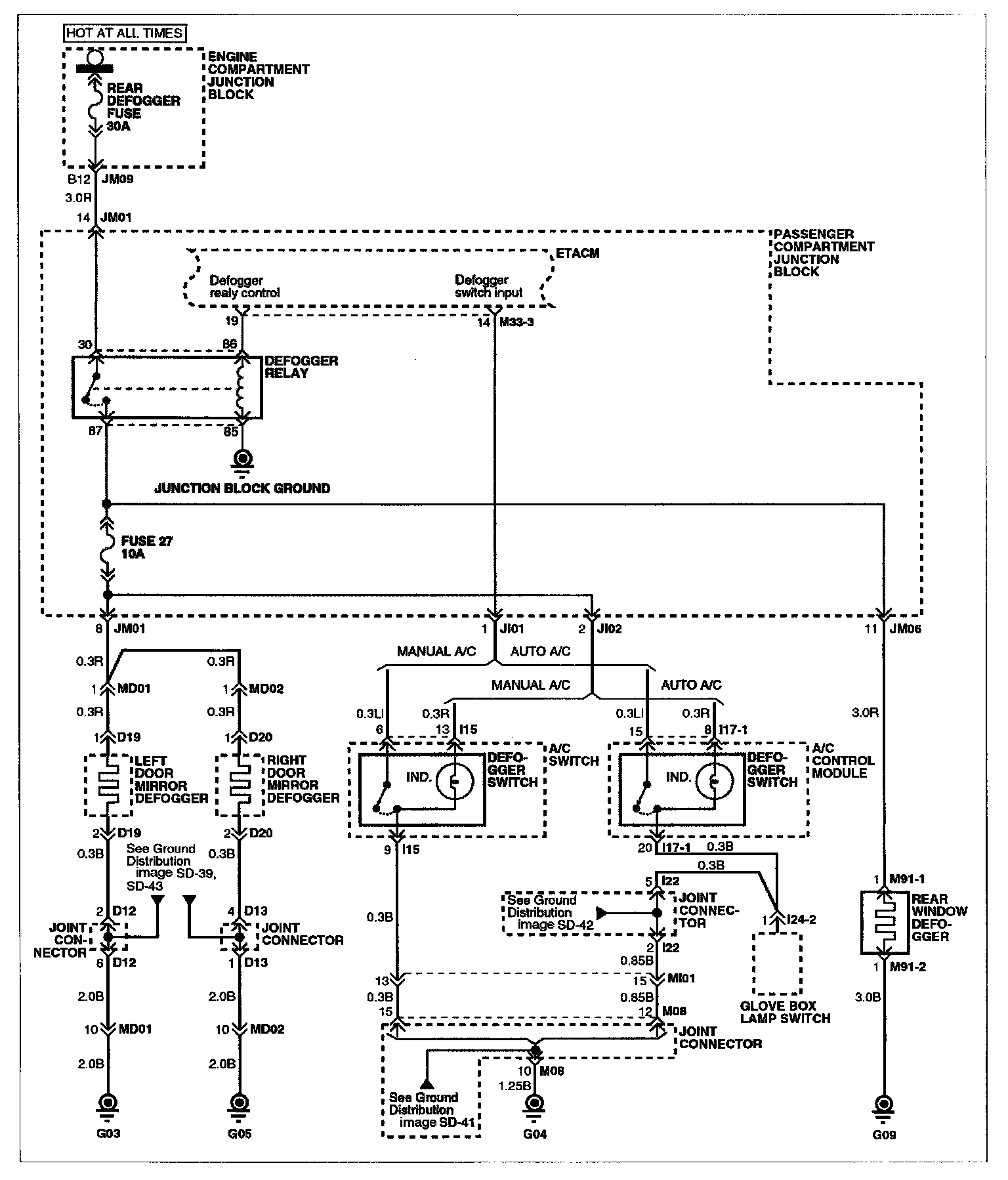

Image SD-139 - ETACS (Electronic Time & Alarm Control System) (8):
