Inspection Procedure 11

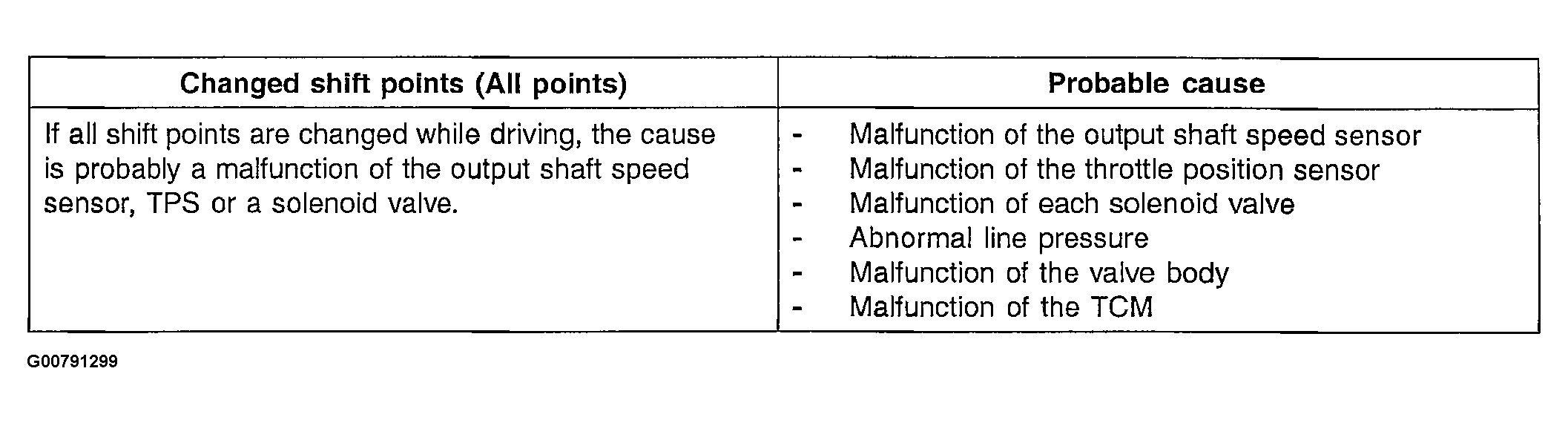

Fig 1: Inspection Procedure 11 Definitions & Probable Causes
G00791299Courtesy of HYUNDAI MOTOR CO.

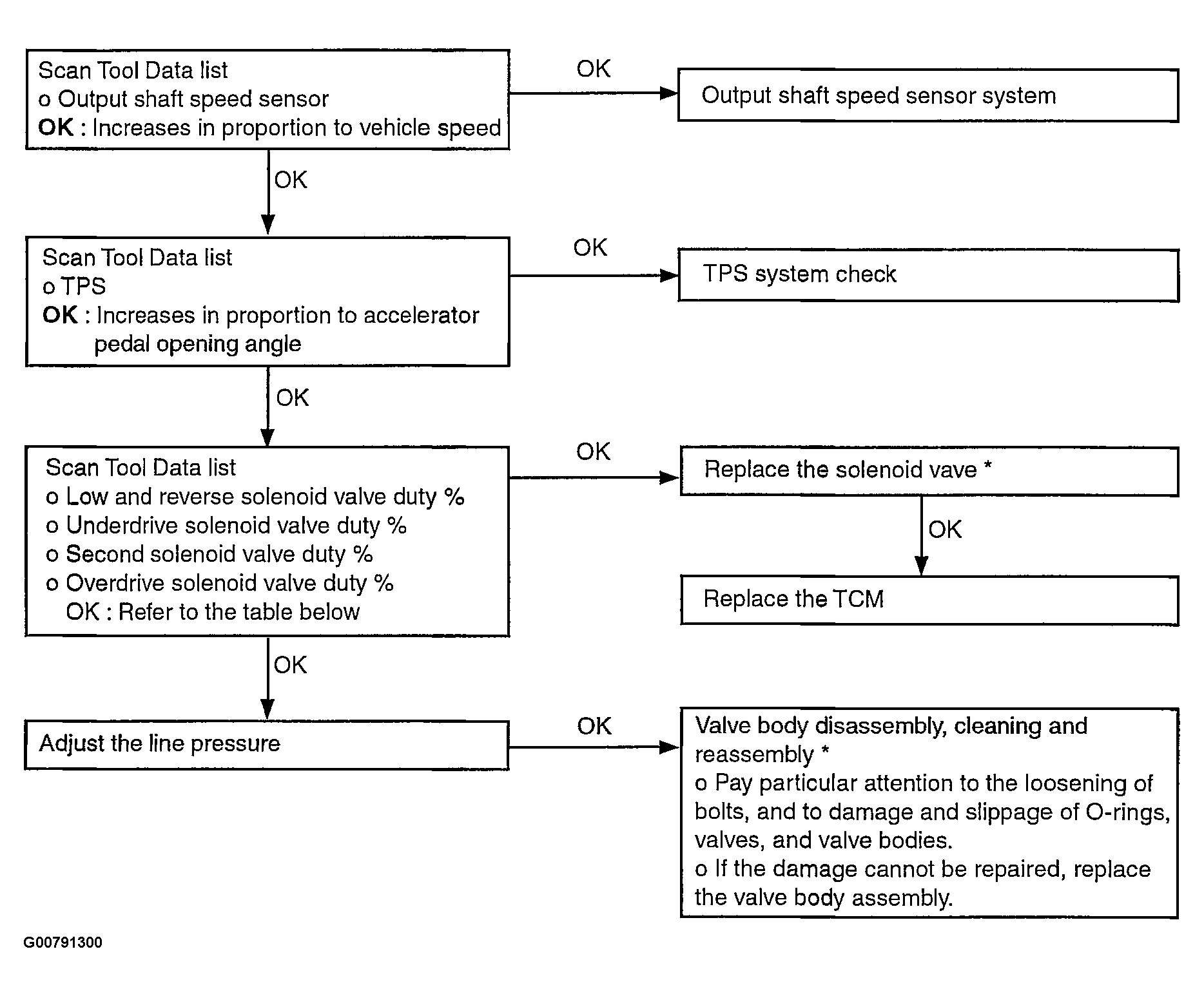

Fig 2: Inspection Procedure 11 Diagnostic Flow Chart
G00791300Courtesy of HYUNDAI MOTOR CO.
