Automatic Transaxle Hydraulic Circuit: Fourth

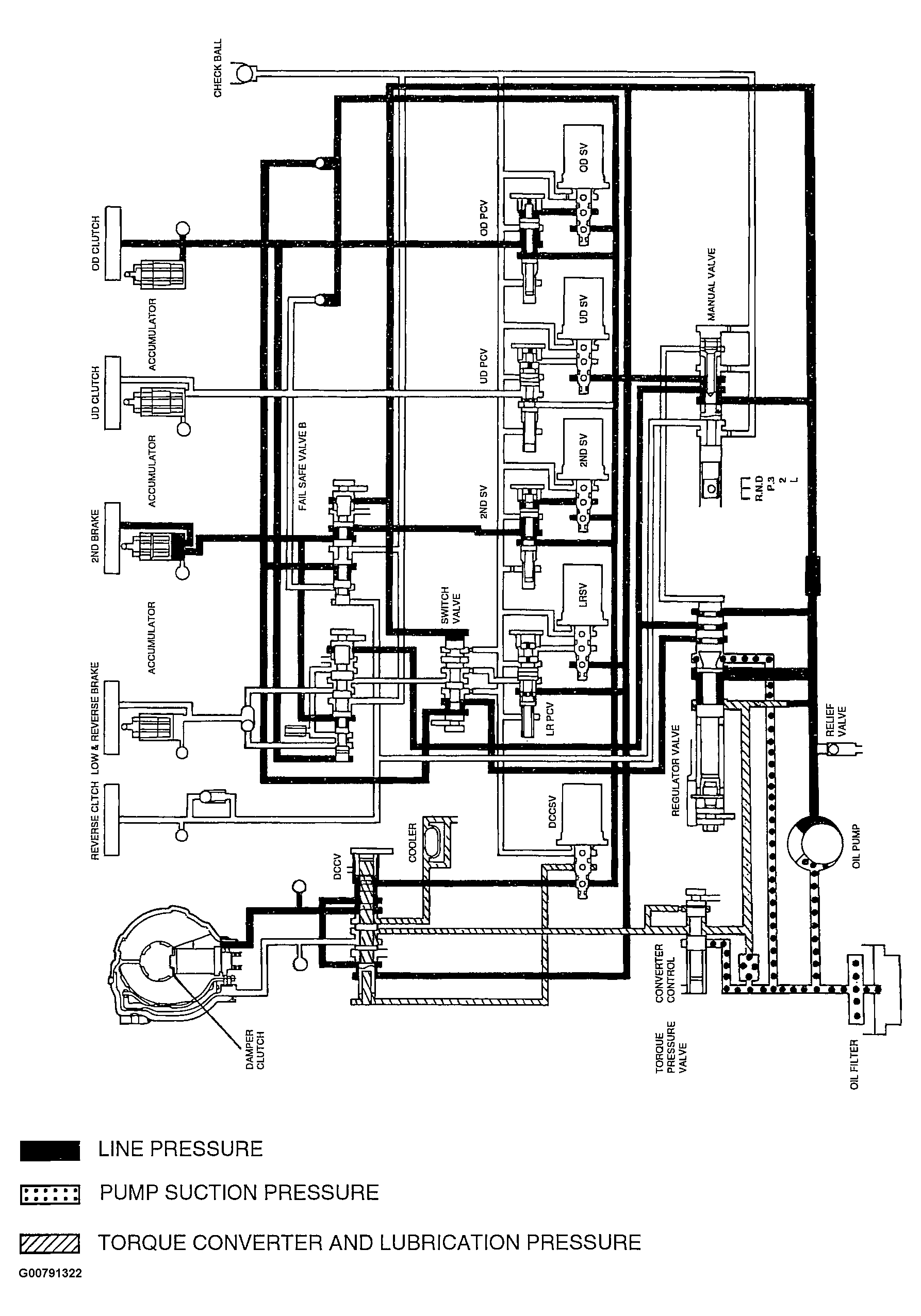

Fig 1: Fourth Gear Hydraulic Circuit

G00791322

Courtesy of HYUNDAI MOTOR CO.
