Power Window Relay: Locations

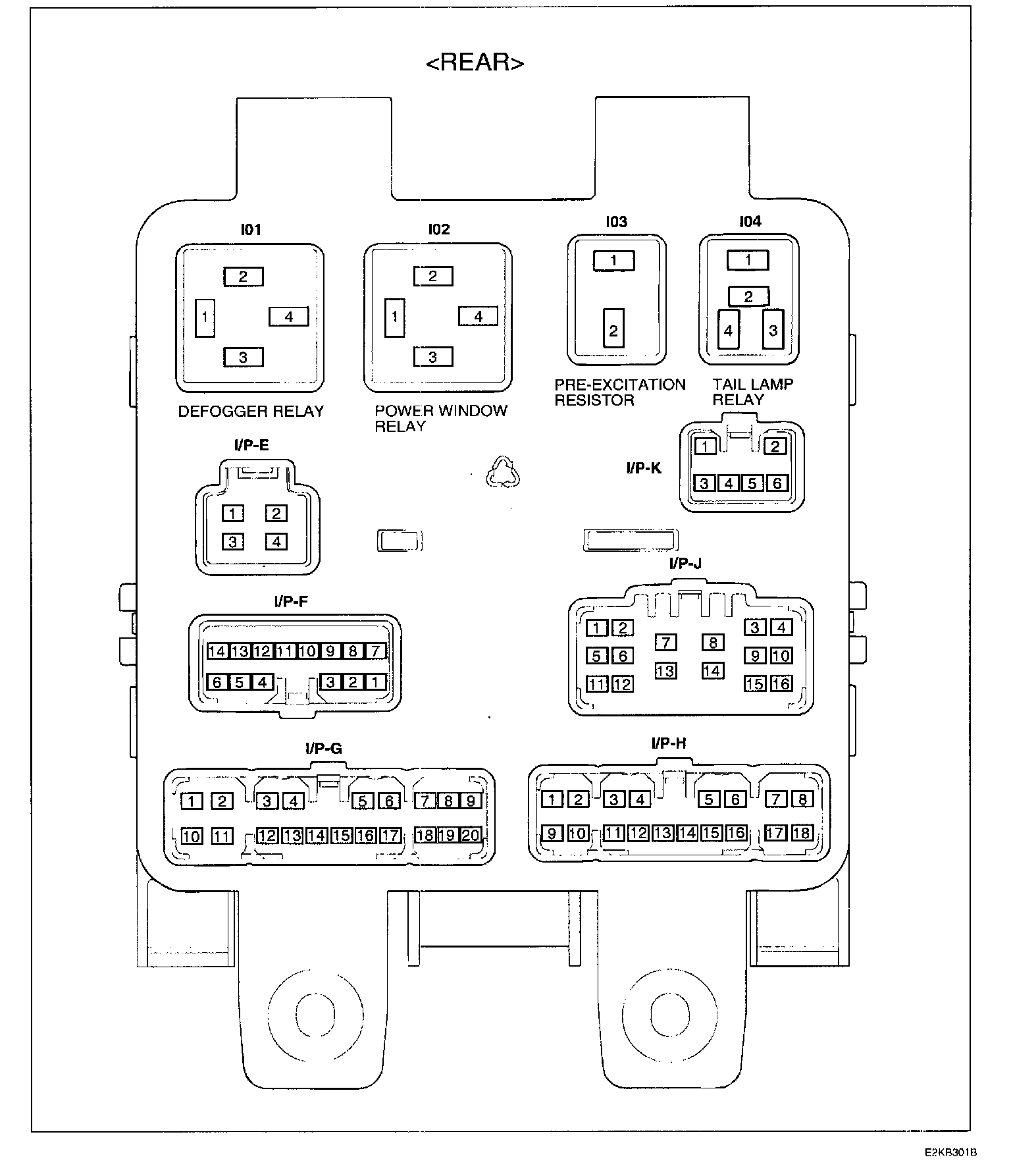

Passenger Compartment Junction Block: Layout:

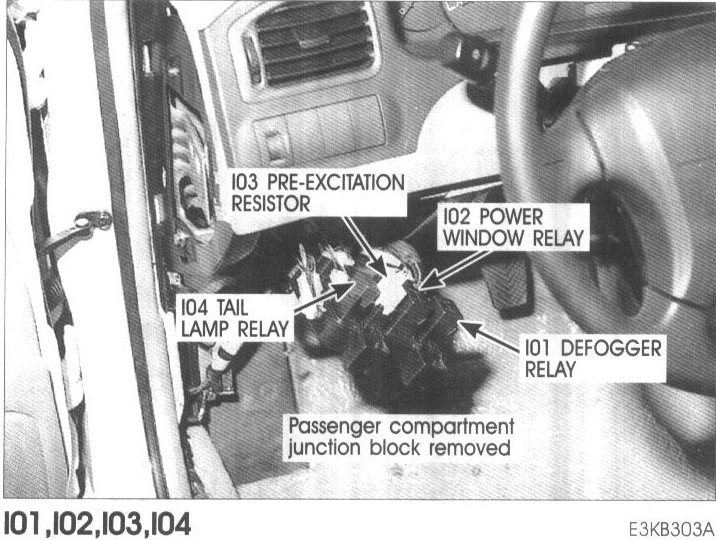

I01 Defogger Relay, I02 Power Window Relay, I03 Pre-excitation Resistor, I04 Tail Lamp Relay:
