Connector Locations

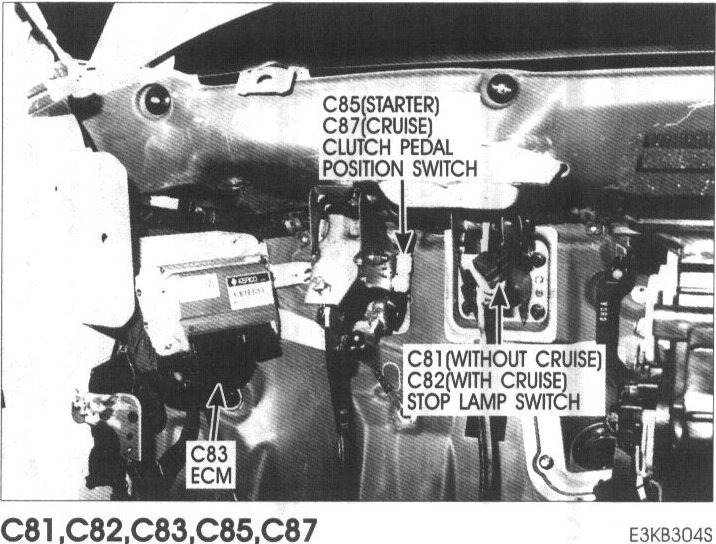

C81 Stop Lamp Switch (W/O Cruise), C82 Stop Lamp Switch (With Cruise), C83 ECM, C85 Starter Clutch Pedal Position Switch (M/T), C87 Cruise Clutch Pedal Position Sensor (M/T):
