Symbols

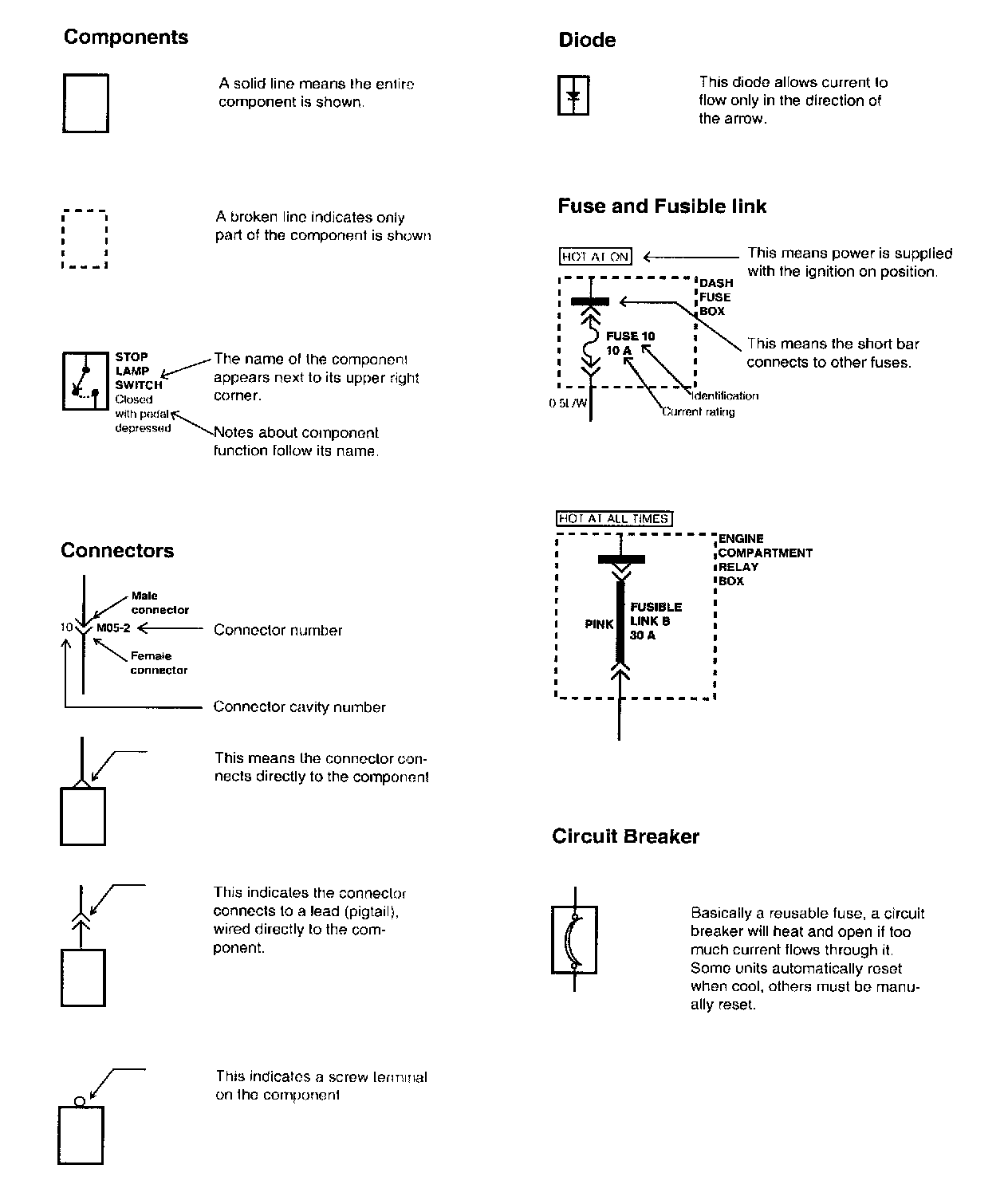

Symbols In Schematic Part 1:

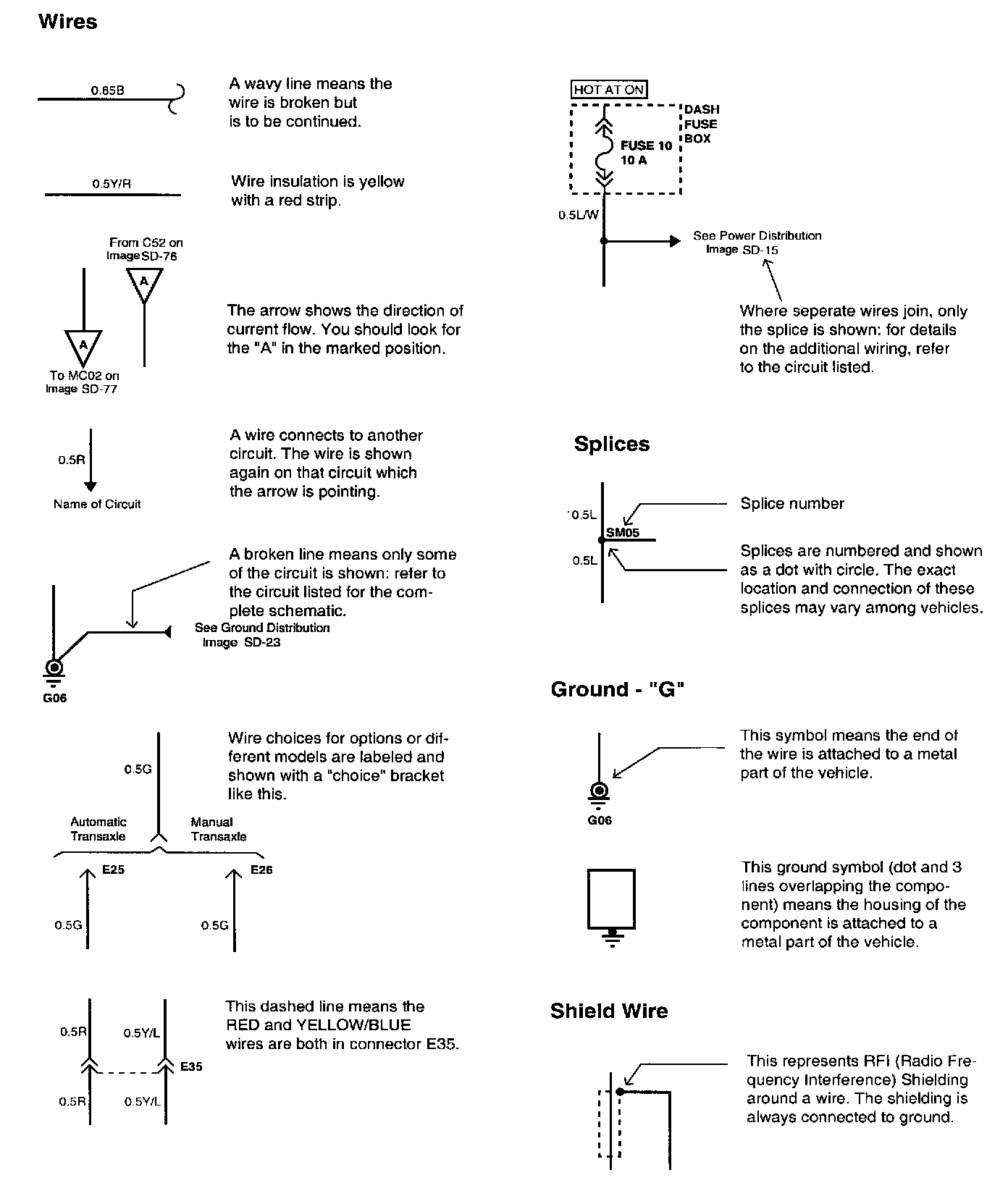

Symbols In Schematic Part 2:






Symbols (Part 3 Of 3):




The symbols and abbreviations explained here are used throughout the information.
