Multiple Junction Connector: Locations

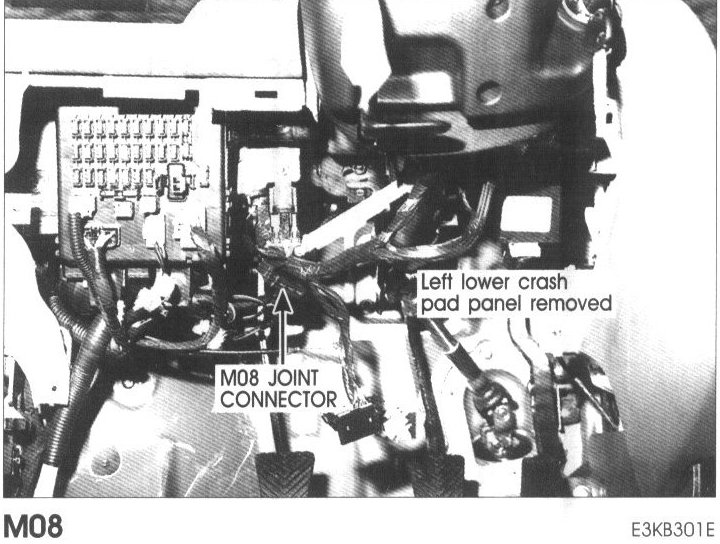

M08 Joint Connector:

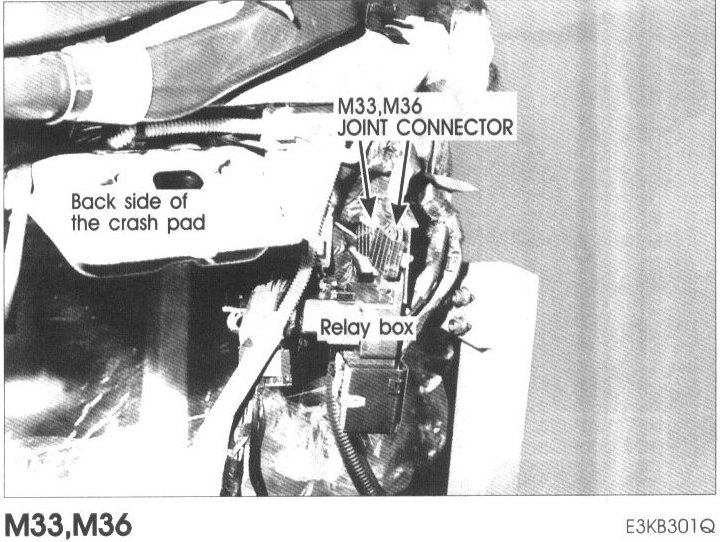

M33, M36 Joint Connector:



M45 Joint Connector:

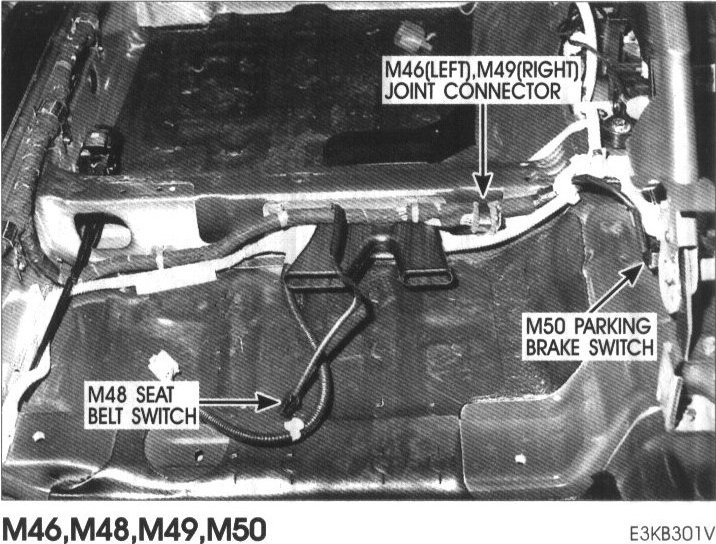

M46 (Left), M49 (Right) Joint Connector, M48 Seat Belt Switch And M50 Parking Brake Switch:

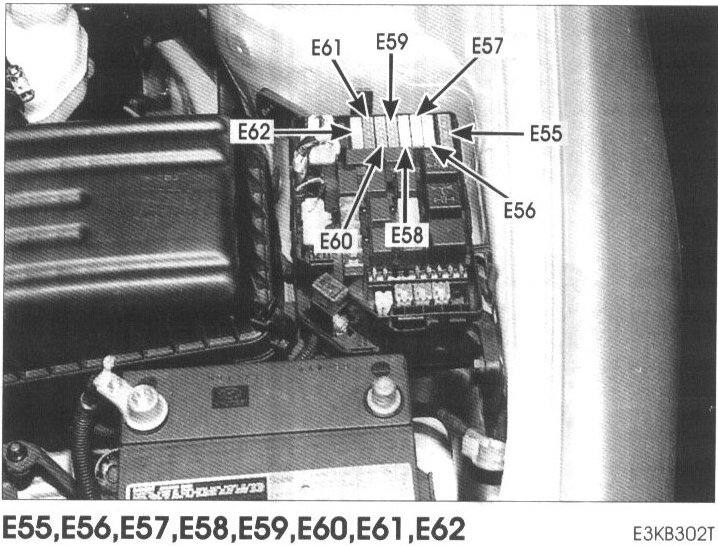

E55, E56, E57, E58, E59, E60, E61, E62 Joint Connector:

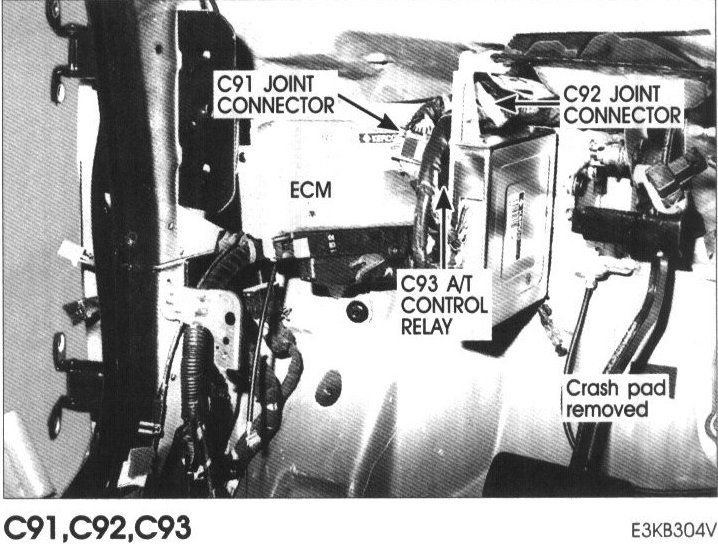

C91, C92 Joint Connector, C93 A/T Control Relay:
