Power Transistor HVAC: Locations

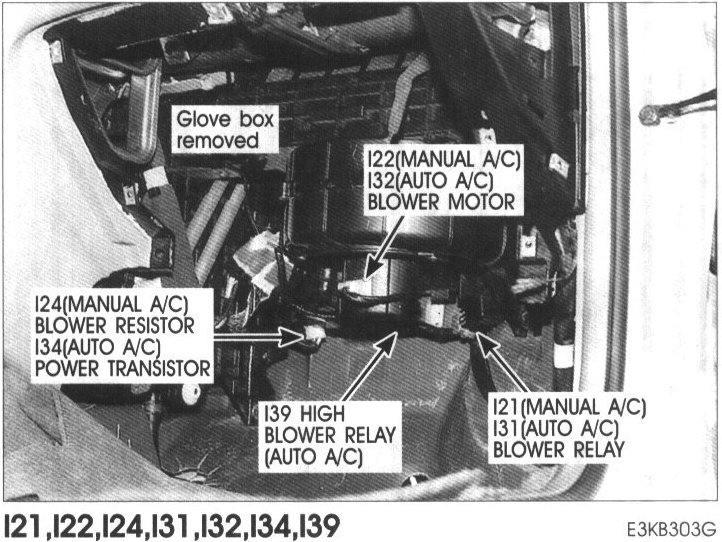

I21, I31 Blower Relay, I22, I32 Blower Motor, I24 Blower Resistor, I39 High Blower Relay:
